Dell Vostro 3480 - Page 32

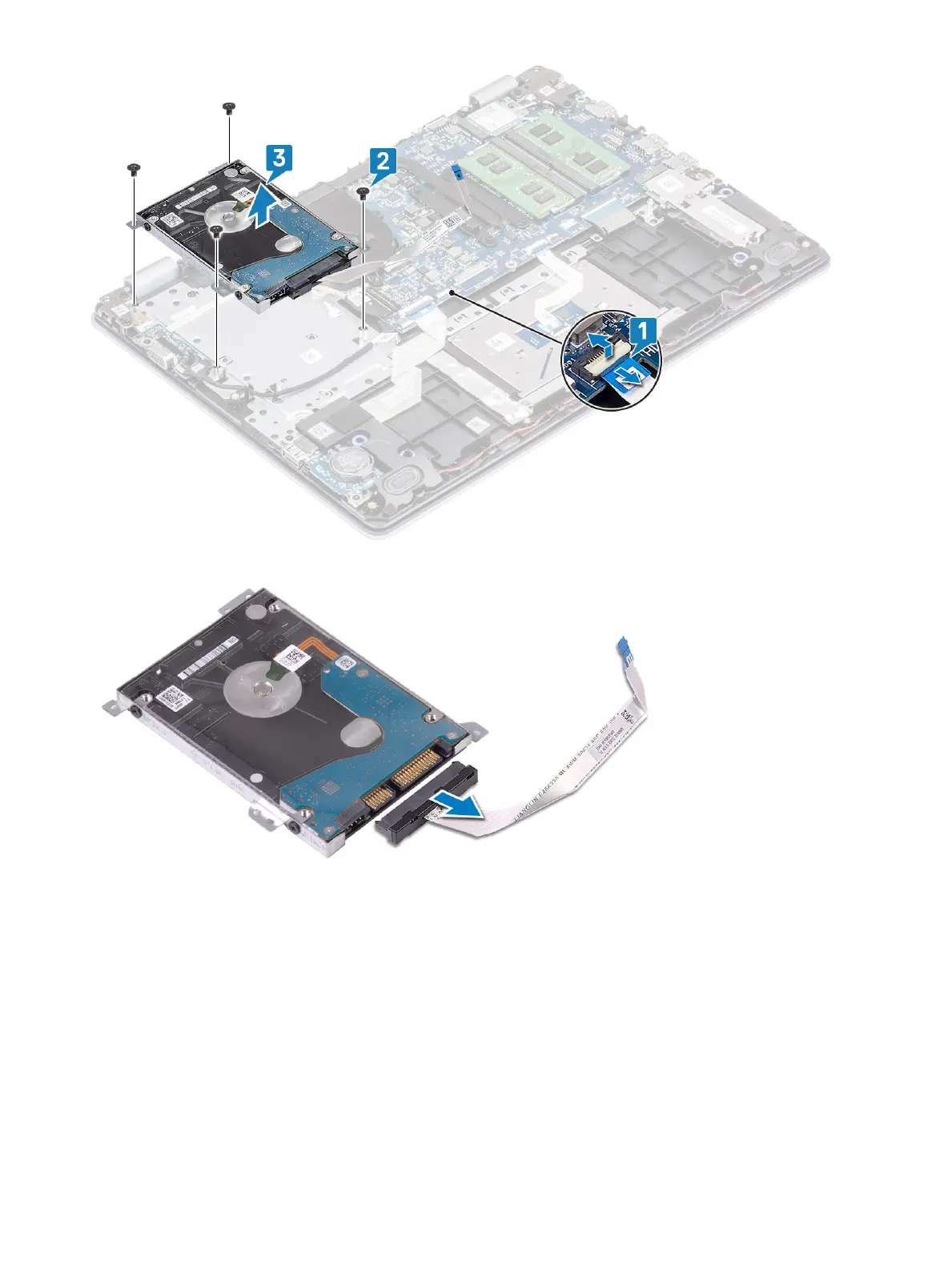

4 Disconnect the interposer from the hard drive assembly.
5 Remove the four (M3x3) screws that secure the hard drive bracket to the hard drive [1].
6 Lift the hard drive bracket o the hard drive [2].
32
Removing and installing components
