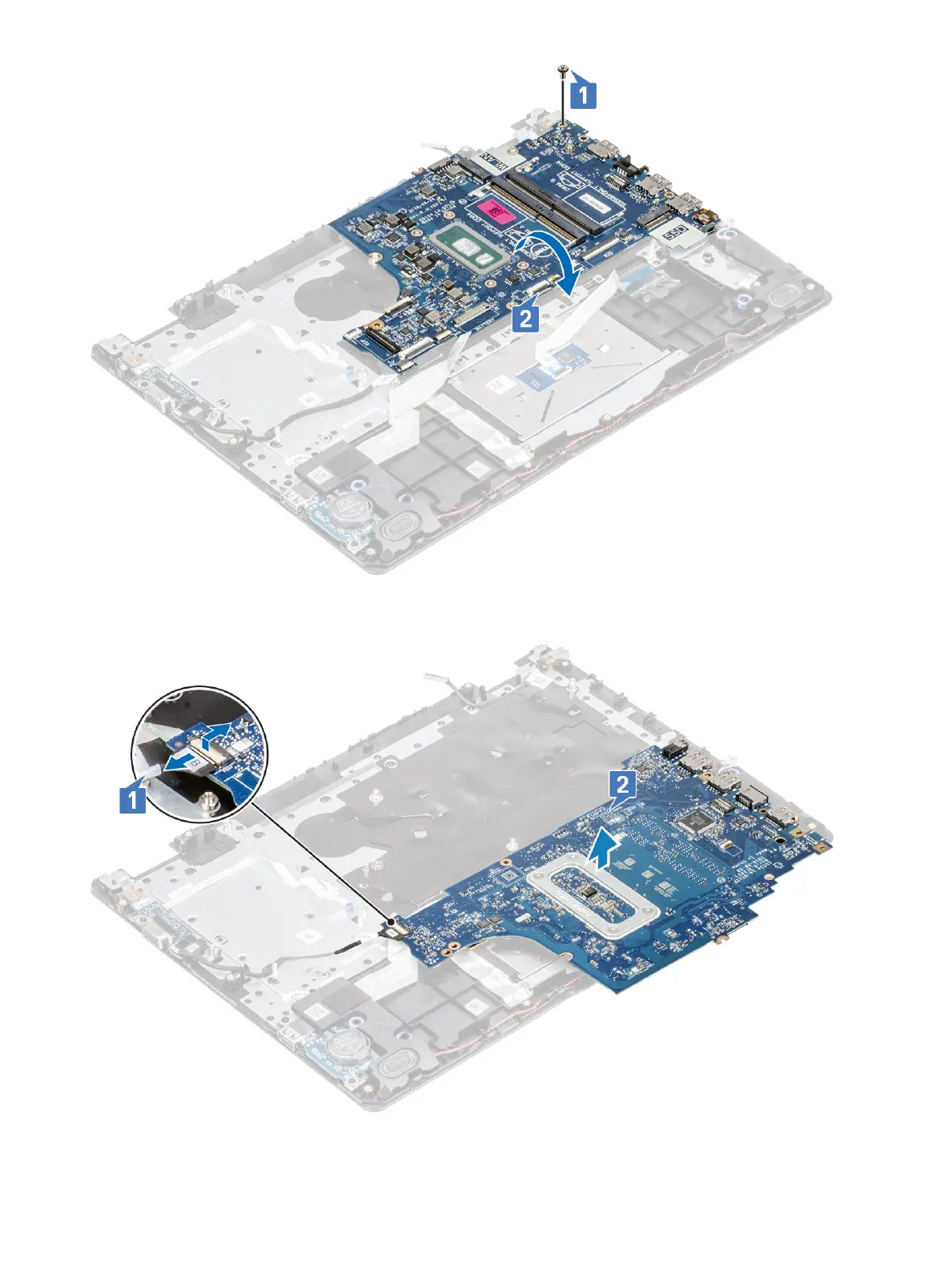

4 Disconnect the VGA daughterboard cable from the system board [1].

5 Lift the system board o the palm-rest and keyboard assembly [2].
