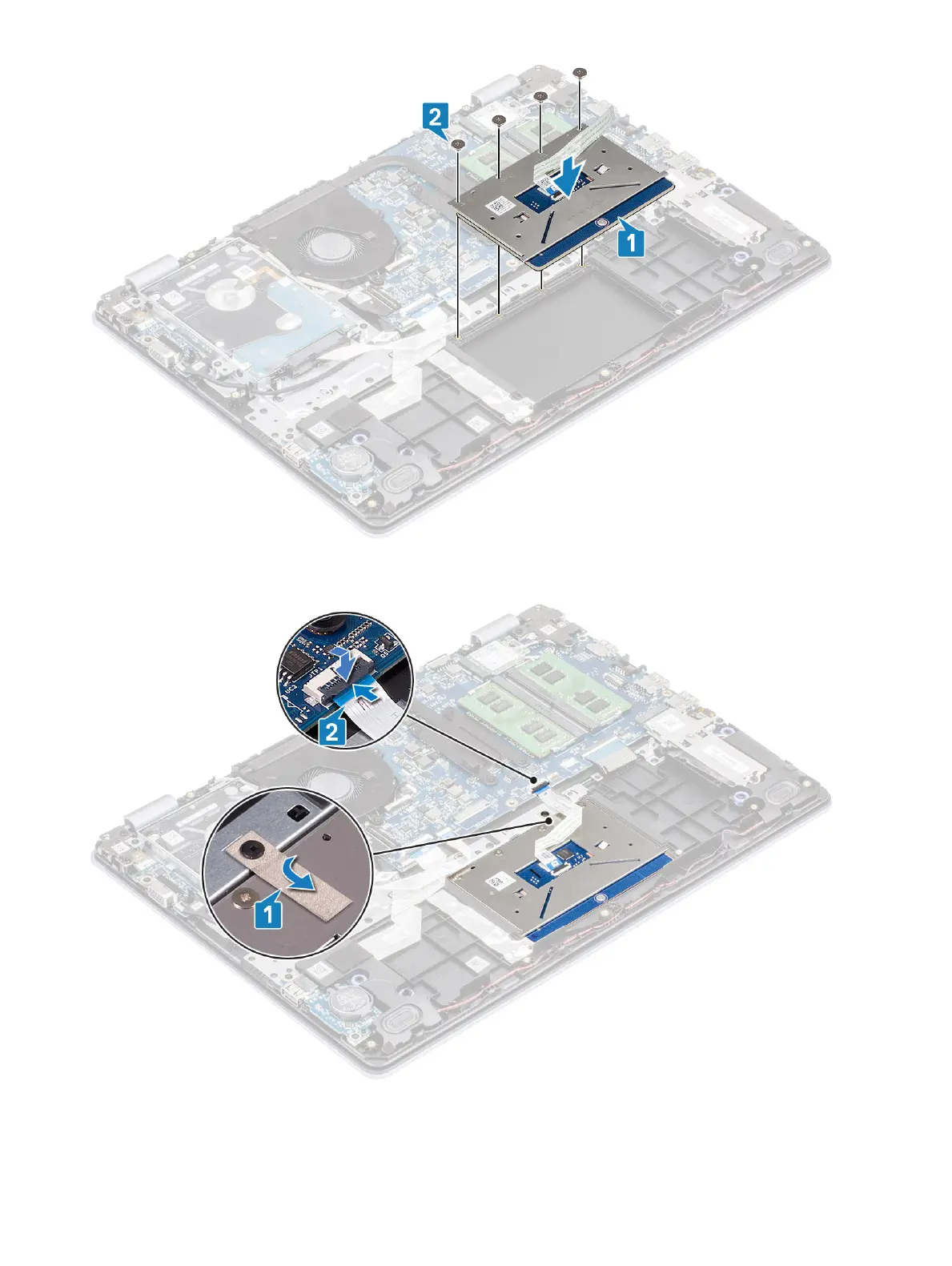

3 Adhere the tape that secures the touch pad to the palmrest and keyboard assembly [1].
4 Slide the touch pad cable into its connector on the system board and close the latch to secure the cable [2].
5 Place the touch pad bracket into the slot on the palmrest and keyboard assembly [1].
6 Replace the two screws (M2x2) that secure the touch pad bracket to the palmrest and keyboard assembly [2].
52
Removing and installing components
