2 Remove the SD memory card
3 Remove the base cover
4 Remove the battery
5 Remove the WLAN
6 Remove the SSD
7 Remove the hard drive assembly
8 Remove the system fan
9 Remove the heatsink
10 Remove the display assembly
11 Remove the display bezel
12 Remove the camera
Steps

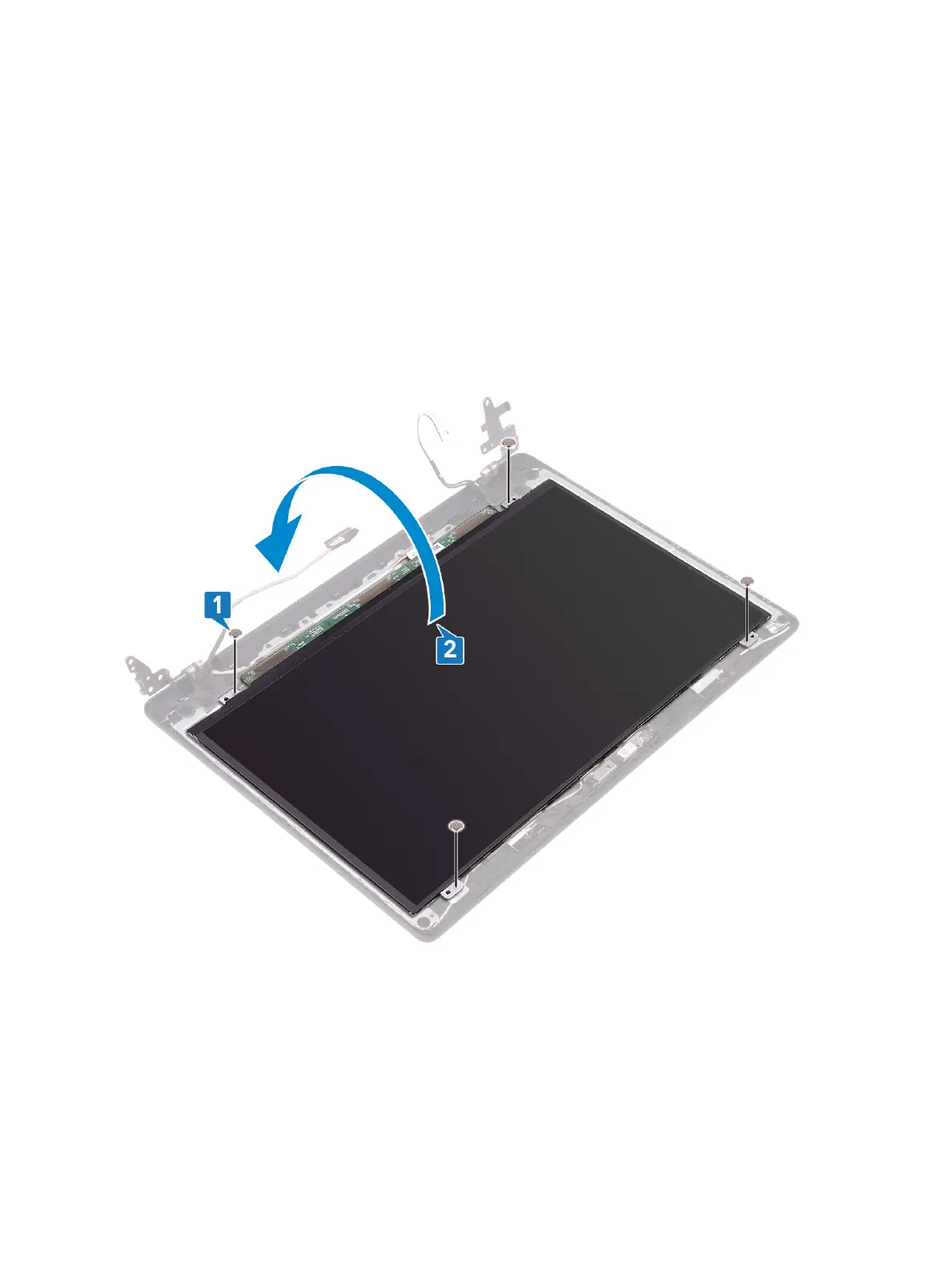

1 Remove the four (M2x2) screws that secure the display panel to the display back-cover and antenna assembly [1].
2 Lift the display panel and turn it over [2].
3 Peel the tape that secures the display cable to the back of the display panel [1].
4 Lift the latch and disconnect the display cable from the display-panel cable connector [2].
5 Lift the display panel away from the display back-cover and antenna assembly [3].
Removing and installing components
77
