Dell Vostro 3480 - Page 79

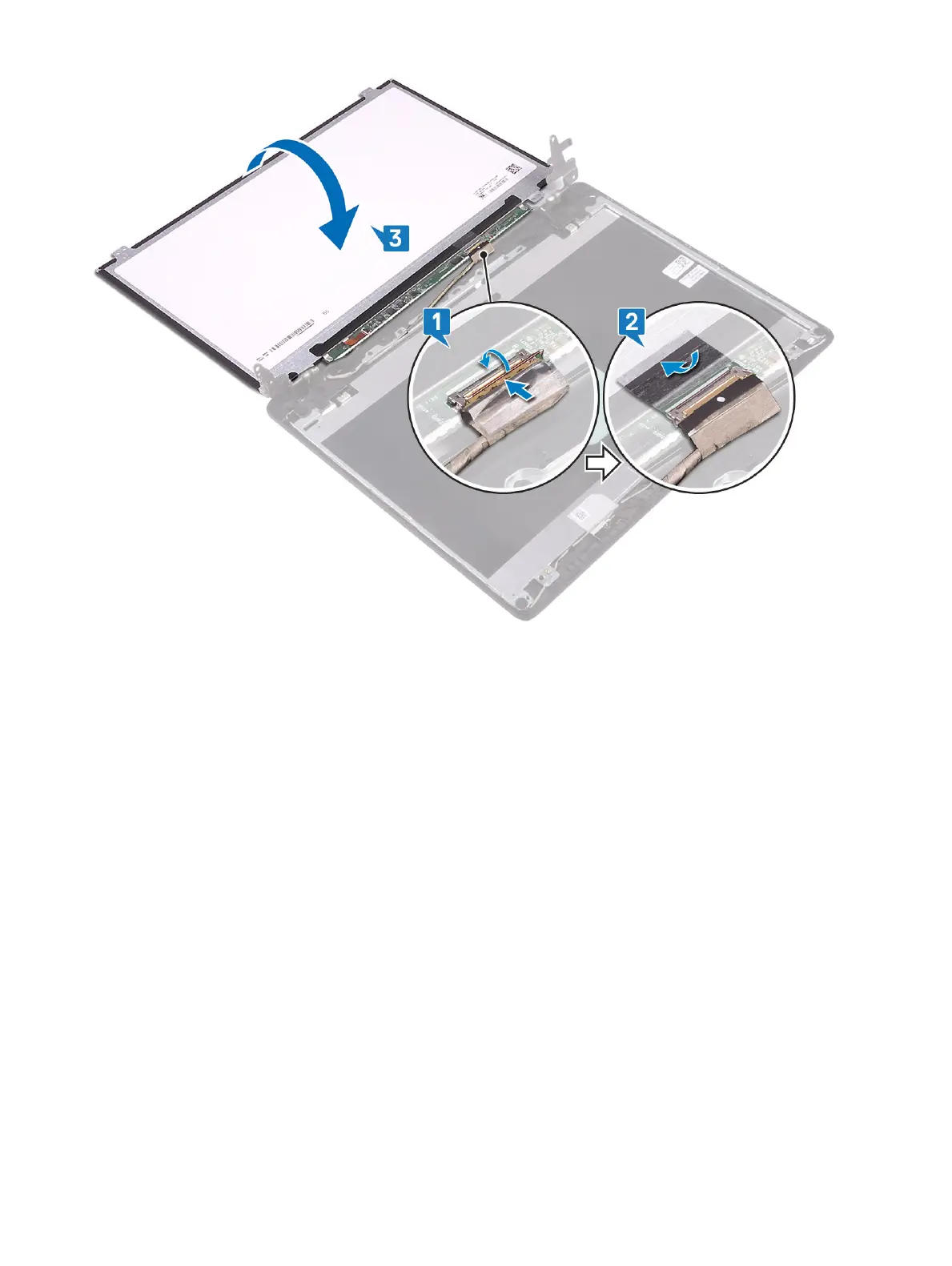

3 Turn the display panel over and place it on the display back-cover and antenna assembly [3].
4 Align the screw holes on the display panel with the screw holes on the display back-cover and antenna assembly [1].
5 Replace the four (M2x2) screws that secure the display panel to the display back-cover and antenna assembly [2].
Removing and installing components
79
