Chapter 3 Creating and Editing Screens
3-150 Revision May, 2010

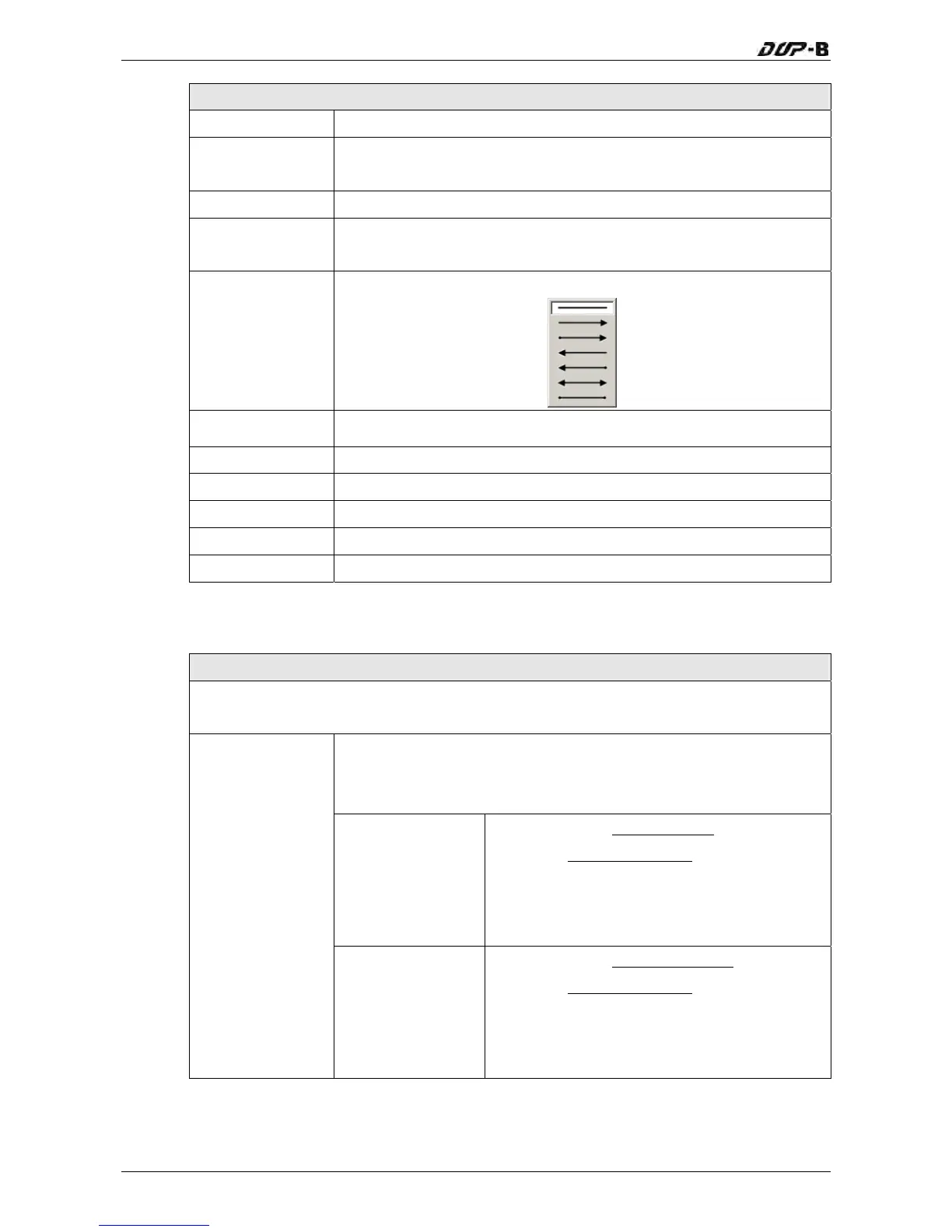

Property Description of Dynamic Line Element
Line Color Used to set the display color of the dynamic line element.
Blink
The element can blink to remind the user. (Please refer to Table
3-8-2 Property Description of General Buttons.)
Line Size The unit is Pixel and the range is within 1 ~ 8.
Data Format
It provides BCD, Signed Decimal, Unsigned Decimal and Hex four
kinds of data format to define the read memory content.
Line Style
There are following line styles can be selected.
Variable Position
(Please refer to the description of Read Address above)
Variable Color (Please refer to the description of Read Address above)
X Used to set X coordinate
Y Used to set Y coordinate
Width Used to set the element width
Height Used to set the element height
3.8.9.4 Dynamic Rectangle
Property Description of Dynamic Rectangle Element
The dynamic rectangle element, including element size and color can be changed and
moved depending on the value of the corresponding contact or register.
The address can be internal memory or the controller address.
(Please refer to Table 3-8-2 Property Description of General
Buttons.)
Read Address
The value of the Read Address
can be used
only when Variable Position
option is set to
Yes. It is used to represent the left-top
horizontal position (Left) of the element, i.e.
the first X coordinate on the screen (X
1
).
Read Address
Read Address +1
The value of the Read Address+1
can be used
only when Variable Position option is set to
Yes. It is used to represent the left-top vertical
position (Top) of the element, i.e. the first Y
coordinate on the screen (Y
1
)..
