3.8.13.3 Alarm Frequency Table

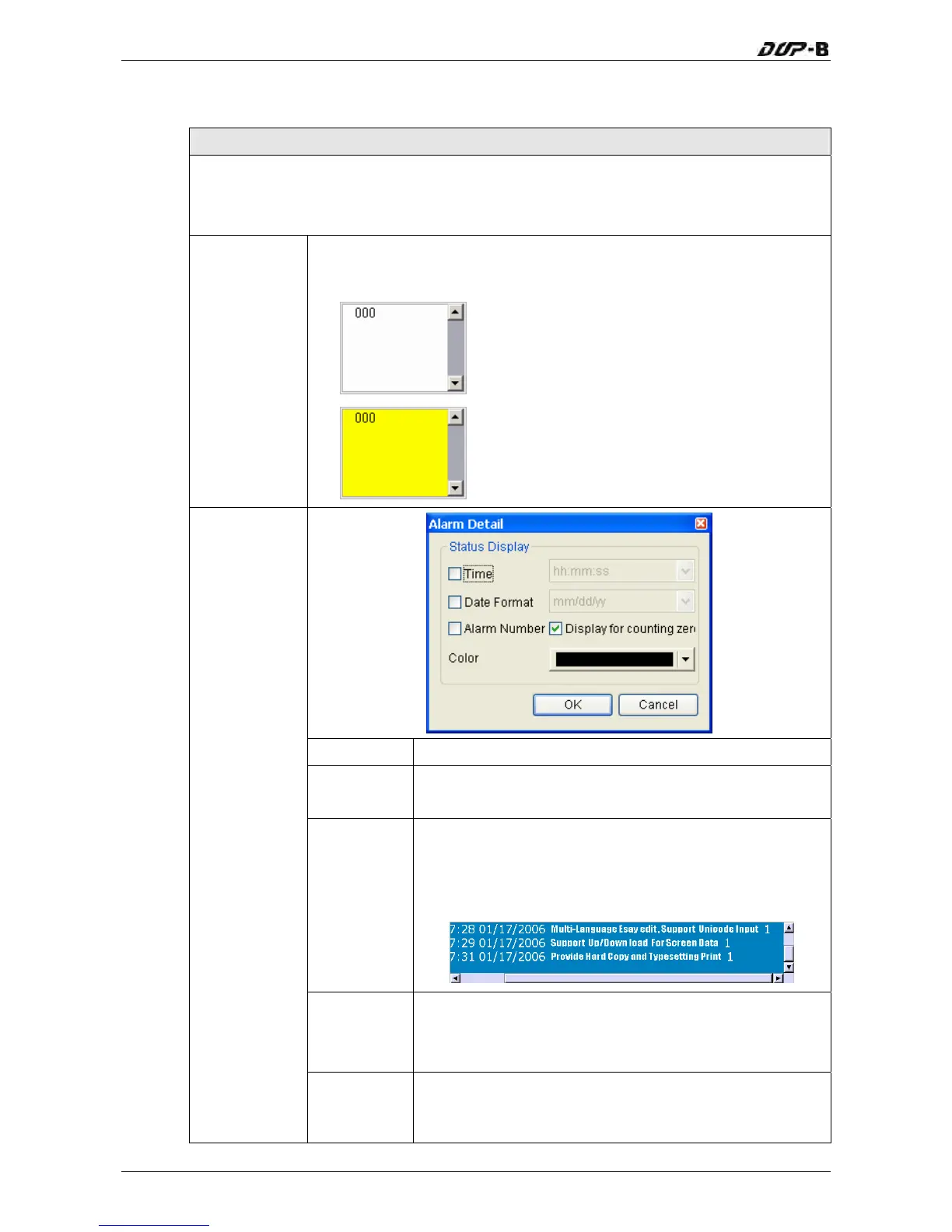

Property Description of Alarm Frequency Table Elements
HMI will monitor and read the read address in a fixed time automatically. If some
certain Bit contact of the address is ON or OFF, the ON or OFF frequency of the contact
will be converted to Alarm Frequency Table element and display on the screen.
Background
Color
The background color of the following two elements is set to white
and yellow respectively.
The background color is set to white.
The background color is set to yellow.
Time Format
Provide HH:MM:SS, HH:MM two kinds of formats.
Date Format
Provide MM/DD/YY, DD/MM/YY and DD.MM.YY
three
kinds of formats.
Alarm
Number
If this option is selected, when the alarm occurs, the
time and date when the alarm occurred will also be
shown in front of the alarm message. Please refer to the
figure below:
Display for
Counting
Zero
Use this option to decide if show the message on the
Alarm Frequency Table element or not when the
occurring times of the alarm message is zero.
Setting
Color
When Time and Date these two options are selected, the
user can designate the display color by using this
