Chapter 3 Creating and Editing Screens
4. Once error occurs, the correspondent message will display in output window. The
user can click the error message and ScrEdit will switch to error element window
automatically.
3.10.2 Download Screen & Recipe
The user can download screen data and recipe to HMI by clicking Tools > Download Screen
& Recipe or clicking
icon directly or pressing Ctrl + F8.
If PC cannot connect to HMI, the error messages will be displayed and warn the user (Fig.
3-10-1, Fig. 3-10-2, Fig. 3-10-3 and Fig. 3-10-4). The user can set download interface by using
the following methods:
1. Clicking Options > Configuration or
2. Clicking Options > Environment. The download interface can be USB or RS-232.

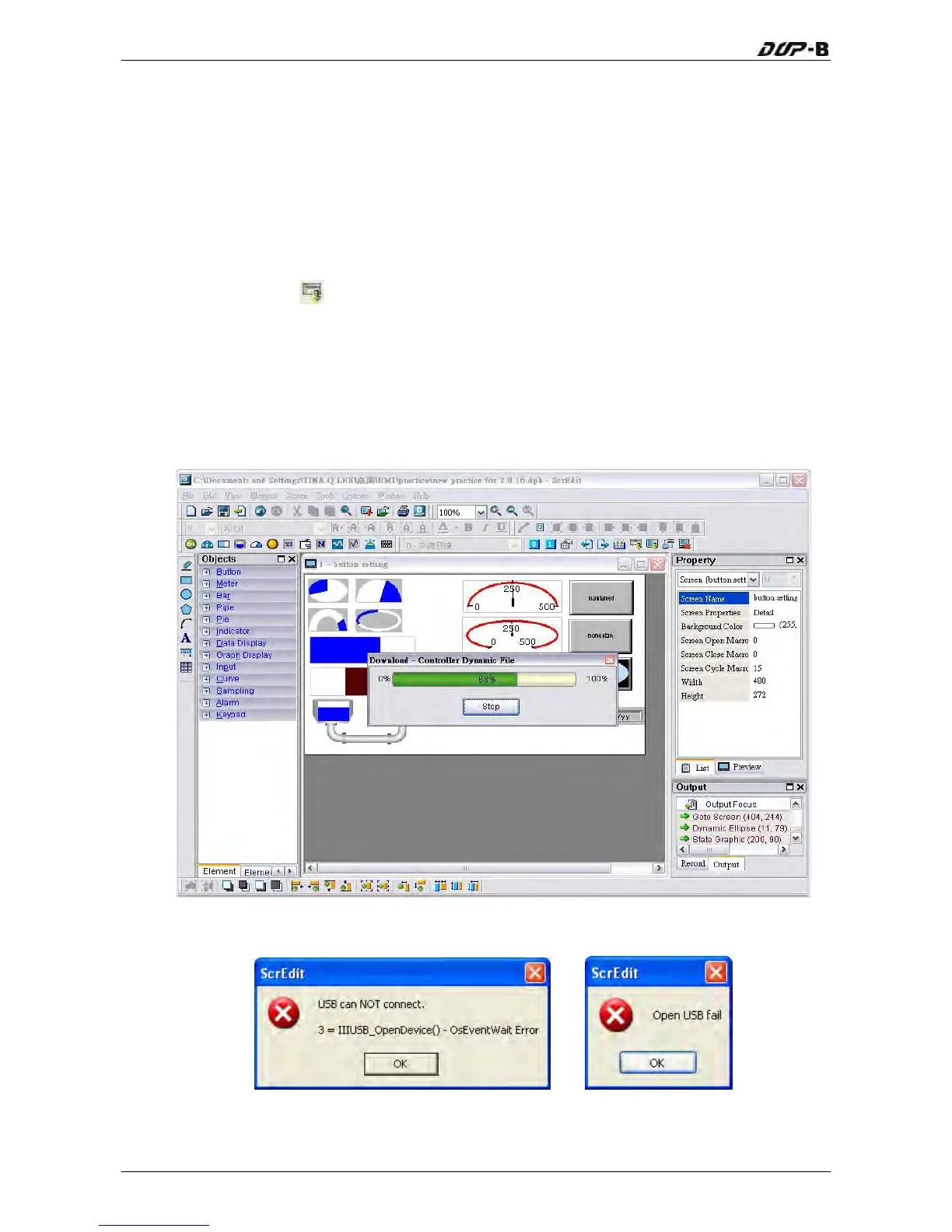

Fig. 3-10-1 Start download (the progress will be from 0 to 100%)
Fig. 3-10-2 USB open error message
3-218 Revision May, 2010
