Delta Electronics DUP-B Series User Manual

Chapter 3 Creating and Editing Screens

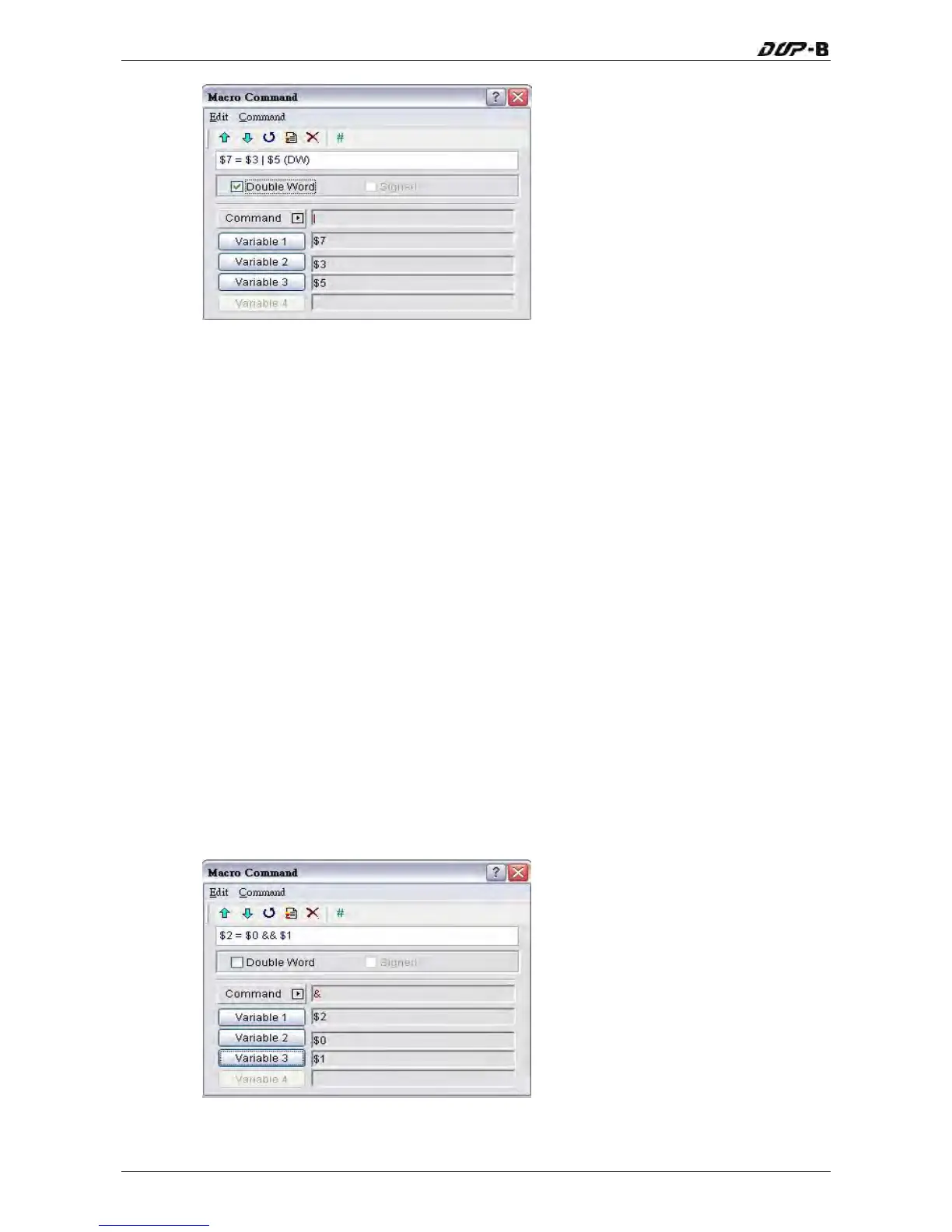

$7 = $3 | $5 (DW) Store the result of $7. $3 = F000F000H, $5 = 0F000F00H, then $7
= FF00FF00H.
 && (Logical AND operation)
Equation
Var1 = Var2 && Var3
Explanation
Perform the logical AND operation on Var2 and Var3, and save the result of this
calculation in Var1.
Remark
 The calculation result can be stored as WORD and DWORD.
 Var1 can be internal memory only. Var2 and Var3 can be internal memory or
constant.
Example
Perform the logical AND operation on $0 and $1, and save the result in $2 (this is an
operation of unsigned 16-bit data)
$2 = $0 && $1 Store the result of $2. $0 = F000H, $1 = 0F00H, then $2 = 0000H.
3-322 Revision May, 2010
