Delta Electronics DUP-B Series User Manual

Chapter 3 Creating and Editing Screens

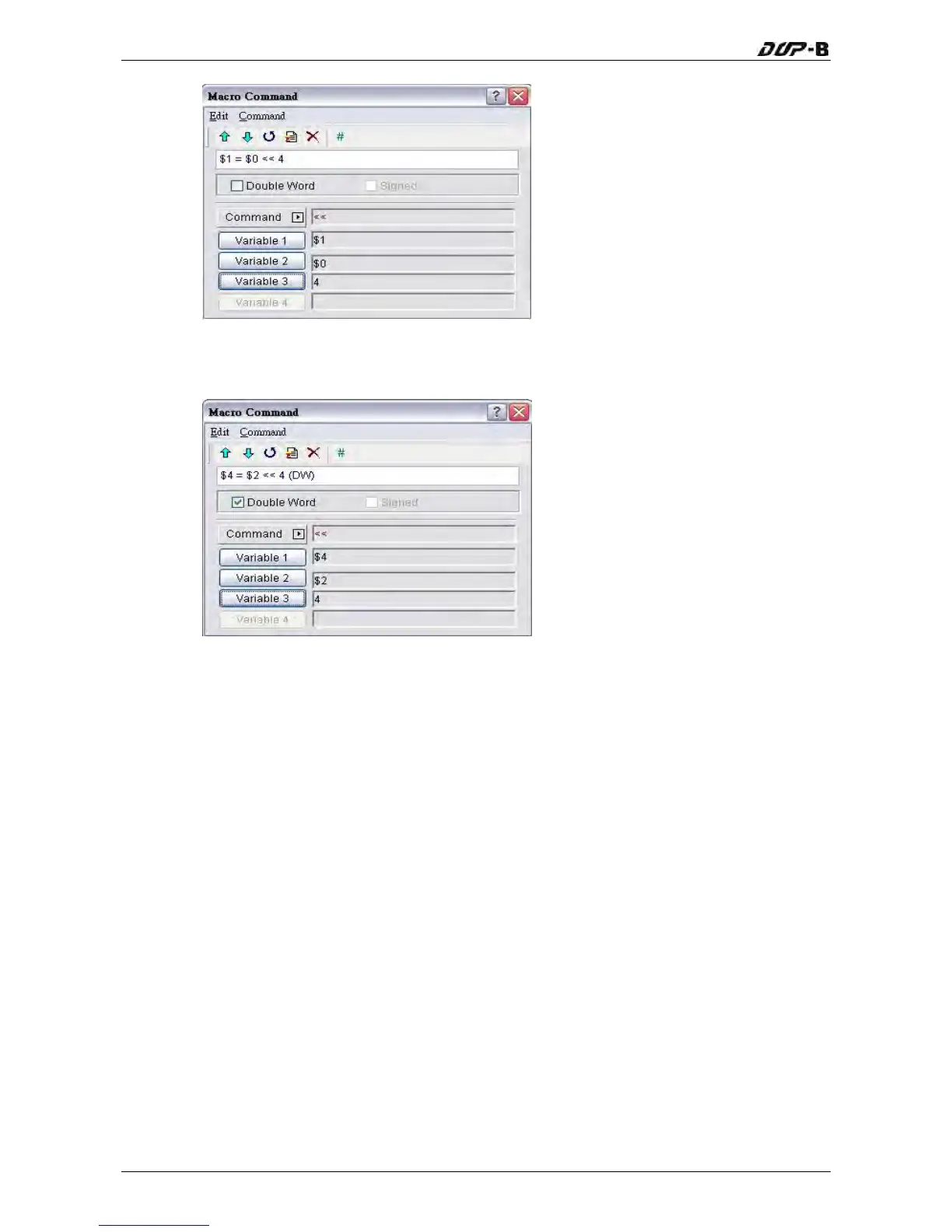

$2 = F1000000H
Shift-left 4 bits and becomes $4 = 10000000H (this is an operation of unsigned
32-bit data).
 >> (SHR, Logical Shift-right operation)
Equation
Var1 = Var2 >> Var3
Explanation
Shift Var2 (WORD/DWORD) data to right (number of bit is Var3). The result of this
calculation is stored in Var1.
Remark
 The calculation result can be stored as WORD and DWORD.
 If the shift number of bit is more than the address itself, the number out of
range will be discarded.
 Var1 can be internal memory only. Var2 and Var3 can be internal memory or
constant.
3-326 Revision May, 2010
