Appendix A List of Functions Added

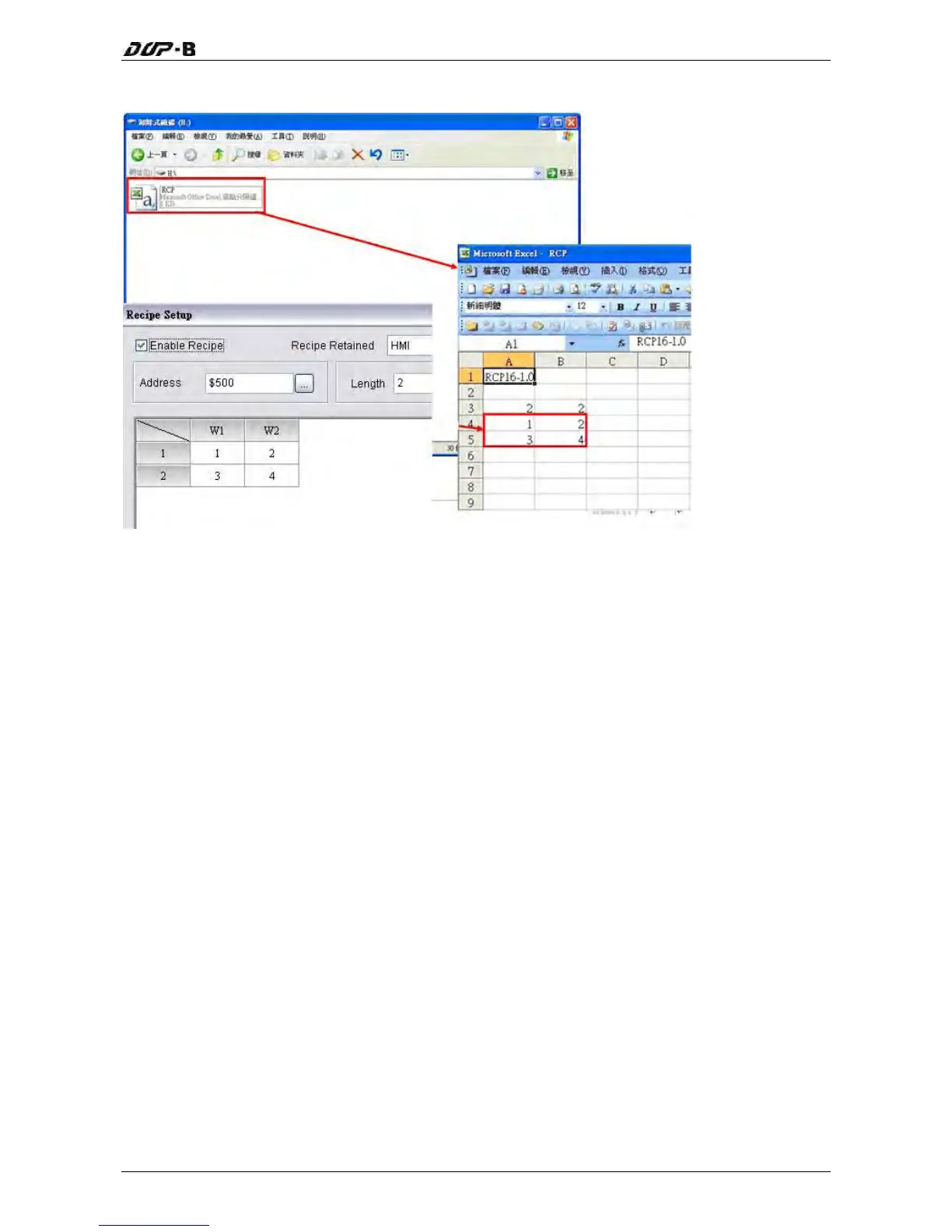

The recipe file which is exported to the USB disk.
STATIONON/STATIONOFF
The user can use STATIONON / STATIONOFF macro commands to enable / disable the
communication between HMI and the designated external controllers.
Equation: STATIONON (Var1, Var2)
STATIONOFF (Var1, Var2)
Var1 and Var2 can be an internal memory or a constant.
Var1: Communication port
0: COM1
1: COM2
2: COM3
Var2: PLC Station number
Revision May, 2010 A-5
