Appendix C Multi-Link Connection

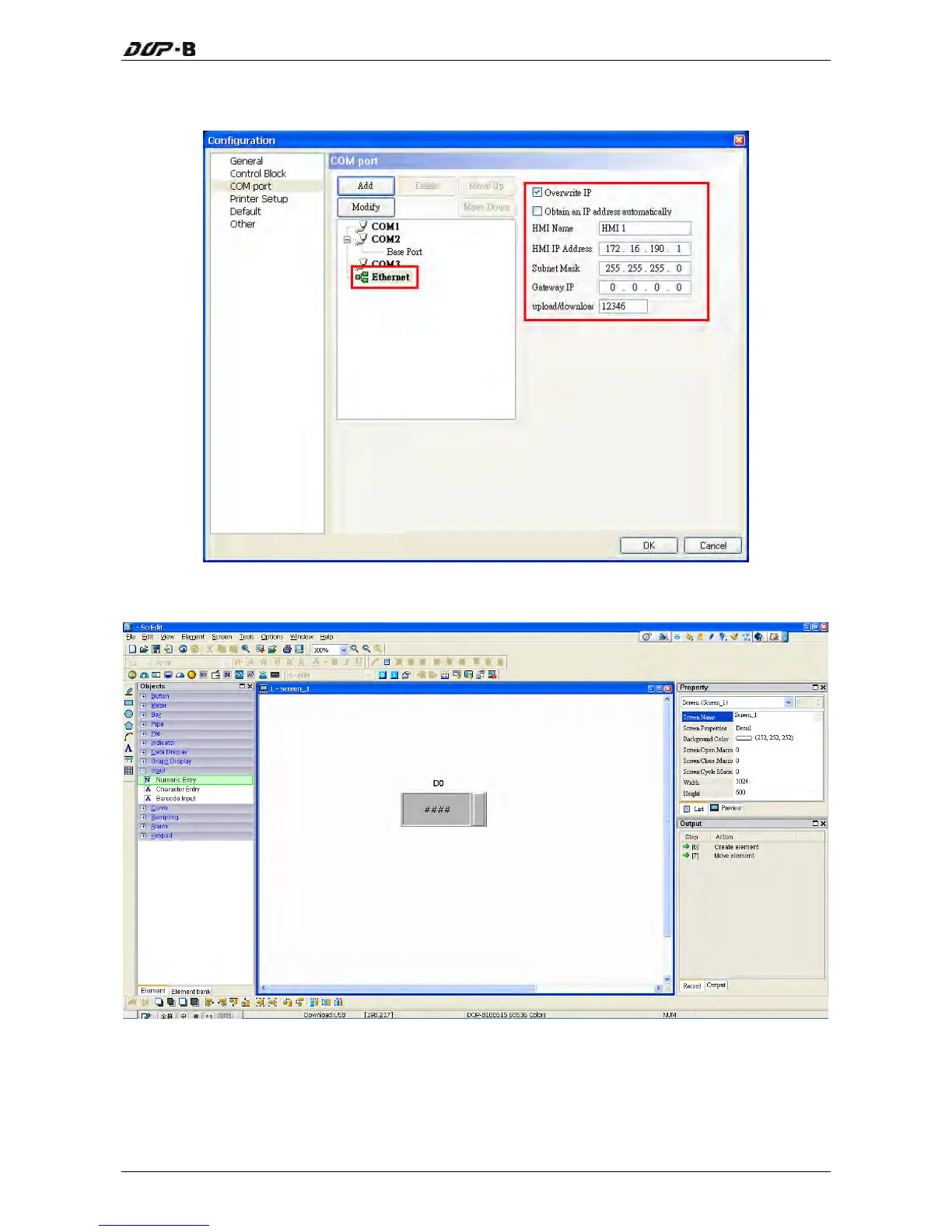

5. Set HMI IP address for Ethernet to 172.16.190.1 and press OK to complete the settings.
6. Create a Numeric Entry element on the screen so as to read the internal register D0 of PLC 1.
7. After finishing the element settings, perform the compile operation and download the
screen data to HMI 1.
Revision May, 2010 C-3
