Ethernet Communication Module IFD9506
DVP-PLC Operation Manual
5 Setting Software
This section gives instructions on how to set IFD9506 by DCISoft and explanations on each setup page.
IFD9506 is set by UDP port 20006; therefore, you have to be aware of the relevant settings of the firewall. See
the explanations below on the software.
5.1 Setting Communication & Searching for Modules in DCISoft
Broadcast search

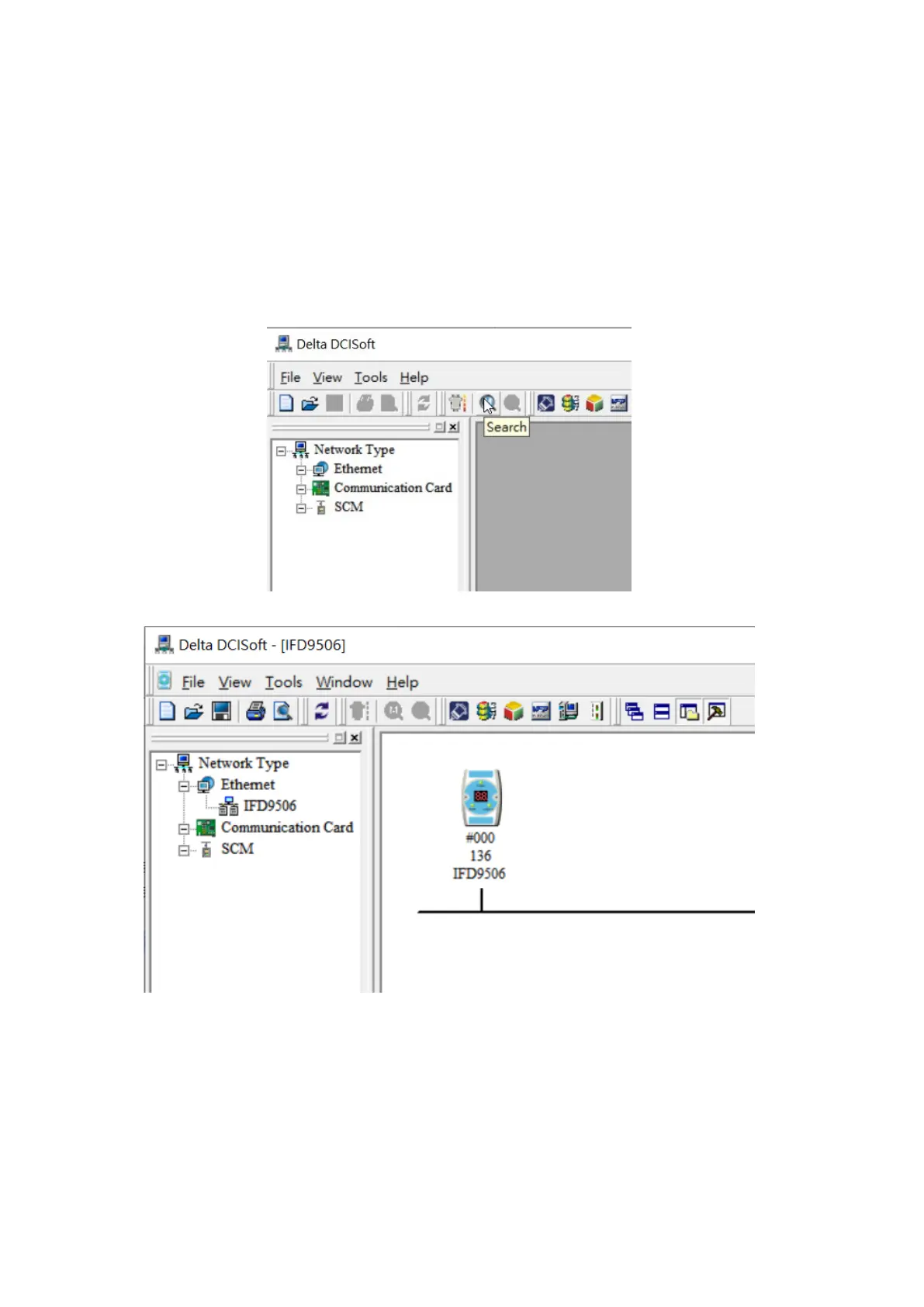

1. Open DCISoft on the PC and click the “IP Search” icon.
2. Yo u will see the network modules found.
3. Double-click the module to be set to enter the setup page. The first page Overview is the basic status of the
module.
