Delta Electronics IFD9506 User Manual

Ethernet Communication Module IFD9506
DVP-PLC Operation Manual
53
10 Application Examples

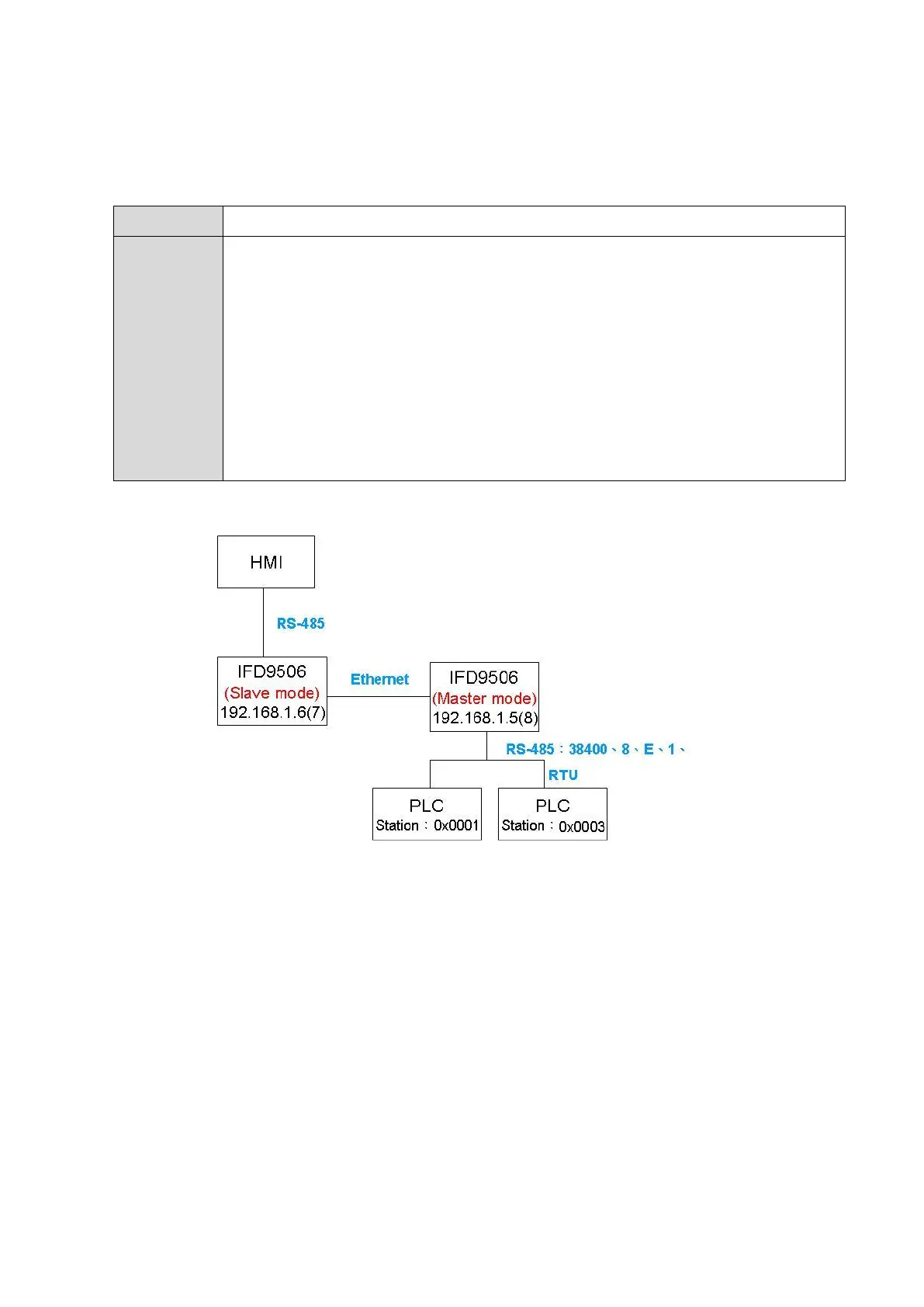

10.1 Application of Modbus Slave
Application
HMI controls the remote Ethernet device through IFD9506.
Steps
(1) HMI sends out the instruction.
(2) Set the IP of slave IFD9506 t
o “192.168.1.6”, station address to “7” and communication
format to “38400, 8, E, 1, RTU”.
(3) In the IFD9506 serial slave mode table, set the station addresses of the two devices
to
“1” and “3”, both of their relay IP addresses to “192.168.1.5”.
(4) Set the IP of IFD9506 in master mode to “192.168.1.5", station address to “8” and
c
ommunication format to “38400, 8, E, 1, RTU”.
(5) HMI master and IFD9506 slave transmit data through RS-485.
(6)
I
FD9506 slave and IFD9506 master transmit data through Ethernet.
(7)
T
he RS-485 terminal on IFD9506 master is connected to two devices, which are PLC
at station address 0x0001 and PLC at station address 0x0003. Assume t
he
c
ommunication format is “38400, 8, E, 1, RTU”.
1. The wiring:
2. Setting IFD9506 slave
Step 1: Open “Basic” page, and select “Serial slave” in “Master configuration”.
Step 2: Enter the device addresses and the relay IP addresses on “Serial Slave Mode” page.
