Ethernet Communication Module IFD9506
DVP-PLC Operation Manual
25

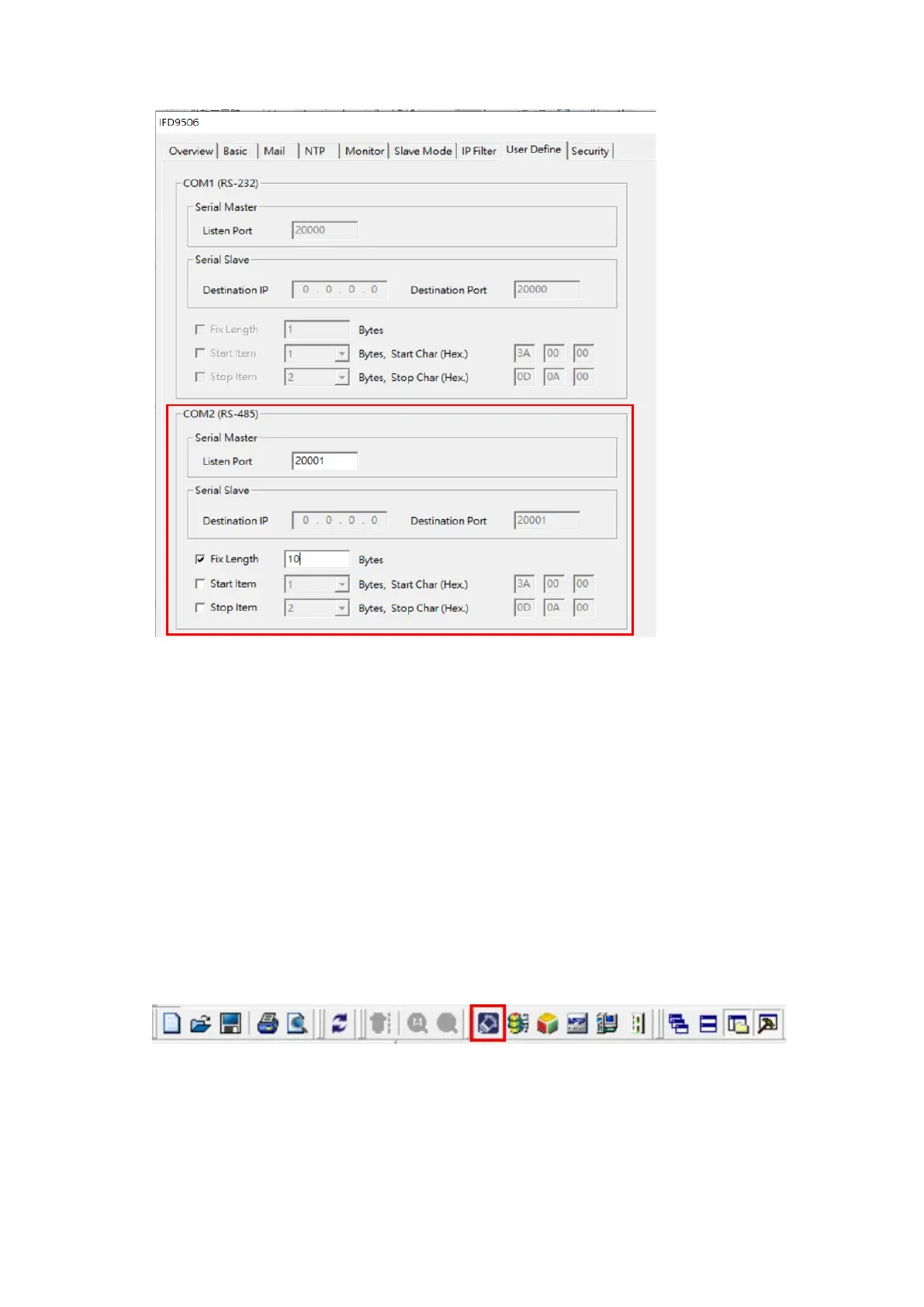

1. Listen Port/Destination Port:
Range: 1024 ~ 65535.
If IFD9506 works in serial master mode, you should set its
own listening port number which is used
by Ethernet client/master to make the connection.
If IFD9506 works in serial slave mode, you should set the IP address of Ethernet
service /slave and
the destination port number which is open to make the connection.
2. Refer to Section 6.4 for packet condition setup.
5.8 Virtual COM Port
Virtual COM port converts the data transmitted to the serial port (RS-232/RS-485) to Ethernet.
1. Select “User Define COM1/2” in COM Protocol Setup field.
2. Switch to “User Define” page to set listen port number.
3. Open Virtual COM setup page.
