Ethernet Communication Module IFD9506
DVP-PLC Operation Manual

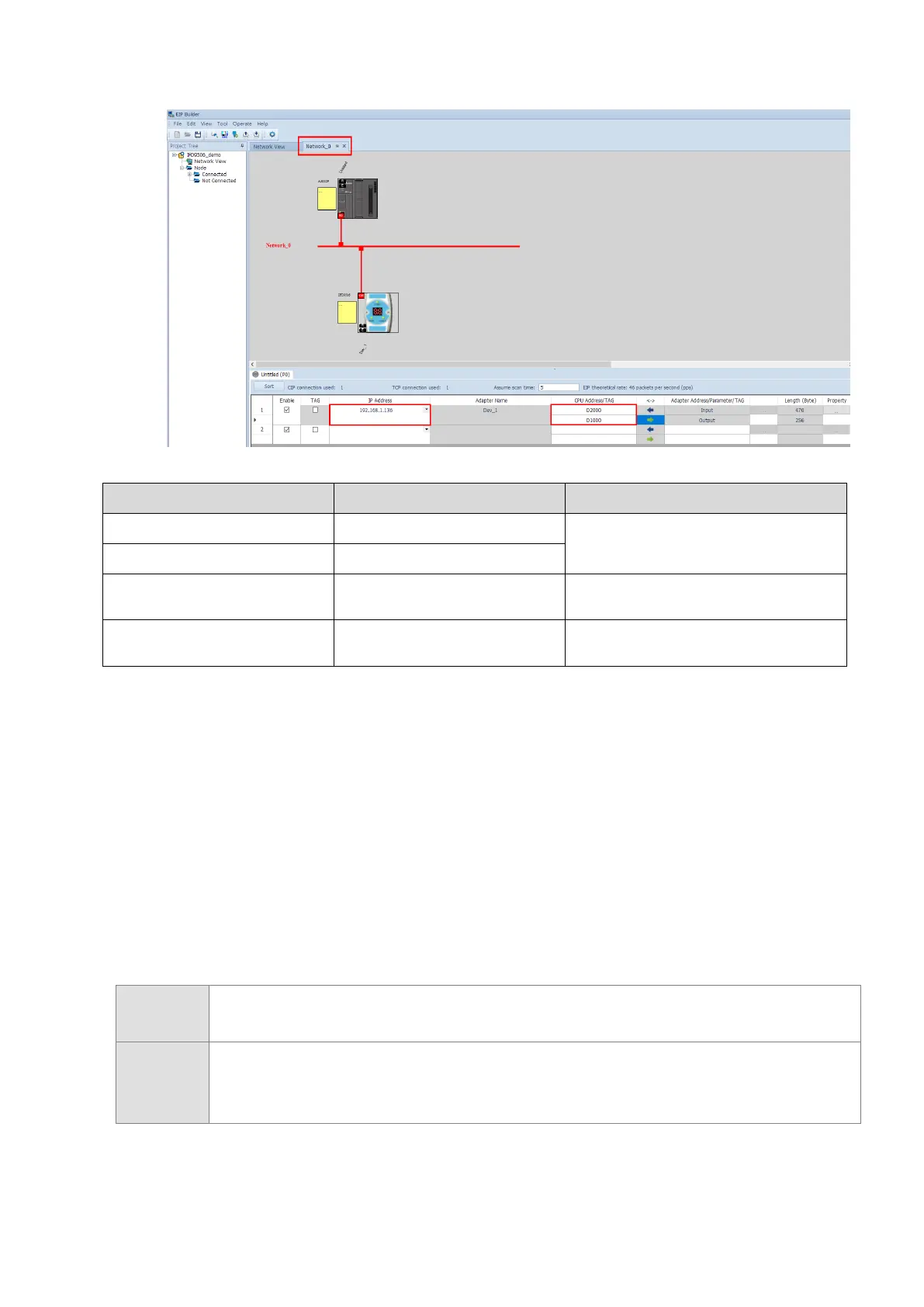

Data mapping area in AS300
Data storage area in IFD9506 Description
OUTPUT [0 - 127]
System reserved area
INPUT [0 - 127]
D2128 - D2227 INPUT [128 - 227]
The area where the contents of Word
device monitoring table are
D2228 - D2234 INPUT [228 - 234]
The area where the contents of Bit
device monitoring table are
7. The device monitoring tables can be opened to verify the result in ISPSoft. The data in D2128 of AS300
s
hould be the same as the data in the first device on the Word device monitoring table of IFD9506, and so on.
The registers after D2228 correspond to those on the Bit device monitoring table.
Notes:
When the device monitoring table reading fails, the data received by the Ethernet/ IP master maintains
the last-received value.
When using a non-Delta Ethernet/ IP master, please download the latest version of IFD9506 EDS file
(Electronic Data Sheet) from Delta official website.
When using a non-Delta Ethernet/ IP master, please set the data unit to INT (2 bytes) for easy
identification of data.
7.4 Ethernet/IP Operation through Explicit Message
Description
The explicit message is sent with the AS300 EIPRW instruction and the Modbus instruction is
sent to the serial slave.
Steps
1. Set up the rotary switches of IFD9506;
2. Start the project in ISPSoft;
3. Edit EIPRW instruction.
1. If E
thernet/ IP master is to write data into a serial slave, only the explicit message can be used.
2. Use API2208 EIPRW for AS300.
(Refer to AS Series Operation Manual for the explanation of the instruction.)
