Delta Electronics NH Plus Series User Manual

3
Η

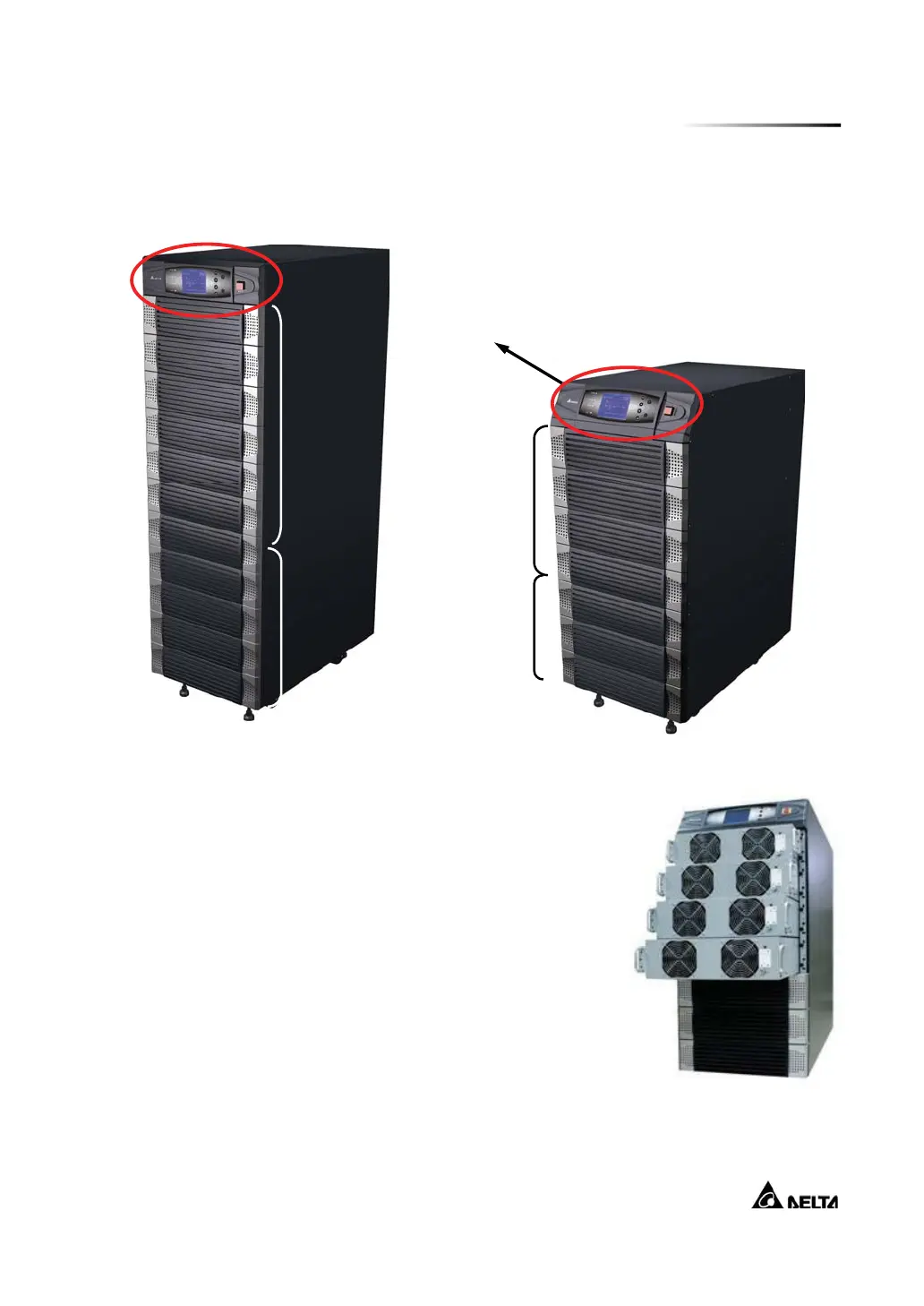

General View
3-4
3-2 Function Introduction
3-2-1 Front Panel
1. LCD Display and Control Panel / Status LED indicators
- UPS status and message display.
- Parameter settings and button control.
- UPS startup / shutdown.
- EPO: Emergency power off.
For more details, refer to Section 6-1.
2. Power Modules
- Bezel can be easily removed for maintenance.
- The maximum capacity of each power module is 20KVA
and the height is 3U (132mm).
- The capacity can be expanded at most 6 modules in
120kVA cabinet.
- Hot swap function for module replacement.
3. I/P and O/P Protectors
- There are four protectors: Input, Bypass, Manual Bypass
and Output.
- All protectors belong to no-fuse breaker type.
z LCD Display
z Control Panel
z Status LED Indicators
Power
Modules
I/P and O/P
Protectors
