3-2-4 Power Module
Each power module is an independent 20kVA/16kW unit, consisting of a power factor
corrected rectifier, a battery charger and an inverter, with associated monitoring and
control circuitry.
Fail OnOff
Status
Locking Latch

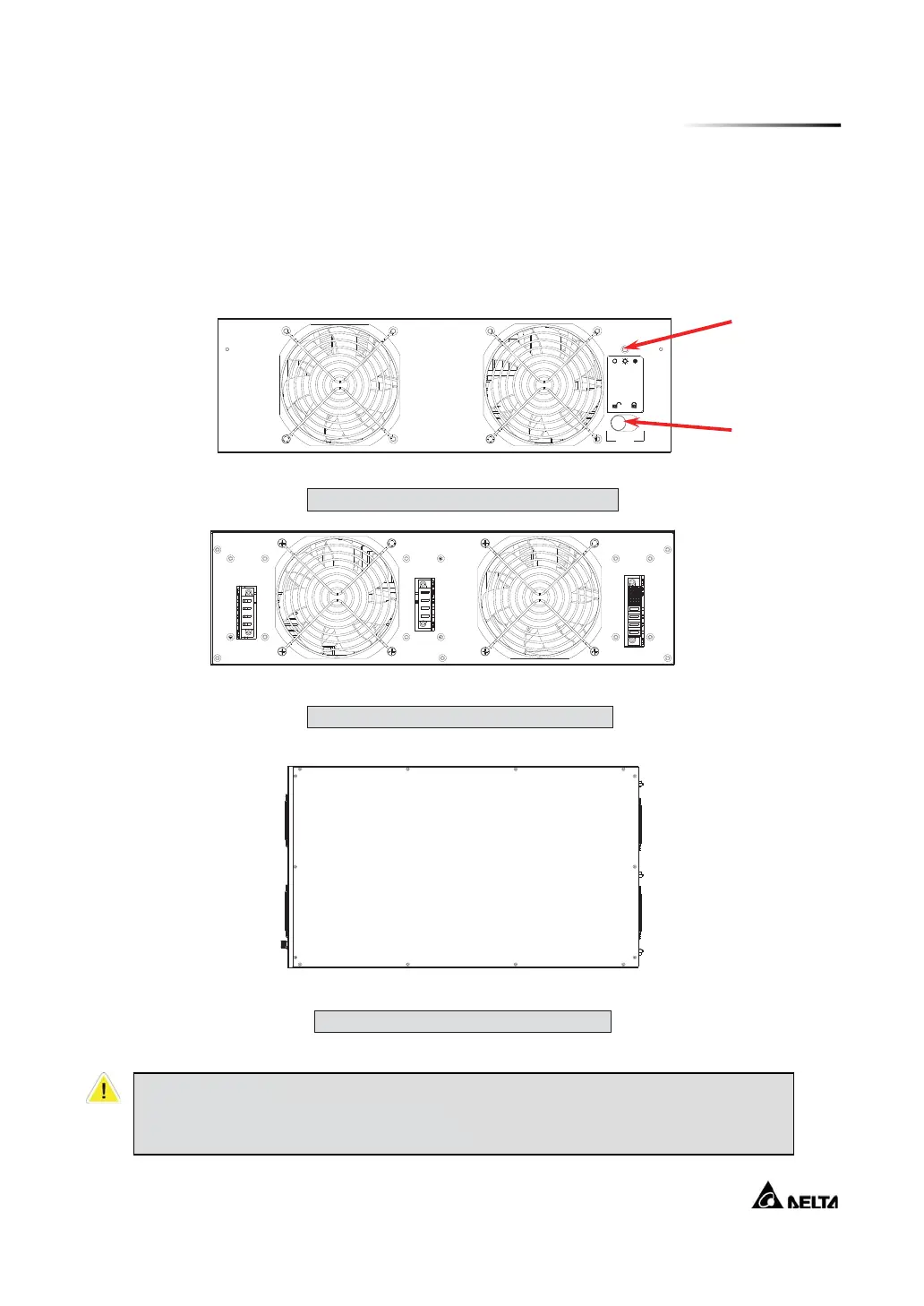

Fig. 3-7 Front View of Power Module
Fig. 3-8 Rear View of Power Module
Fig. 3-9 Top View of Power Module
CAUTIONS!
Power Modules are heavy (~30kg).
Two people are required for handling.
