Modulon NH Plus Series 3-13
3-3-3 RS232 Port
Use a RS232 cable to connect the computer.
DELTA develops various powerful software such as “UPSentry
Smart 2000” and “InsightPower Manager” to integrate the UPS
into your system. For more details, refer to Chapter 7.
3-3-4 Parallel Port
For redundancy or expansion installation, you simply connect two UPSs via a parallel
communication cable.
3-3-5 Smart Card Slot
The NH Plus Series UPS provides two smart slots. DELTA develops many powerful smart
cards for various applications. There are 5 accessories available as below.
Please contact your local dealer or agent for orders.
Smart Card Part No.
SNMP Card 3915100120-S
Programmable Relay
I/O Card
3915100147-S
ModBUS Card 3915100422-S
Environmental Sensor 3915100423-S
SNMP+Switching Hub 3915100514-S
1
6
2
7
3
8
4
9
5
TX
RX

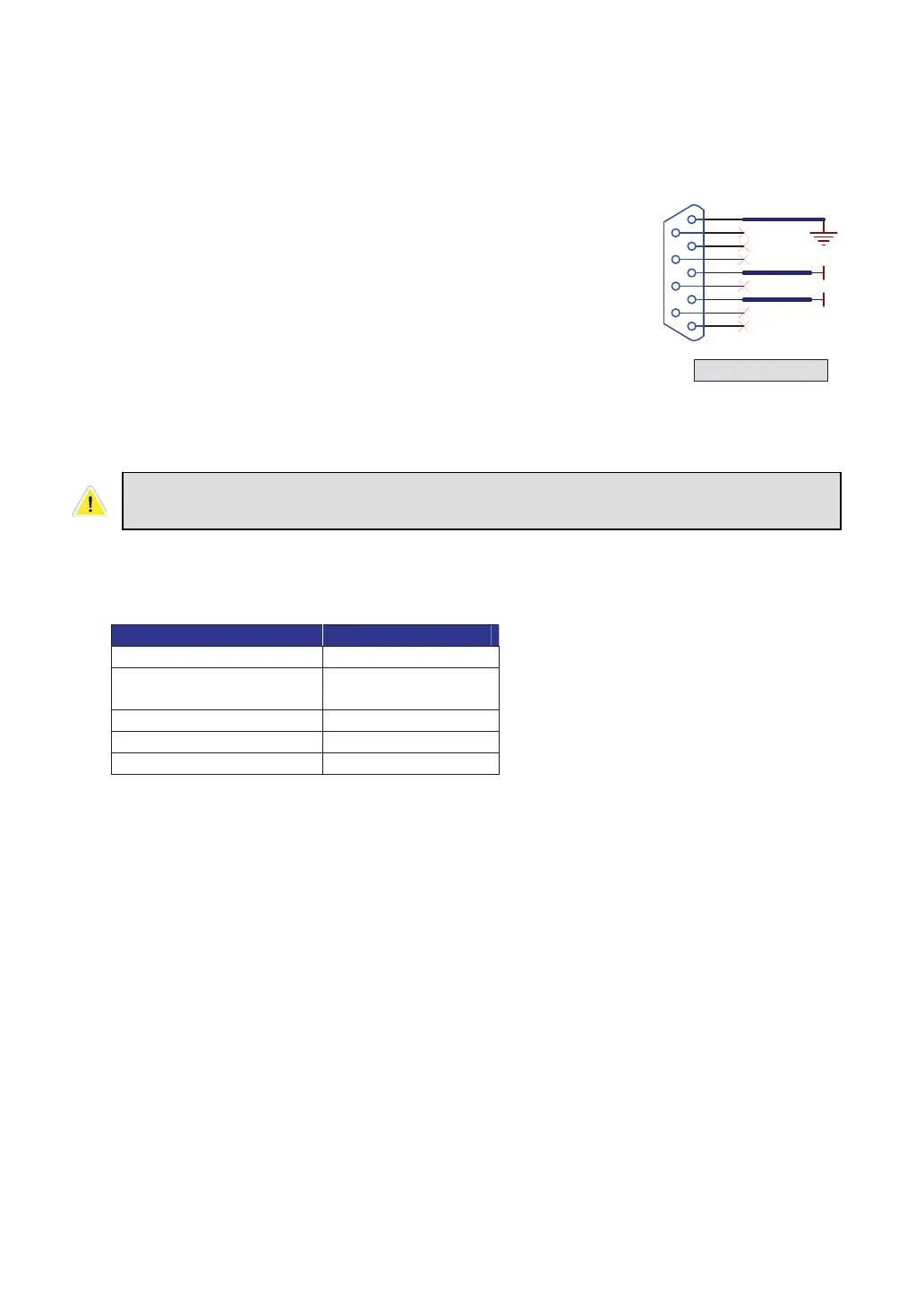

Fig. 3-14 RS232
Use the parallel communication cable in the accessory pack. Linking the UPS
with other cables will result in accidents.
