Modulon NH Plus Series 3-9
3-3 Interface
3-3-1 Dry Contact Input
P1: REPO (Remote Emergency Power Off)
P2: Dry contact input (Two sets)
P3: External Battery Cabinet Temperature 1
P4: External Battery Cabinet Temperature 2
P5: External Battery Cabinet Temperature 3
P6: External Battery Cabinet Temperature 4
P7: External Battery Status
1. P1: REPO
The NH Plus Series provides a convenient method for
users remotely power off the UPS if an emergency
event occurs.
Simply connect the cable from remote site to this terminal.
The user may install a button or switch to easily press the button
to power off the UPS. This REPO is a normal open contact.
1
2
12V
1
2
4
3

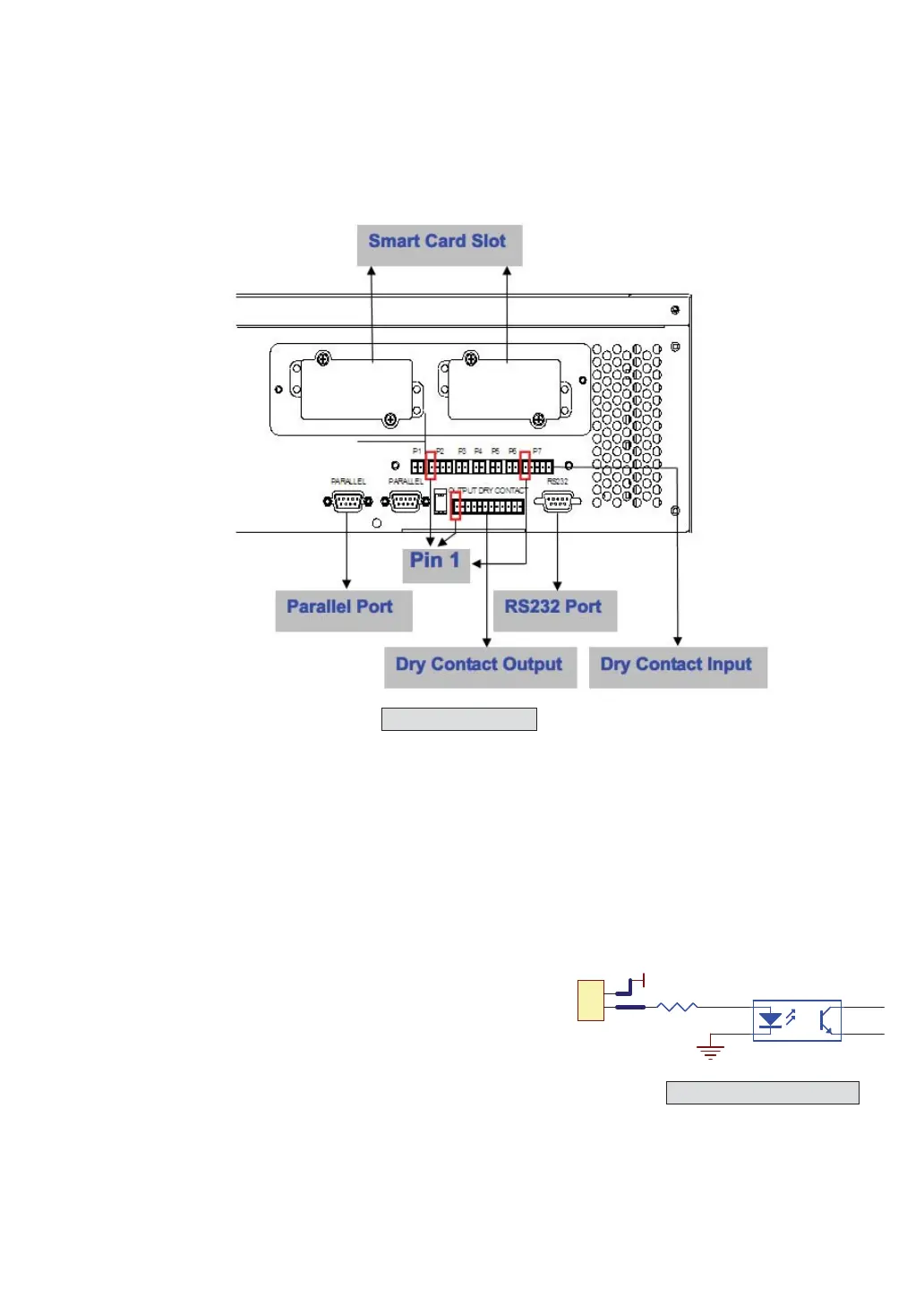

Fig. 3-11 REPO Circuit
Fig. 3-10 Interface
