3-2-2 Rear Panel
1. Interfaces
Provide multi-interface for monitoring and control purpose.
There are:
(1) Two multi-function slots (SNMP card, Relay I/O control card and Mobus card are
optional accessories).
(2) Parallel port.
(3) Input and output dry contacts.
(4) RS232: Delta software ”UPSentry Smart 2000” or “Insight Power Manager” is the
optional choice for central monitoring and control purpose.
For more details, refer to Section 3-3.
2. Power modules
- Remove the cover, then you can perform wiring for power modules.
3. Wiring terminal block
Interface
Wiring
Terminal Block
Caster & Stop
Power
Modules

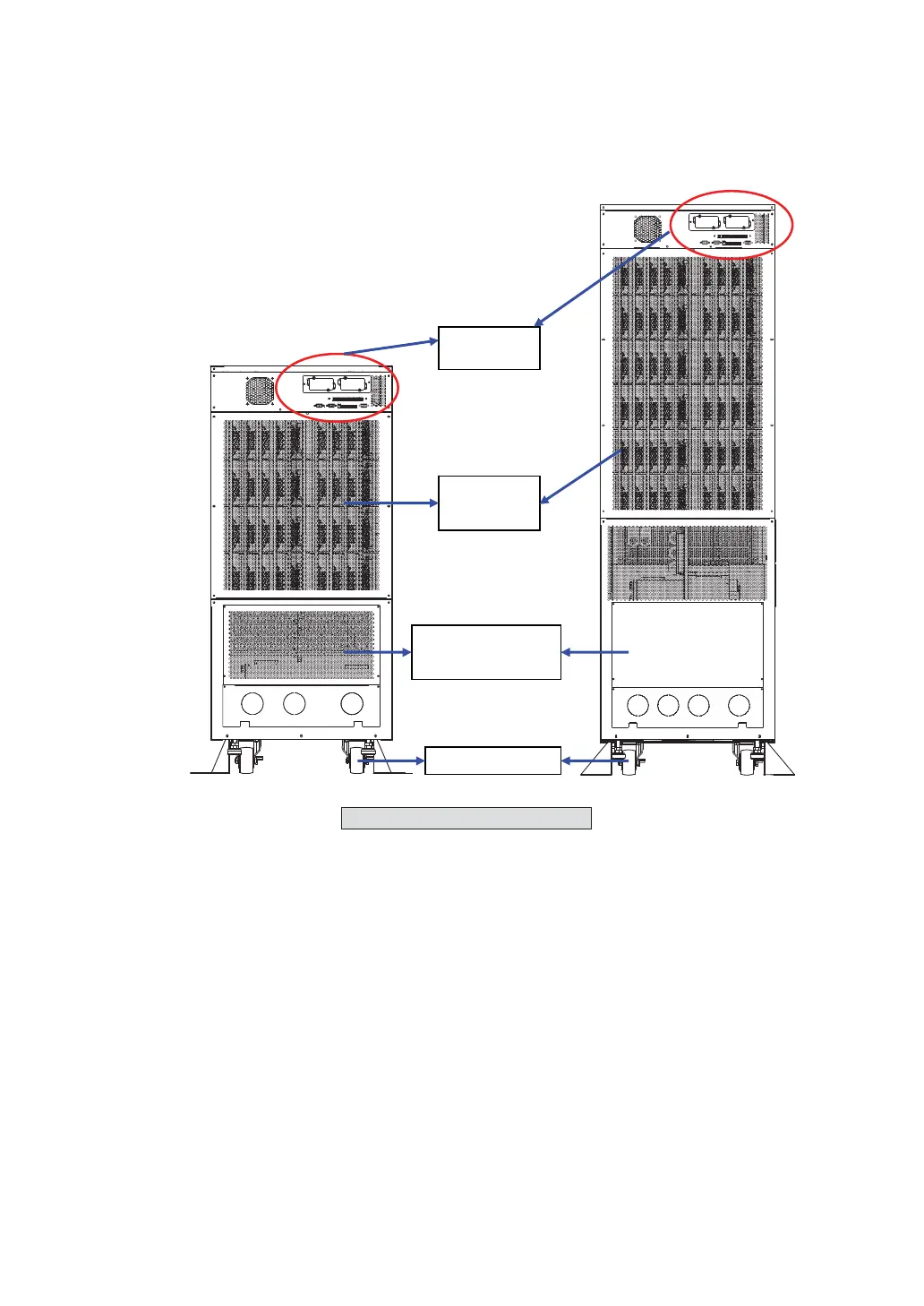

Fig. 3-5 Rear view of NH Plus
