Chapter 10 Function Cards
10-51
10

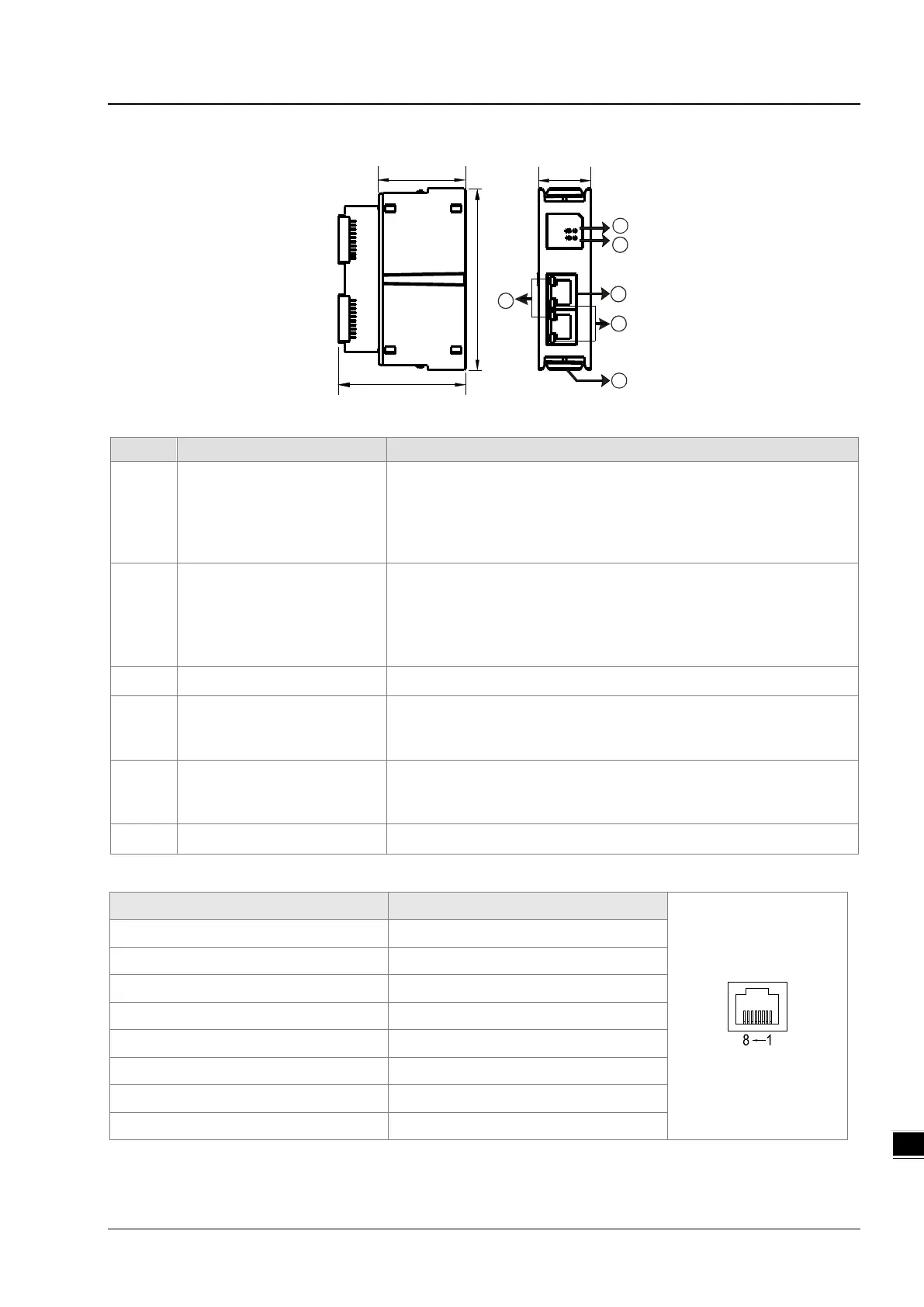

10.3.5 AS-FPFN02
1
88
42
61.5
25.2
2
3
4
5
6
Unit: mm
Number Name Description
1 SF indicator
System Fail Indicator
Red light ON: an error occurs in the system
Example: the parameters downloaded to the Controller are different from
the actual placement, connecting port 2, instead of connecting to port 1
OFF: no system error
2 BF indicator
Bus Fail Indicator
Red light ON: the connection with PROFINET Controller is OF F.
Red light BLINKING: the connection is working fine but the communication
with PROFINET Controller is NOT normal.
OFF: the connection with PN-Controller is working fine.
3 RJ-45 port X1/X2 Uses for network connections
4 LINK indicator X1/X2
Indicates the status of Ethernet connection
Green light ON: a network connection is established
OFF: a network connection is not established
5 ACT indicator X1/X2
Indicates the status of Ethernet communication
Orange BLINKING: data transmission
OFF: no data transmission
6 Clip ring Secures AS series
RJ-45 Pin Definition
Pin No.
RJ-45
1 TX+
2 TX-
3 RX+
4 N/C
5 N/C
6 RX-
7 N/C
8 N/C
