Chapter 14 High Speed Counter Module AS02HC
14-31

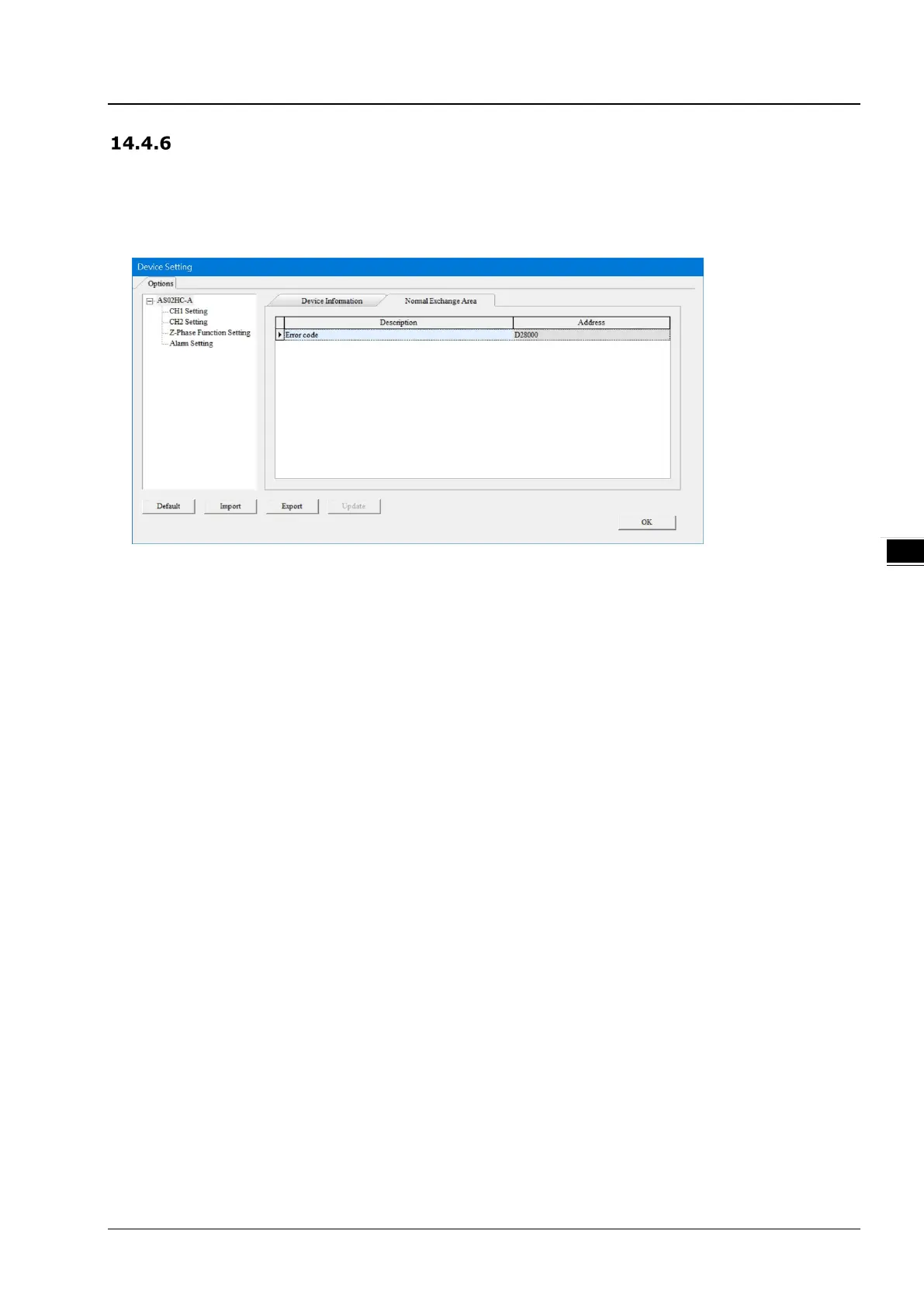

Normal Exchange Area
The data exchange area between the CPU and a module is in the Device Setting dialog box. The normal exchange areas
for modules are different from one another. Special D registers are corresponded to automatically based on the
configuration data for the convenience of directly reading the values. The error codes of AS02HC-A are configured in the
Normal Exchange Area. The error codes of the module can be known by monitoring D registers.
