Delta AS02PU-A - Using LD Program to Control the Entire Network; Error Diagnosis and Trouble Shooting

Chapter 11 DeviceNet Master Scanner Module AS01DNET-A
11-91
1
1

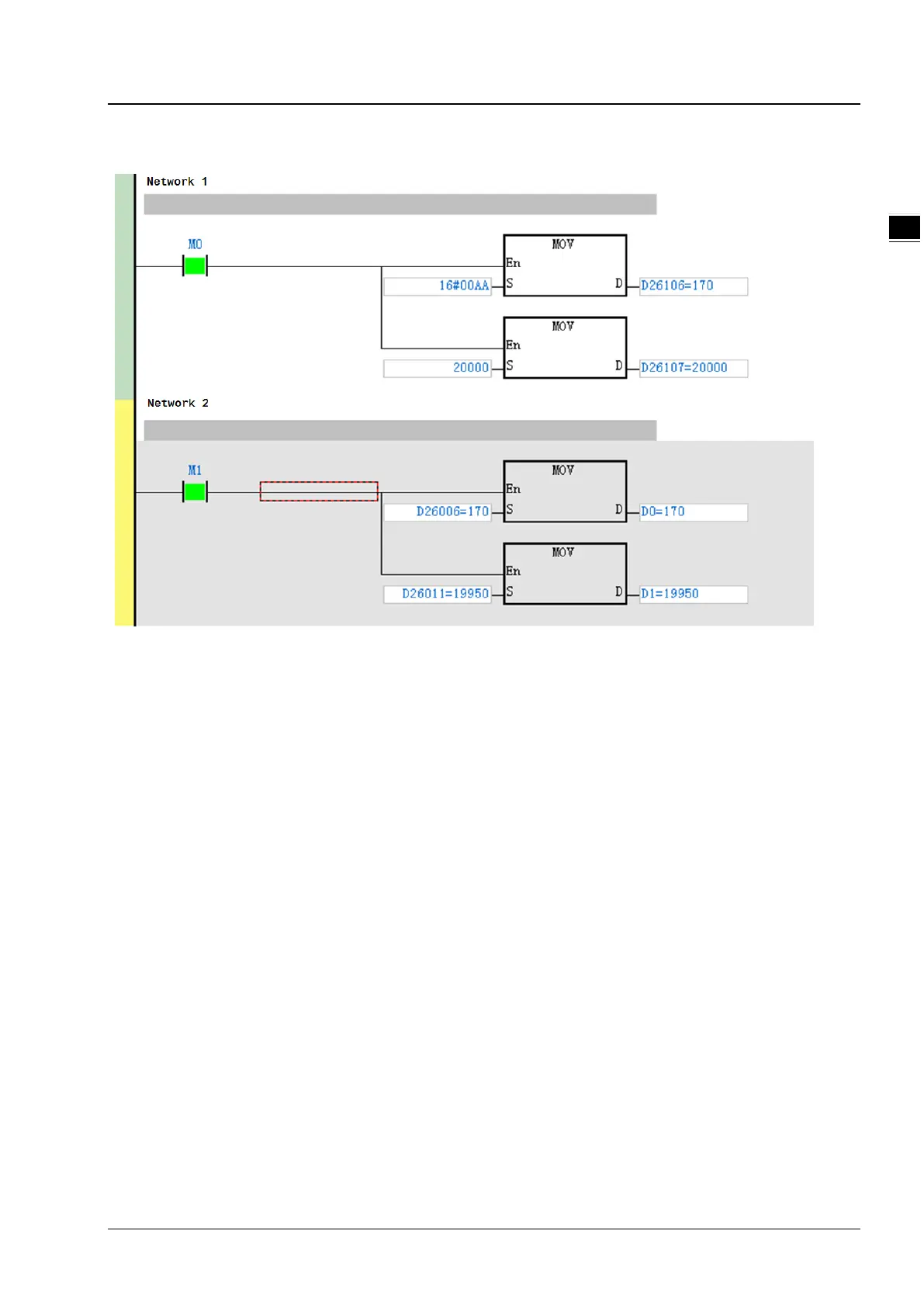

11.5.5.3. Using LD Program to Control the Entire Network
Program Explanation:
1. In network 1, write a value for the output of AS16AP and for the output of channel 1 of AS04DA when M0 changes
to ON.
2. In network 2, move the input value of AS16AP to D0 and the input value of channel 1 of AS04AD to D1 when M1
changes to ON.
11.5.6 Error Diagnosis and Trouble Shooting
AS01DNET (RTU) provides four diagnosis methods such as LED indicator, seven-segment displayer, status word
diagnosis and software diagnosis.
