AS Series Module Manual
13-12
13.3.1.9 Detection of Short-Circuits in I/O Cables
This function detects short-circuits in I/O cables. The status code for communication ports will show
16#8CA4 if an error occurs.
13.3.1.10 Event Log

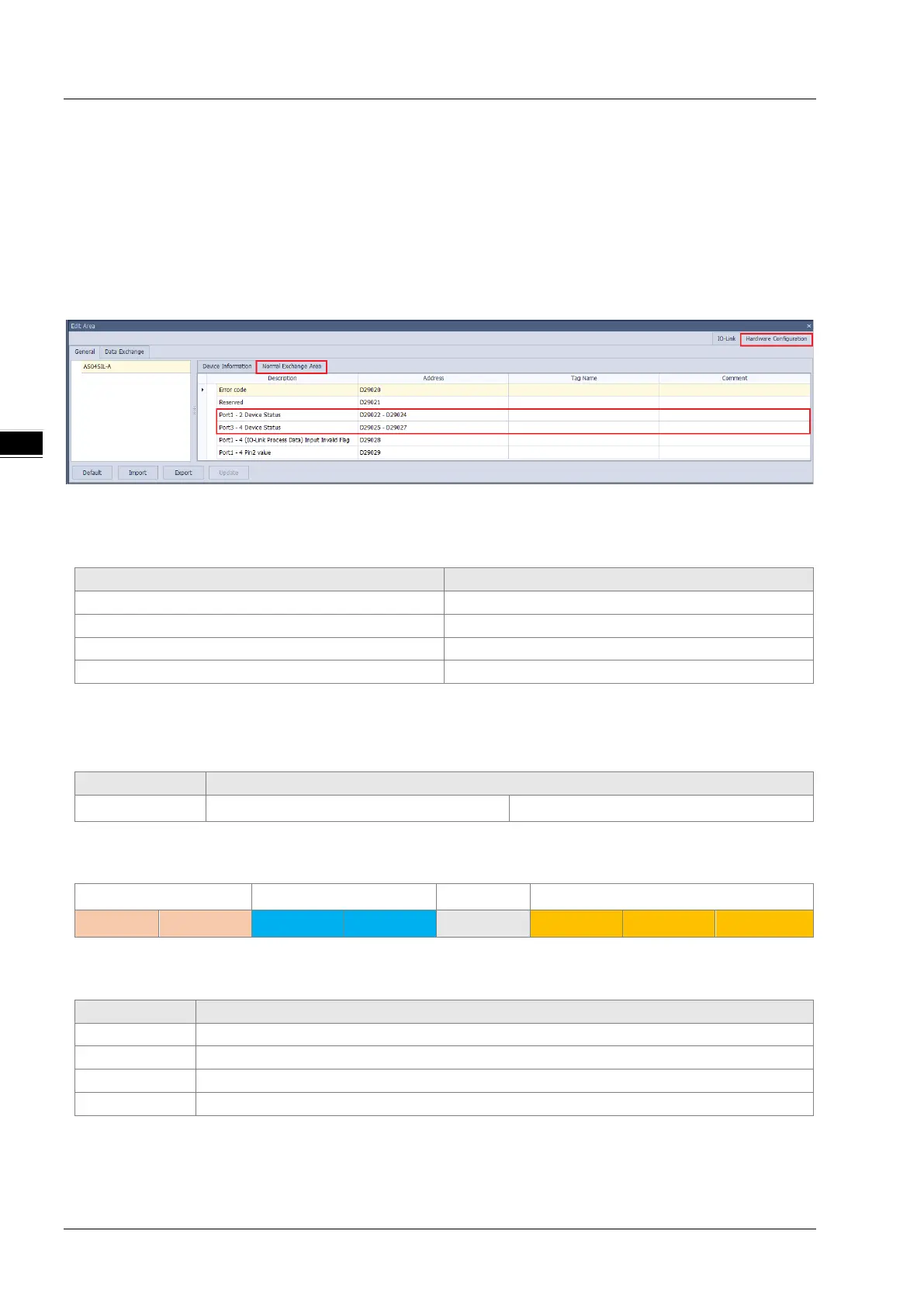

The IO-Link event codes listed in section 13.5 are refreshed in the mapped devices for ports in the Normal Exchange
Area section as below.
The device status for each port should be set to 3 bytes in length. See the following table of above device addresses
corresponding to ports in order.
D29022_H, D29022_L, D29023_H
D29023_L, D29024_H, D29024_L
Port 3 D29025_H, D29025_L, D29026_H
Port 4 D29026_L, D29027_H, D29027_L
Device status consists of Event qualifier and Event Code as follows.
For event codes, see section 13.5.
Byte 0 Byte 1 Byte 2
The data frame of Event Qualifier:
MODE TYPE SOURCE INSTANCE
Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
Bit 0~ Bit 2: INSTANCE
