Chapter 14 High Speed Counter Module AS02HC
14-15
14

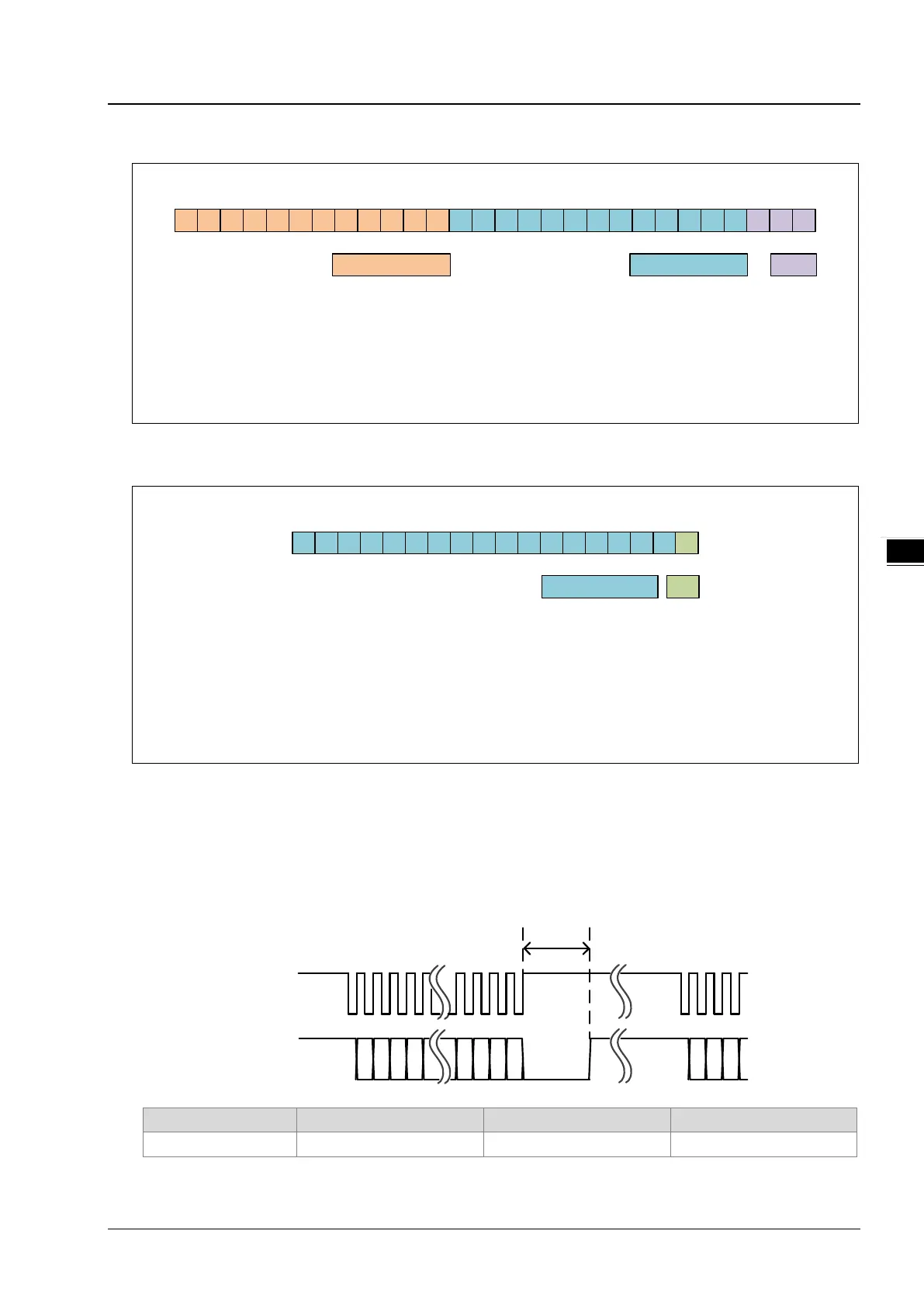

Example 2: Encoder with Status Data
b9 b8 b7 b6b11 b10 b3 b2 b1 b0b5 b4
MSB LSB
Sing le-turn da ta
b12
b22 b21 b
20 b19b24 b23 b16 b15 b14 b13b18 b17b25b27 b26
Multi-turn data
Statu s
da ta
Data Length (bits): 28
Multi-Turn Data Length (bits): 12
Multi-Turn Data Start Bit: b27
Single-Turn Data Length (bits): 13
Single-Turn Data Start Bit: b15
Status Data Length (bits): 3
Status Data Start Bit: b2
Parity Check: No check
Example 3: Encoder with Parity Check
b9 b8 b7 b6b11 b10 b3 b2 b1 b0b5 b4
MSB LSB
Single-turn d ata
b12b16 b15 b14 b13b17
Pari ty
Data Length (bits): 18
Multi-Turn Data Length (bits): 0
Single-Turn Data Length (bits):17
Single-Turn Data Start Bit: b17
Status Data Length (bits): 0
Parity Check: Even parity check
Parity Check Bit: b0
Parity Check Start Bit: b17
Parity Check Length (bits): 17
4. Monoflop Time
The Monoflop Time parameter determines the interval time between two SSI data frames. The correct position data
can be received as long as the setting value is greater than that specified for the connected encoder. The range is
set as follows.
MSB LSB MSB
Monoflop
Ti me
CL K
DA TA
Parameter
Setting
Unit
Default
Monoflop time
4 ~ 2500
16us
4
