Delta ASDA-B2-F Series User Manual

Parameters ASDA-B2-F
7-34 September, 2015
7
1.5 kW 60
2 kW 100
3 kW 100

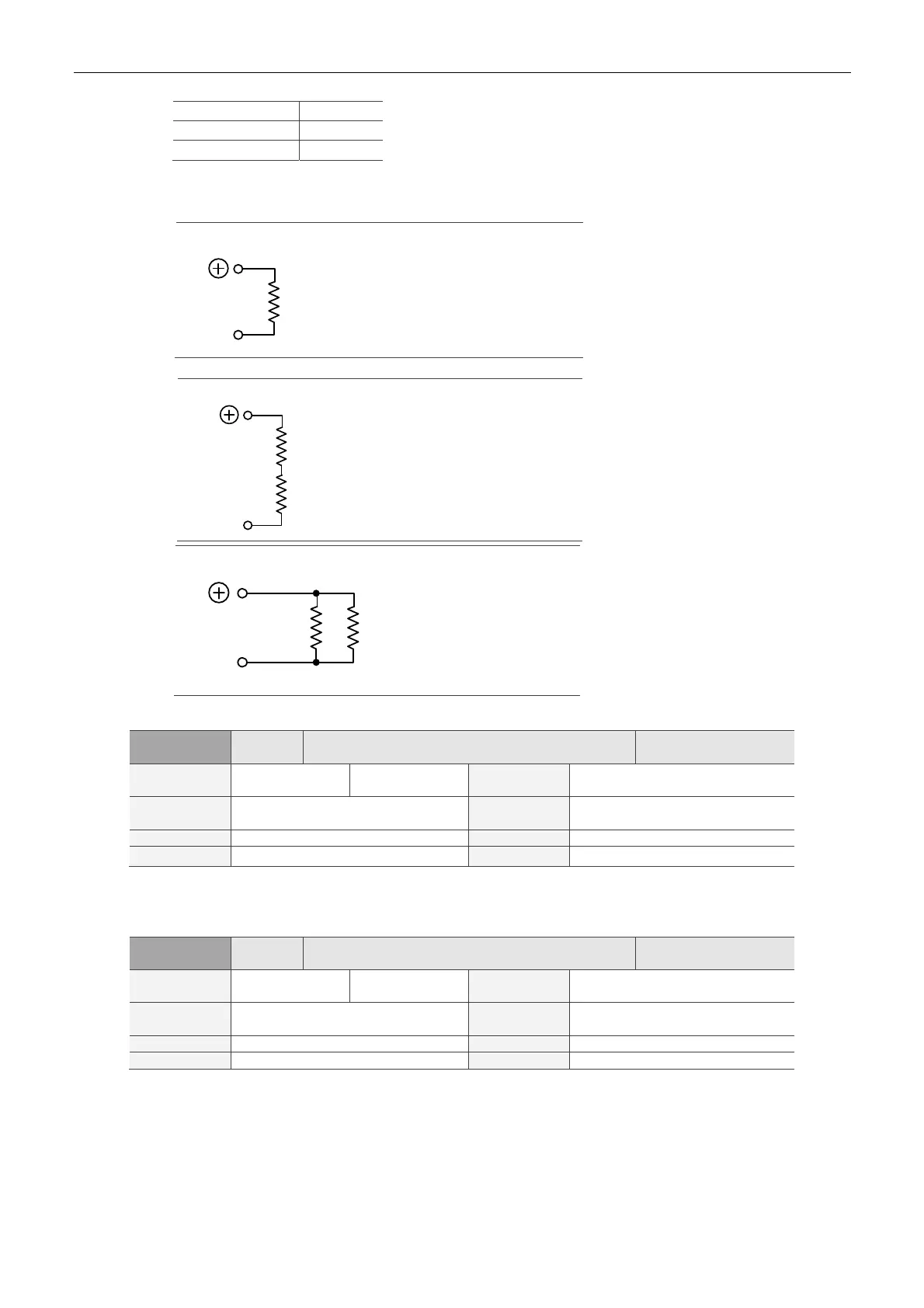

Following describes the setting value of P1-52 and P1-53 when connecting regenerative resistor
with different method:
External regenerative resistor
C
1 kW, 10 Ω
P
Setting:
P1-52 = 10 (Ω)
P1-53 = 1000 (W)
P1-54 PER Position Completed Range
A
ddress: 016CH
016DH
Operational
Interface:
Panel / Software Communication
Related
Section:
Table 7.2
Default: 12800
Control
Mode:
DMCNET
Unit: Pulse Range: 0 ~ 1280000
Format:
DEC
Data Size: 32-bit
Settings:
In DMCNET mode, if the deviation pulse number is smaller than the setting range (the setting
value of parameter P1-54), DO.TPOS is ON.
P1-55 MSPD Maximum Speed Limit
A
ddress: 016EH
016FH
Operational
Interface:
Panel / Software Communication
Related
Section:
-
Default:
Same as the rated speed of each
model.
Control
Mode:
ALL
Unit: r/min Range: 10 ~ max.speed
Format: DEC Data Size: 16-bit
Settings:
The default of the max. speed of servo motor is set to the rated speed.
C
1 kW, 10 Ω
P
1 kW, 10 Ω
External regenerative resistor
(serial connection)
Setting:
P1-52 = 20 (Ω)
P1-53 = 2000 (W)
C
1 kW, 10 Ω
P
1 kW, 10 Ω
External regenerative resistor
(parallel connection )
Setting:
P1-52 = 5 (Ω)
P1-53 = 2000 (W)
