ECMA-G∆1306□S
2000
2.87
(50%)
17.19
(300%)
Speed
(r/min)
5.73
(100%)
Torque(N-m)
Intermittent
Duty Zone
Continuous
Duty Zone
1000
ECMA-G∆1309□S
2000
4.29
(50%)
21.48
(250%)
Speed
(r/min)
8.59
(100%)
Torque(N-m)
Intermittent
Duty Zone
Continuous
Duty Zone
1000
Overload Features
Definition of Overload Protection
The overload protection is to prevent the motor from overheating.
Causes of Overload
1) The motor operates over the rated torque and the operation time is too long.
2) The inertia ratio is set to be too big and frequently accelerate/decelerate.
3) Connection error between power cable and encoder wiring.
4) Servo gain setting is in error which causes resonance of the motor.
5) The motor with brake operates without releasing the brake.

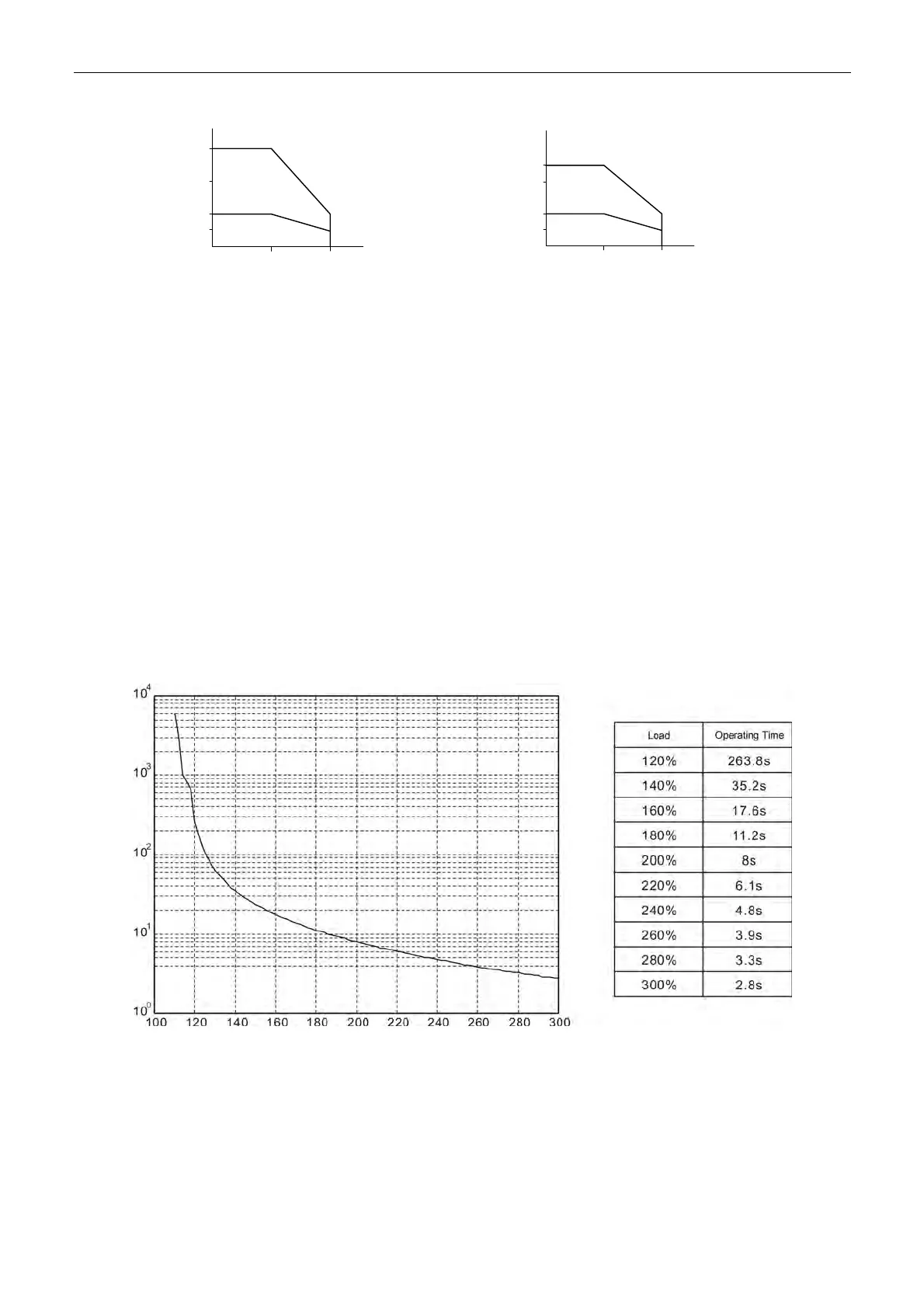

Graph of Load and Operating Time
Low Inertia Series (ECMA C, CM Series)

Delta ASDA-B2-F Series Specifications

General

Brand	Delta
Model	ASDA-B2-F Series
Category	Servo Drives
Language	English
