Delta ASDA-B2-F Series User Manual

ASDA-B2-F Wiring
September, 2015 3-5
3

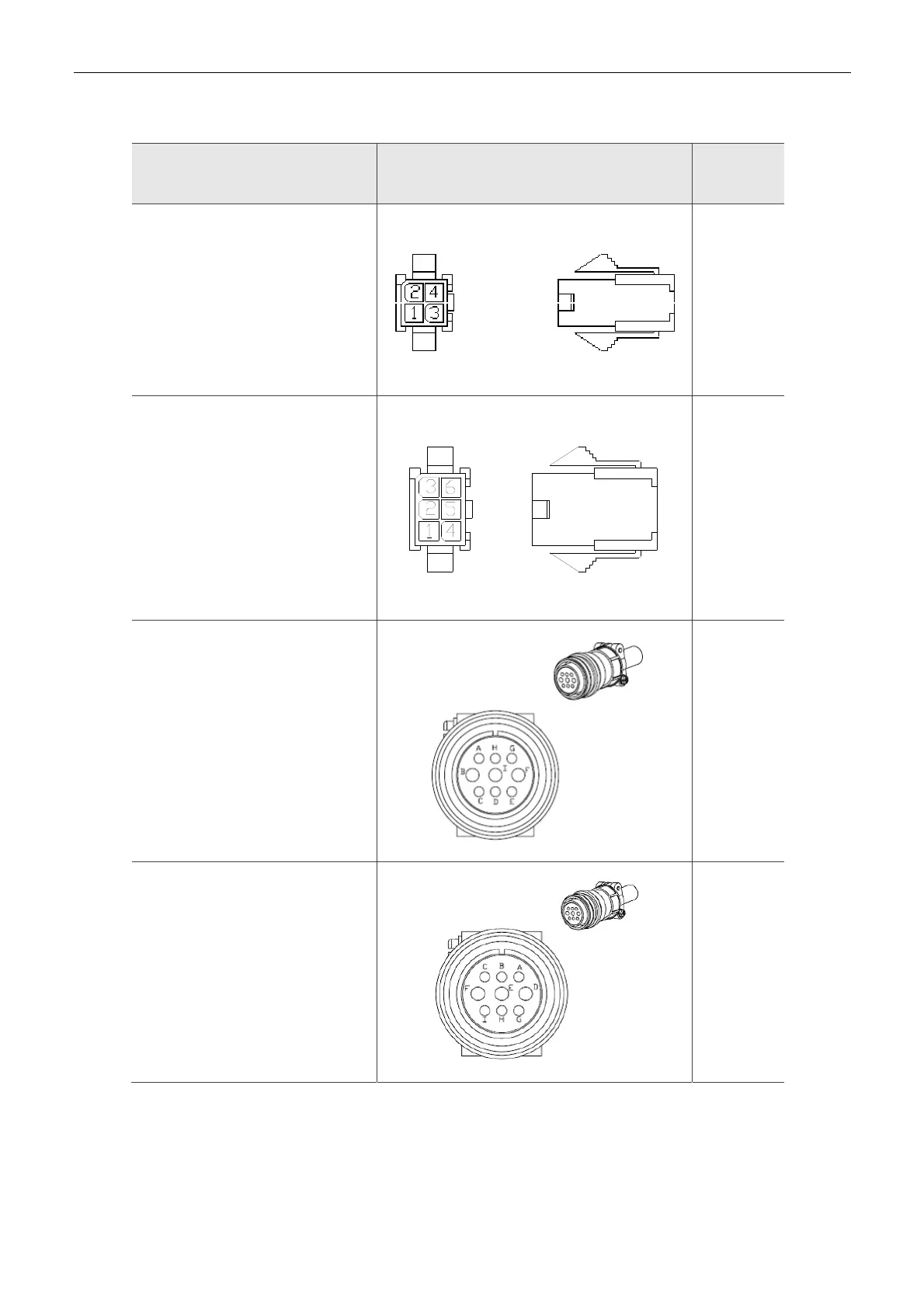

3.1.4 Specification of Motor Power Cable
Motor Model U, V, W / Connector of Brake
Terminal
Definition
ECMA-C1040FS (50 W)
ECMA-Cᇞ0401S (100 W)
ECMA-Cᇞ0602S (200 W)
ECMA-Cᇞ0604S (400 W)
ECMA-Cᇞ0604H (400 W)
ECMA-Cᇞ08047 (400 W)
ECMA-Cᇞ0807S (750 W)
ECMA-Cᇞ0807H (750 W)
ECMA-Cᇞ0907S (750 W)
ECMA-Cᇞ0910S (1000 W)
A
ECMA-C1040FS (50 W)
ECMA-Cᇞ0401S (100 W)
ECMA-Cᇞ0602S (200 W)
ECMA-Cᇞ0604S (400 W)
ECMA-Cᇞ0604H (400 W)
ECMA-Cᇞ08047 (400 W)
ECMA-Cᇞ0807S (750 W)
ECMA-Cᇞ0807H (750 W)
ECMA-Cᇞ0907S (750 W)
ECMA-Cᇞ0910S (1000 W)
*：with brake
B
ECMA-Gᇞ1303S (300 W)
ECMA-Eᇞ1305S (500 W)
ECMA-Gᇞ1306S (600 W)
ECMA-Fᇞ1308S (850 W)
ECMA-Gᇞ1309S (900 W)
ECMA-Cᇞ1010S (1000 W)
ECMA-Eᇞ1310S (1000 W)
ECMA-Fᇞ1313S (1300 W)
ECMA-Eᇞ1315S (1500 W)
ECMA-Fᇞ1318S (1800 W)
ECMA-Cᇞ1020S (2000 W)
ECMA-Eᇞ1320S (2000 W)
ECMA-Cᇞ13304 (3000 W)
C
ECMA-Eᇞ1820S (2000 W)
ECMA-Eᇞ1830S (3000 W)
ECMA-Fᇞ1830S (000 W)
D
