Panel Display and Operation ASDA-B2-F
4-6 September, 2015
4

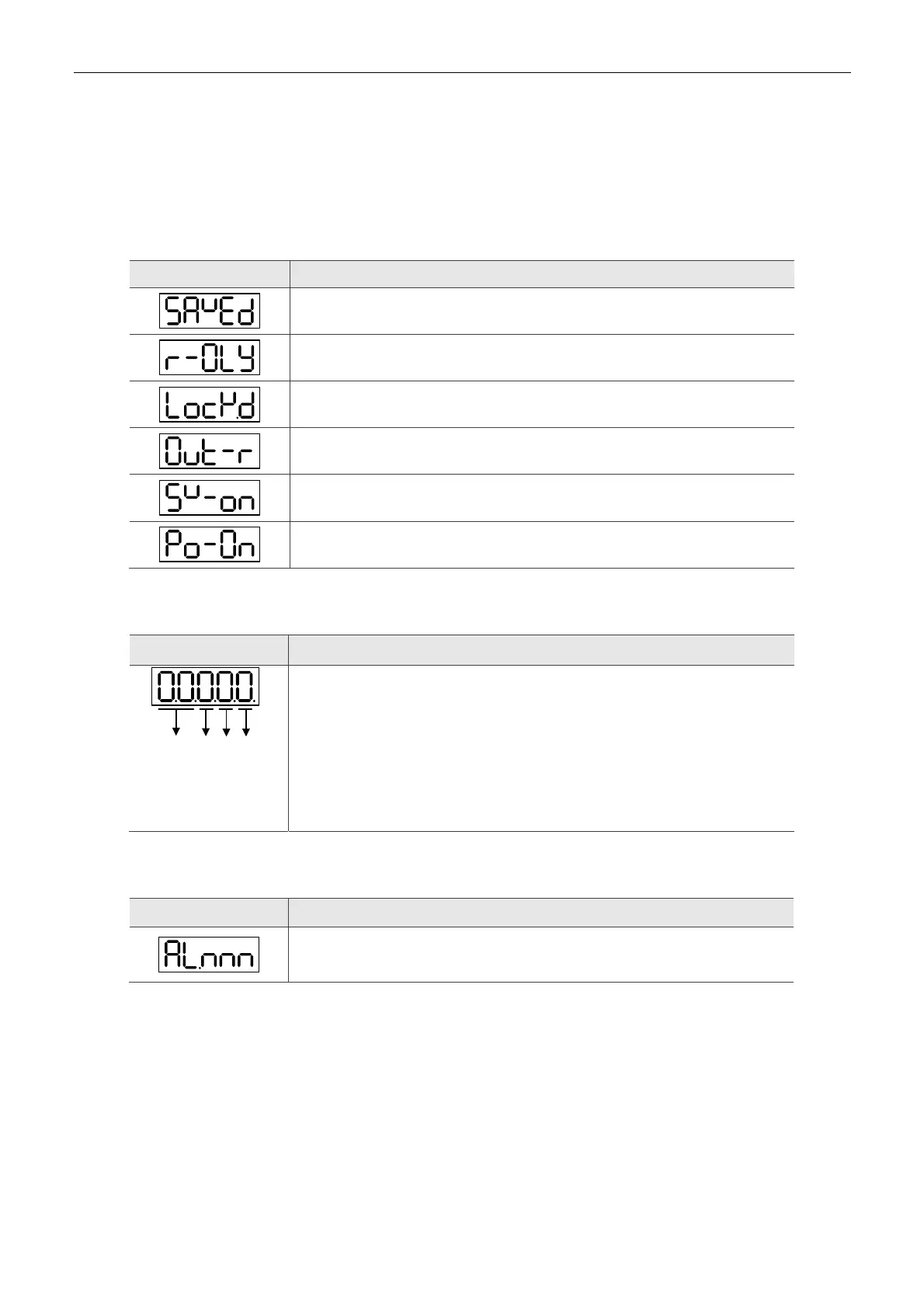

4.3 Status Display
4.3.1 Save Setting Display
When finishing editing parameter, press the SET Key to save the setting. The panel will display
the setting status according to the setting for a second.
Displayed Symbol Description
The setting value is saved correctly. (Saved)
Read-only parameter. Write-protected. (Read-Only)
Enter the wrong password or no password has been entered. (Locked)
Incorrect setting value or enter the reserved setting value. (Out of Range)
No entering is allowed when it is Servo ON. (Servo On)
Parameter will be effective after the servo drive is re-powered on. (Power On)
4.3.2 Decimal Point
Displayed Symbol Description
Negative Sign
No Function
Low Byte
High Byte
High byte / low byte indication: When the data is displayed in decimal 32 bits, it is
for indicating the current high or low byte.
Negative sign: When the data is displayed in decimal format, the two decimal
points in the left represents the negative sign, no matter it is showed in 16 or 32
bits. When it is showed in hexadecimal format, it only shows positive sign.
4.3.3 Alarm Message
Displayed Symbol Description
When alarm occurs, the servo drive will show ‘AL’ as the alarm sign and ‘nnn’ as
the alarm code. For further explanation, please refer to Chapter 7, P0-01,
parameter description, or Chapter 9, Troubleshooting.
