Absolute System ASDA-B2-F
10-10 September, 2015
10

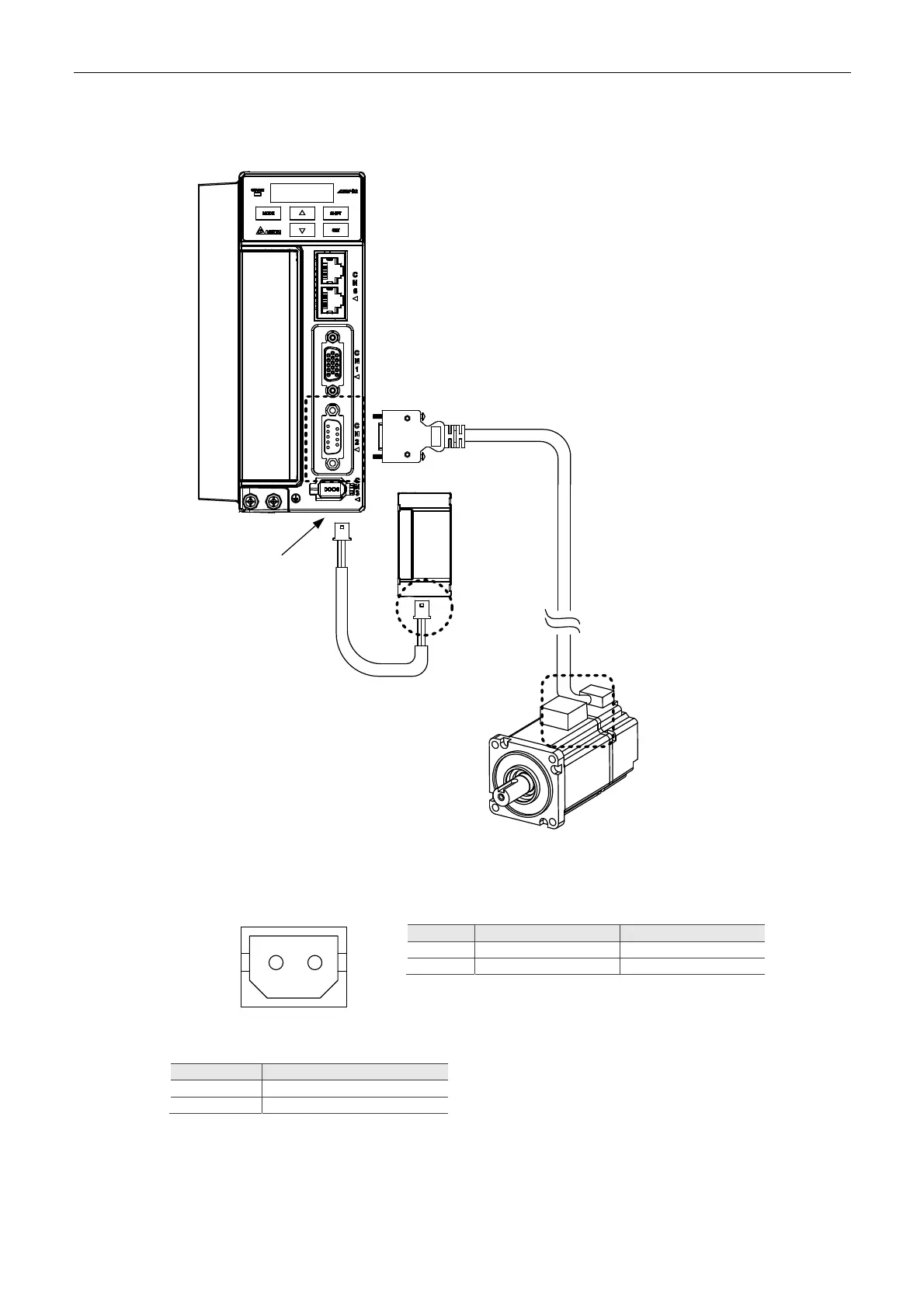

Single Battery Box (Connect to CN4)
Servo Drive
CN2 Connector
Single battery
box for
absolute type
encoder
Incremental type
encoder cable
ASDBCAEN0003,
ASDBCAEN0005,
ASDBCAEN1003,
ASDBCAEN1005
CN4
*2
*1
*3
Motor
Battery Box Cable IW
Note:
This is the wiring diagram of connecting to a single battery box, which is not drawn to scale. For
different models of AC servo drive and motors, the connection cables may differ.
*1 Make sure the battery box is firmly fixed.
*2 Connect to the power based on single battery box. See descriptions below:
12
Pin No Terminal Symbol Connector Cable
1
BAT+ Red
2 BAT- Black
*3 Definition of CN4 connector:
Please follow the instructions below when conduct wiring. Wrong wiring might result in explosion.
Pin No Terminal Symbol
1
BAT
2 BAT-
