Delta ASDA-B2-F Series User Manual

Absolute System ASDA-B2-F
10-12 September, 2015
10
Dual Battery Box (Connect to CN4)
Servo Drive # 1
CN2 Connector
Servo Drive #2
Two connection ports
are on the front and
rear side of the battery
box for connecting to
two servo drives
Battery box
cable IW
Absolute type
of battery box
Battery box
cable IW
CN2 Connector
Motor # 2
*2
Motor #1
*2
Incremental type
encoder cable
ASDBCAEN0003,
ASDBCAEN0005,
ASDBCAEN1003,
ASDBCAEN1005
*1
Incremental type
encoder cable
ASDBCAEN0003,
ASDBCAEN0005,
ASDBCAEN1003,
ASDBCAEN1005
*1
CN4
*3
CN4
*3
Note:

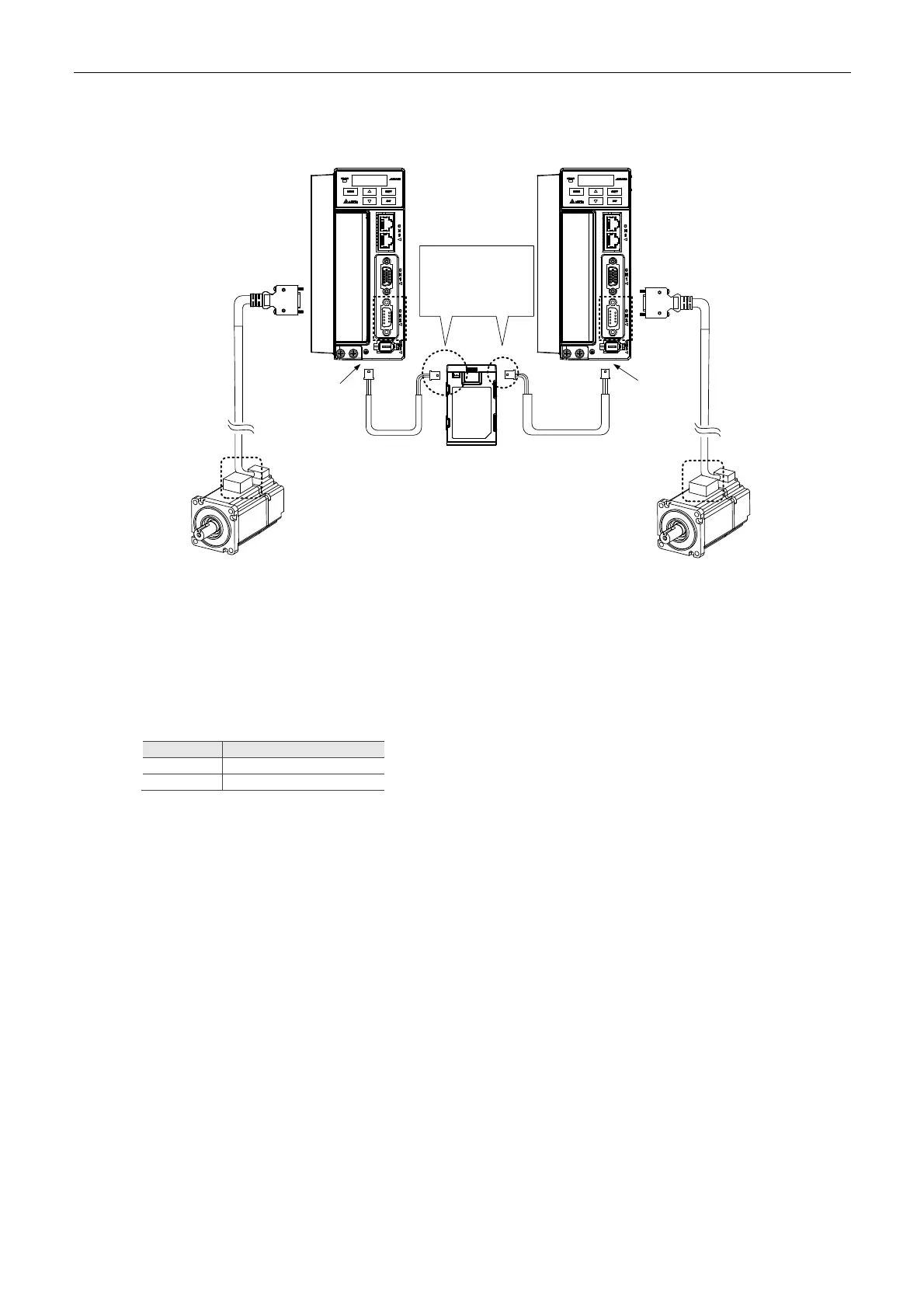

This is the wiring diagram of connecting to a dual battery box, which is not drawn to scale. For different
models of AC servo drive and motors, the connection cables may differ.
Please refer to section 10.1.3 for the wiring of *1 and *2.
*3 Definition of CN4 connector:
Please follow the instructions below when conduct wiring. Wrong wiring might result in explosion.
Pin No Terminal Symbol
1 BAT+
2 BAT-
