Installation ASDA-B2-F
2-6 September, 2015
2
General Precaution
In order to ensure the best performance of EMI Filter, apart from the instructions of servo drive
installation and wiring, please follow the precautions mentioned below:
1. The servo drive and EMI Filter should be installed on the same metal plate.
2. When installing servo drive and EMI Filter, the servo drive should be installed above the EMI
Filter.
3. The wiring should be as short as possible.
4. The metal plate should be well grounded.
5. The servo drive and the metal cover of EMI Filter or grounding should be firmly fixed on the
metal plate. Also, the contact area should be as large as possible.
Motor Cable Selection and Installation Precautions
The selection of motor cables and installation affect the performance of EMI Filter. Please follow
the precautions mentioned below.
1. Use the cable that has braided shielding (The effect of double shielding is better)
2. The shield on both sides of the motor cable should be grounded in the shortest distance and
the largest contact area.

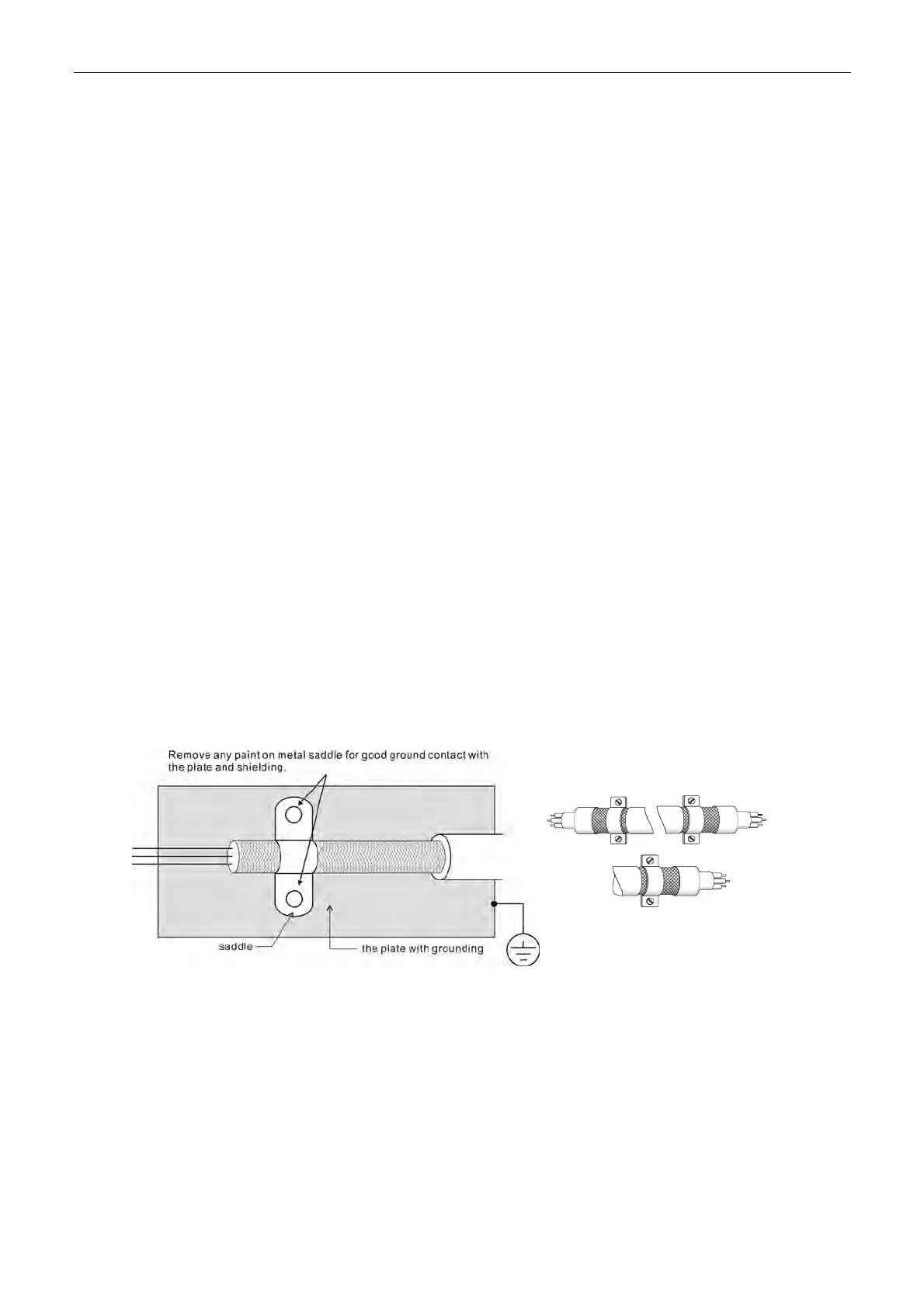

3. The protective paint of the U-shape saddle and metal plate should be removed in order to
ensure the good contact. Please see Fig. 1.
4. It should have correct connection between the braided shielding of the motor cable and the
metal plate. The braided shielding on both sides of the motor cable should be fixed by the
U-shape saddle and metal plate. Please see Fig. 2 for the correct connection.
Fig.1 Fig. 2
