Delta ASDA-B2-F Series User Manual

ASDA-B2-F Installation
September, 2015 2-11
2
Allowable frequency of regenerative resistor when the servo drive runs without load (times/min)
Motor Capacity
Suggested
Regenerative
Resistor
ECMA□□G
0.3 kW 0.6 kW 0.9 kW
03 06 09
200 W 80 Ω 149 144 109
400 W 40 Ω - - 217
If watt is not enough when using regenerative resistor, connecting the same regenerative resistor
in parallel can increase the power.

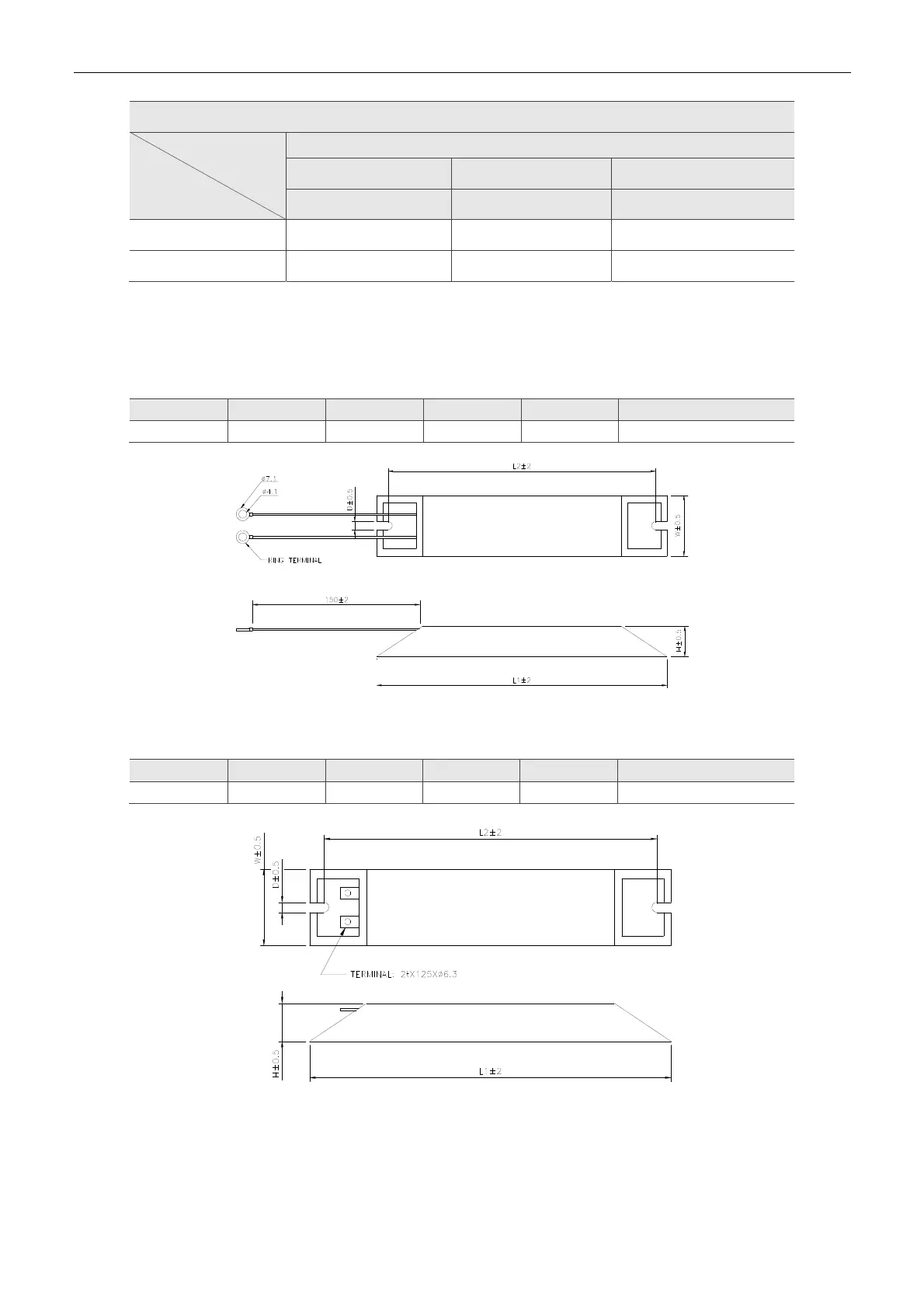

Dimensions of Regenerative Resistor
Delta Part Number: BR400W040 (400 W 40 Ω)
L1 L2 H D W MAX. WEIGHT (g)
265 250 30 5.3 60 930
Delta Part Number: BR1K0W020 (1 kW 20 Ω)
L1 L2 H D W MAX. WEIGHT(g)
400 385 50 5.3 100 2800
Note:
Please refer to Appendix B for selection of regenerative resistor.
