Delta ASDA-B2-F Series User Manual

Wiring ASDA-B2-F
3-22 September, 2015
3
The definition of each signal is as follows:
Drive Connector Encoder Connector
Pin No
Terminal
Symbol
Function and Description
Military
Connector
Quick
Connector
Color
4 T+
Serial communication signal
input / output (+)
A 1 Blue
5 T-
Serial communication signal input
/ output (-)
B 4 Blue & Black
8 +5V +5 V power supply S 7
Red / Red &
White
6, 7 GND Power ground R 8
Black / Black
& White
Shell Shielding Shielding L 9 -

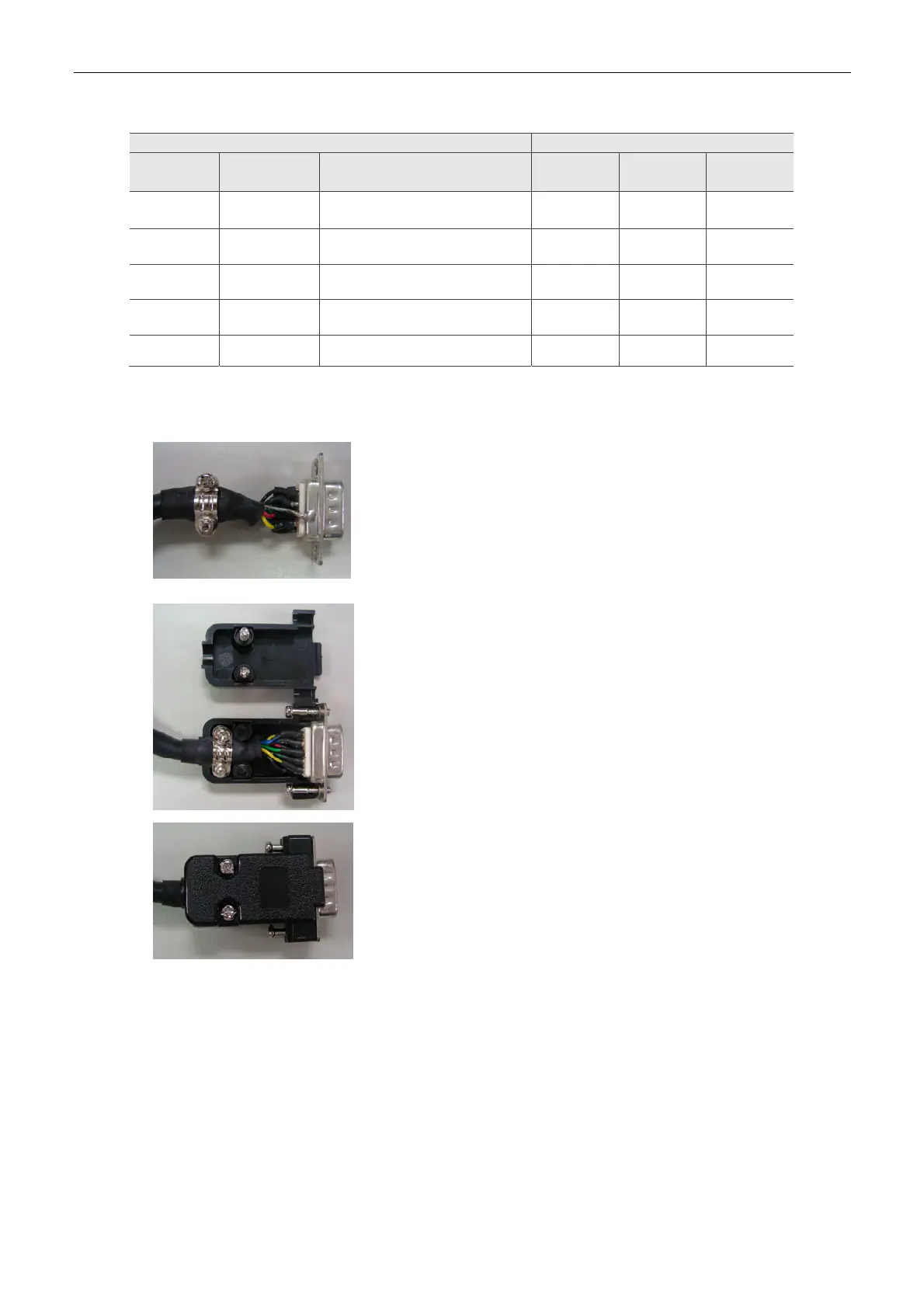

The shielding procedures of CN2 encoder connector are as followings:
(1) Weld the metal core wires with shielding outside with
the metal part of the connector in order to have it fully
shielded.
(2) Install the connector with shielding into the plastic
case as shown in the figure.
(3) Tighten the screws to complete a shielded CN2
connector.
