Delta ASDA-B2-F Series User Manual

ASDA-B2-F Wiring
September, 2015 3-25
3

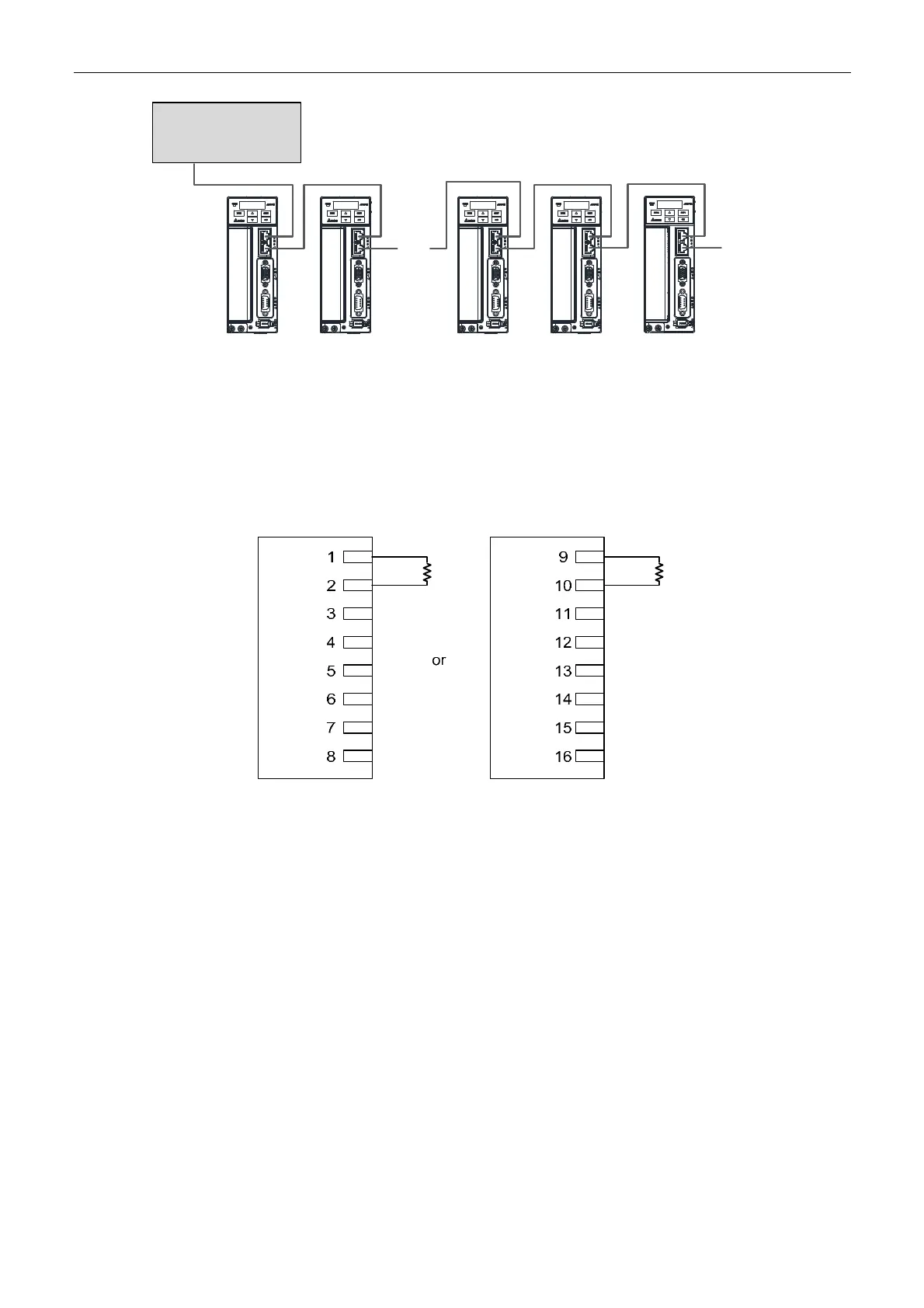

Max. axes: 12
Max. cable length: 30 m
Connect to the
terminal resistor
…
Host Controller or
Motion Card
Note:
1. The terminating resistor is suggested to use 120 Ω (Ohm) 0.25 W or above.
2. The wiring method of concatenate more than one drives is based on two terminals of DMCNET. One is
for receiving and another one is for transmission. And the last servo drive connects to the termination
resistor. The wiring diagram of the termination resistor is shown as the followings:
