ASDA-B2-F Trial Operation and Tuning

September, 2015 5-5

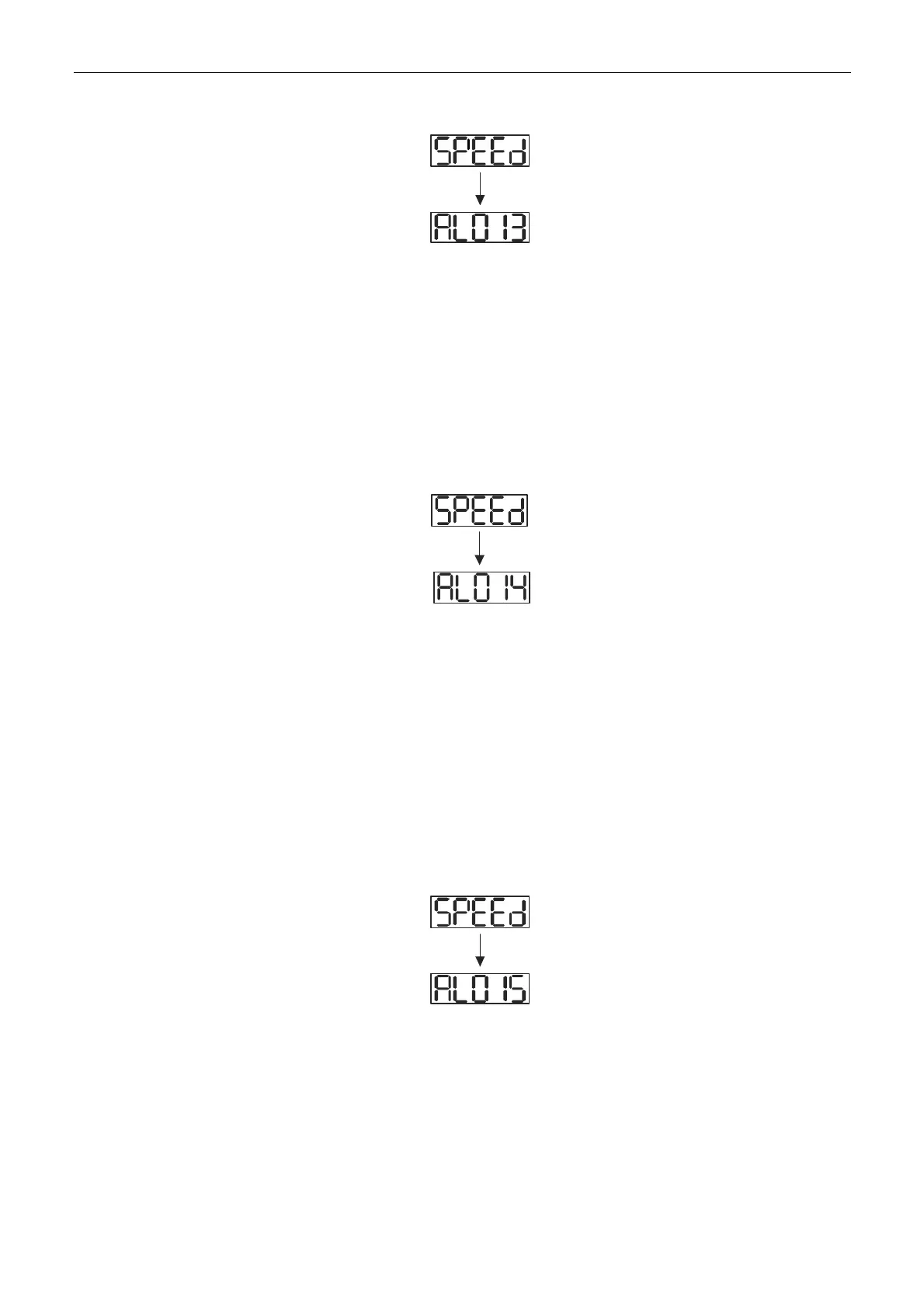

(3) When screen displays

Warning of emergency stop:

Please check if any of the digital input DI1 ~ DI5 is set to emergency stop (EMGS).

Corrective action:

 If not desire to set emergency stop (EMGS) as one of the digital input, make sure no digital

input is set to emergency stop (EMGS) among DI1 ~ DI5. (That is to say none of the

parameters, P2-10 ~ P2-14 is set to 21.)

 If the function of emergency stop (EMGS) is needed and this DI is set as normally close

(function code: 0x0021), please make sure this DI is always normally close. If not, please

set this DI as normally open (function code: 0x0121).

(4) When screen displays

Warning of negative limit error:

Please check if any of the digital input DI1 ~ DI5 is set to negative limit (NL) and that DI is ON.

Corrective action:

 If not desire to set negative limit (NL) as one of the digital input, make sure no digital input is

set to negative limit (NL) among DI1 ~ DI5. (That is to say none of the parameters, P2-10 ~

P2-14 is set to 22.)

 If the function of negative limit (NL) is needed and this DI is set as normally close (function

code: 0x0022), please make sure this DI is always normally close. If not, please set this DI

as normally open (function code: 0x0122).

(5) When screen displays

Warning of positive limit error：

Please check if any of the digital input DI1 ~ DI5 is set to positive limit (PL) and that DI is ON.

Corrective action:

 If not desire to set positive limit (PL) as one of the digital input, make sure no digital input is

set to positive limit (PL) among DI1 ~ DI5 (That is to say none of the parameters, P2-10 ~

P2-14 is set to 23.)
