Trial Operation and Tuning ASDA-B2-F

5-16 September, 2015

Motor alternately accelerates

and decelerates

High-frequency

resonance?

It is suggested to reduce the

speed bandwidth.

Yes

Repeatedly set P2-47

to 1 for over 3 times

Set P2-47 to 1

Resonance

elimminated?

Set P2-47 to 0

Complete

P2-44 = 32 (max);

P2-46 = 32 (max)

Suppress resonance by P2-

44 and P2-46.

P2-47 is set to 0

Remain the value of P2-43

and P2-45

Motor alternately accelerates

and decelerates

High-frequency

resonance?

Yes

Note 2

Note 1

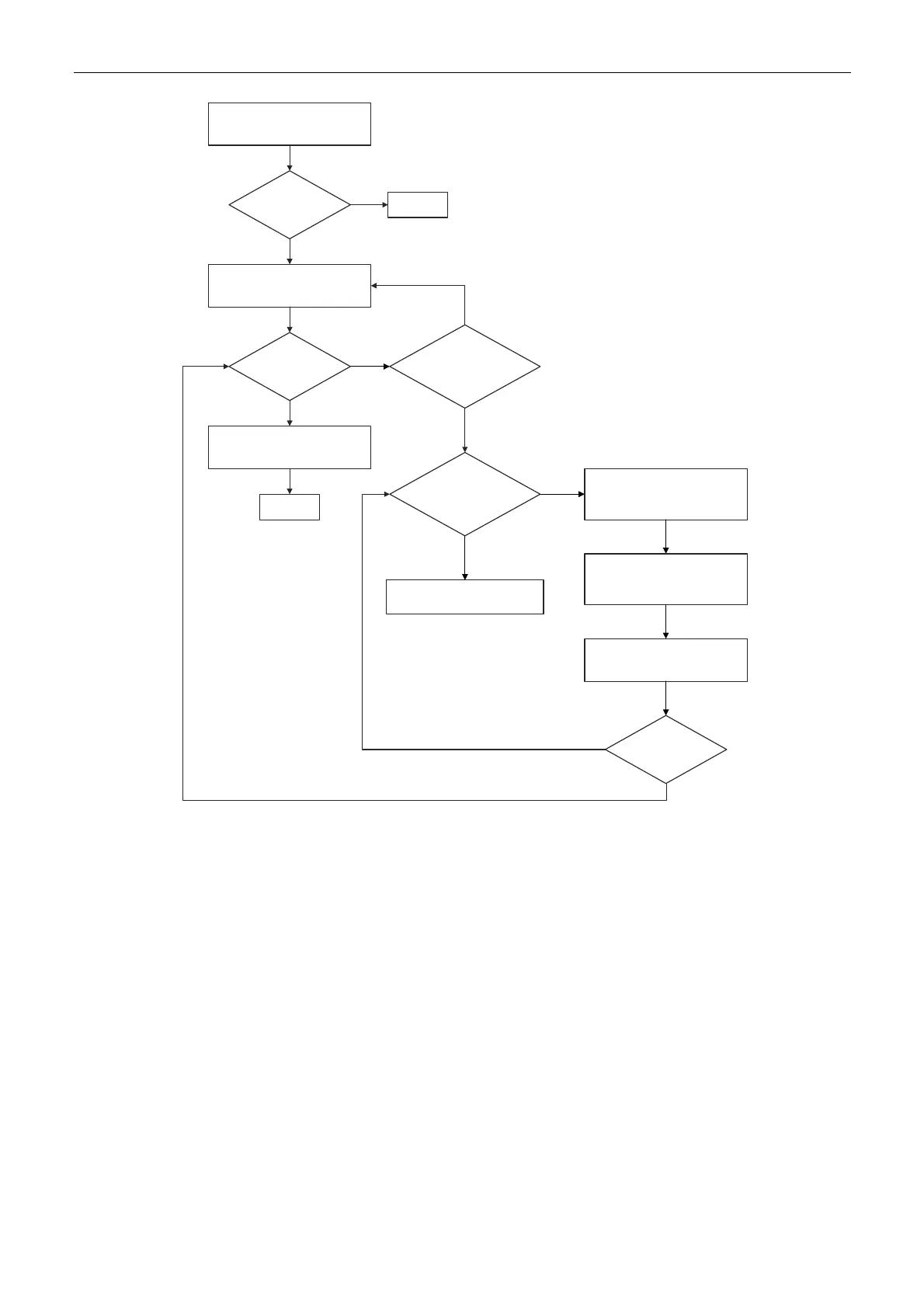

Figure 5-6 Procedure of auto suppressing the resonance

Note:

1. Resonance suppression is determined by parameter P2-44 and P2-46. If the value has been set to the

maximum (32 dB), and still cannot suppress the resonance, please reduce the speed bandwidth. After

setting P2-47, users can check the value of P2-44 and P2-46. If the value of P2-44 is not 0, it means the

resonance frequency exists in the system. Then, users can access P2-43 to see the resonance

frequency (Hz). When there is another resonance frequency, the information will be shown in P2-45 and

P2-46.

2. If resonance still exists, repeatedly set P2-47 to 1 for more than 3 times and manually adjust the setting of

resonance.

Delta ASDA-B2-F Series User Manual
