Delta ASDA-M Series User Manual

ASDA-M Chapter 8 Parameters
Revision December, 2014 8-191
Settings：
(Please refer to the definition of P5-88 U setting value 2)

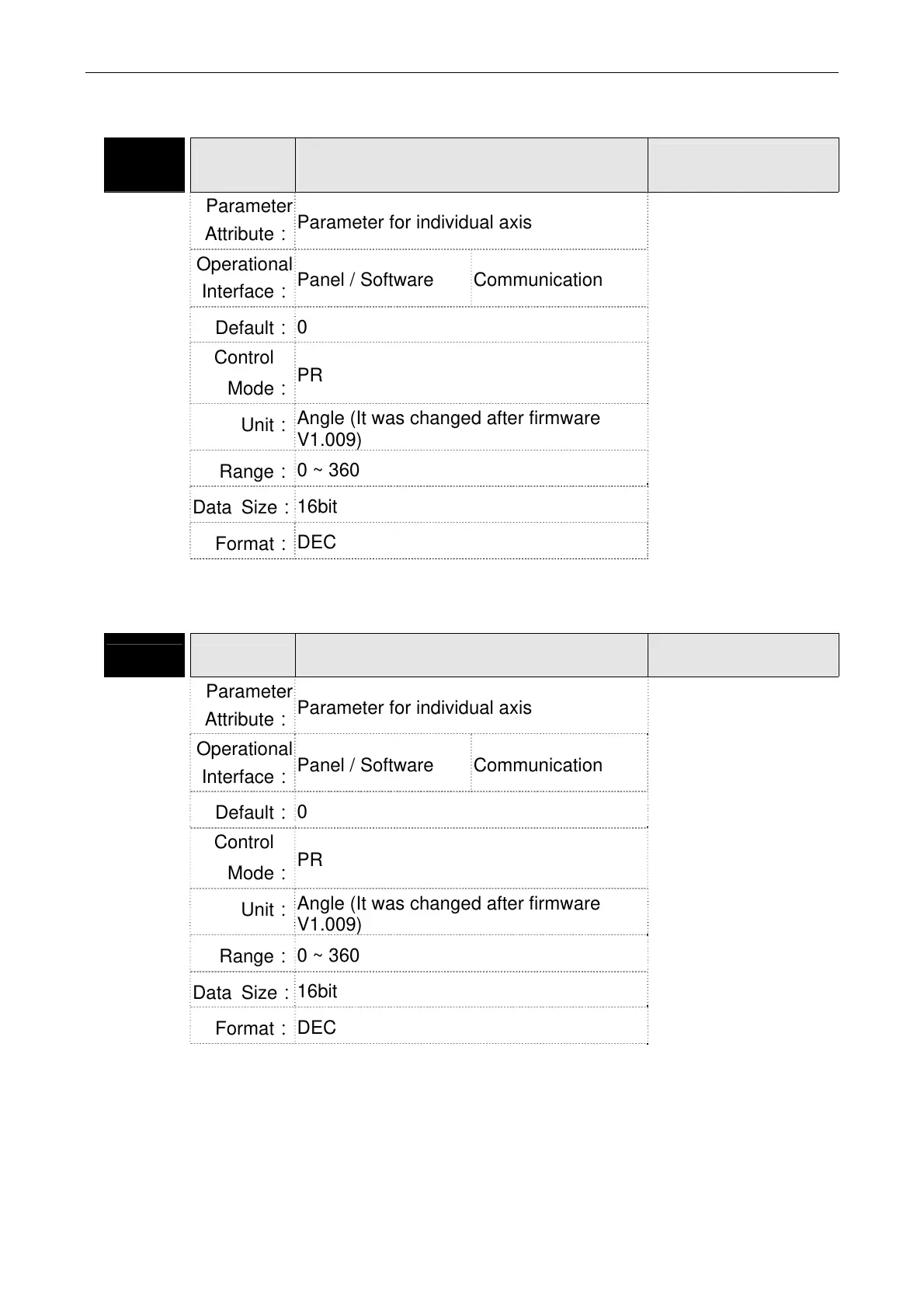

P5-90 CMAP
E-CAM: AREA No.＋The Point of DO
ON
Address: 05B4H
05B5H
Parameter
Attribute：
Parameter for individual axis
Related Section:
Section 7.11
Operational
Interface：
Panel / Software Communication
Default：
0
Control
Mode：
PR
Unit：
Angle (It was changed after firmware
V1.009)
Range：
0 ~ 360
Data Size：
16bit
Format：
DEC
Settings：
When E-cam is engaged, set the start angle of DO output (DO.
CAM_AREA).
P5-91 CMAN
E-CAM: AREA No. - The Point of DO
OFF
Address: 05B6H
05B7H
Parameter
Attribute：
Parameter for individual axis
Related Section:
Section 7.11
Operational
Interface：
Panel / Software Communication
Default：
0
Control
Mode：
PR
Unit：
Angle (It was changed after firmware
V1.009)
Range：
0 ~ 360
Data Size：
16bit
Format：
DEC
Settings：
When E-cam is engaged, set the end angle of DO output (DO.
CAM_AREA).
