Another exception is homing command. The difference between homing and position command
is that Cmd_E does not know where the target position is when homing. Only when reference
origin is found and coordinate system is built can Cmd_E’s position be known. That is, after
homing command is issued and before origin found and coordinate system built, Cmd_E =
Cmd_O. See Figure 1.42.
Cmd_E
Cmd_O
Fb_PUU
Err_PUU
Cmd_E
Cmd_O
Fb_PUU
Err_PUU
Cmd_E
Cmd_O
Fb_PUU
Err_PUU
Cmd_E
Cmd_O
Fb_PUU
Err_PUU
Cmd_E
Cmd_O
Fb_PUU
Err_PUU
Cmd_E = Origin
Before
command
accepted
After
command
accepted
Command
being
executed
Command
finished
Positioning
completely
Cmd_E = Origin

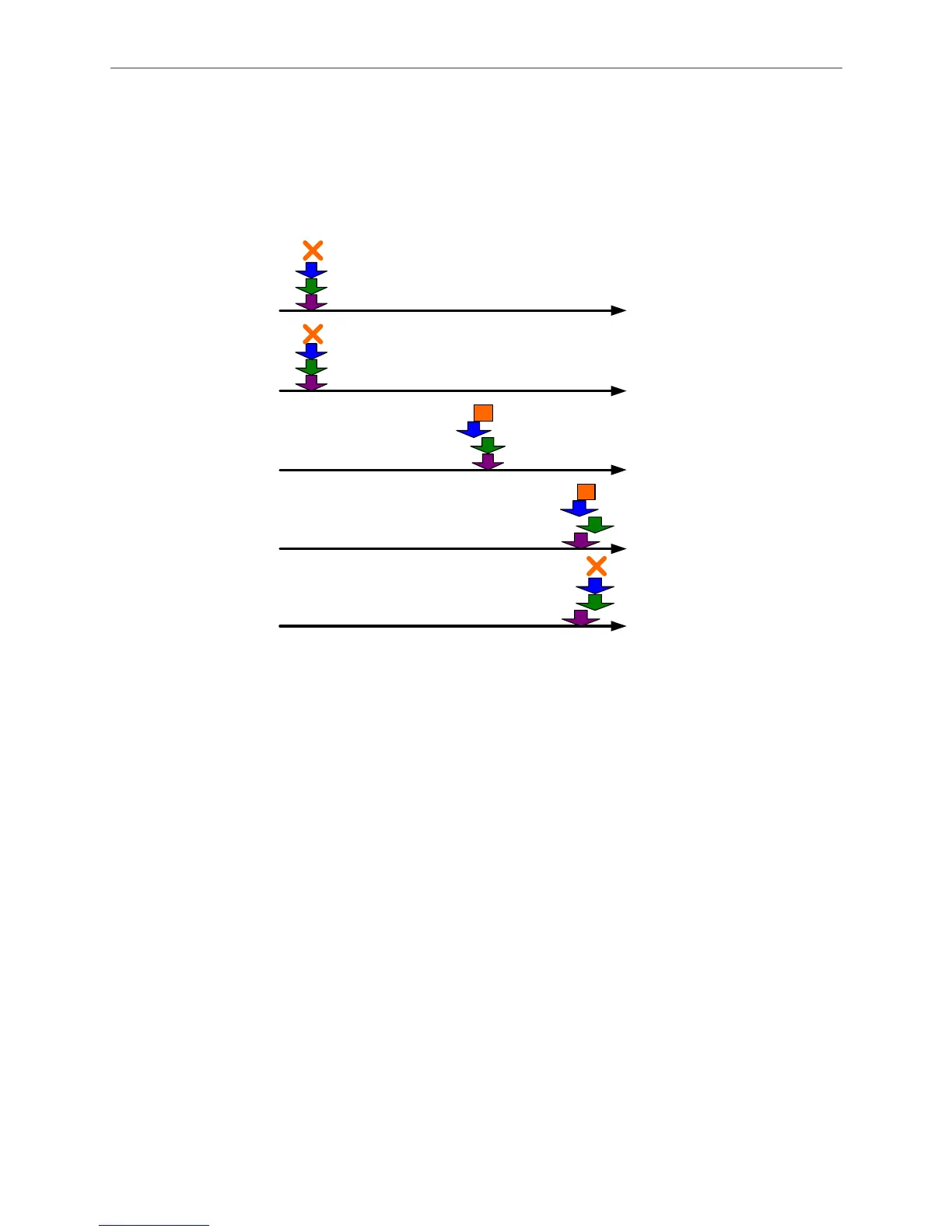

Figure 1.42 Example of Homing

Delta ASDA Series Specifications

General

Control Modes	Position, Speed, Torque
Communication Interface	RS-485, CANopen, Modbus
Feedback	Incremental encoder, Absolute encoder
Protection	Overvoltage, Undervoltage, Overcurrent, Overtemperature
Power Supply	Single-phase or three-phase AC
Output Power	50W to 15kW (depending on the specific model within the series)
