Delta DVP-PLC User Manual

7 Application Instructions API 50-99
DVP-PLC APPLICATION MANUAL
7-28
123
200
0.5ms
1ms

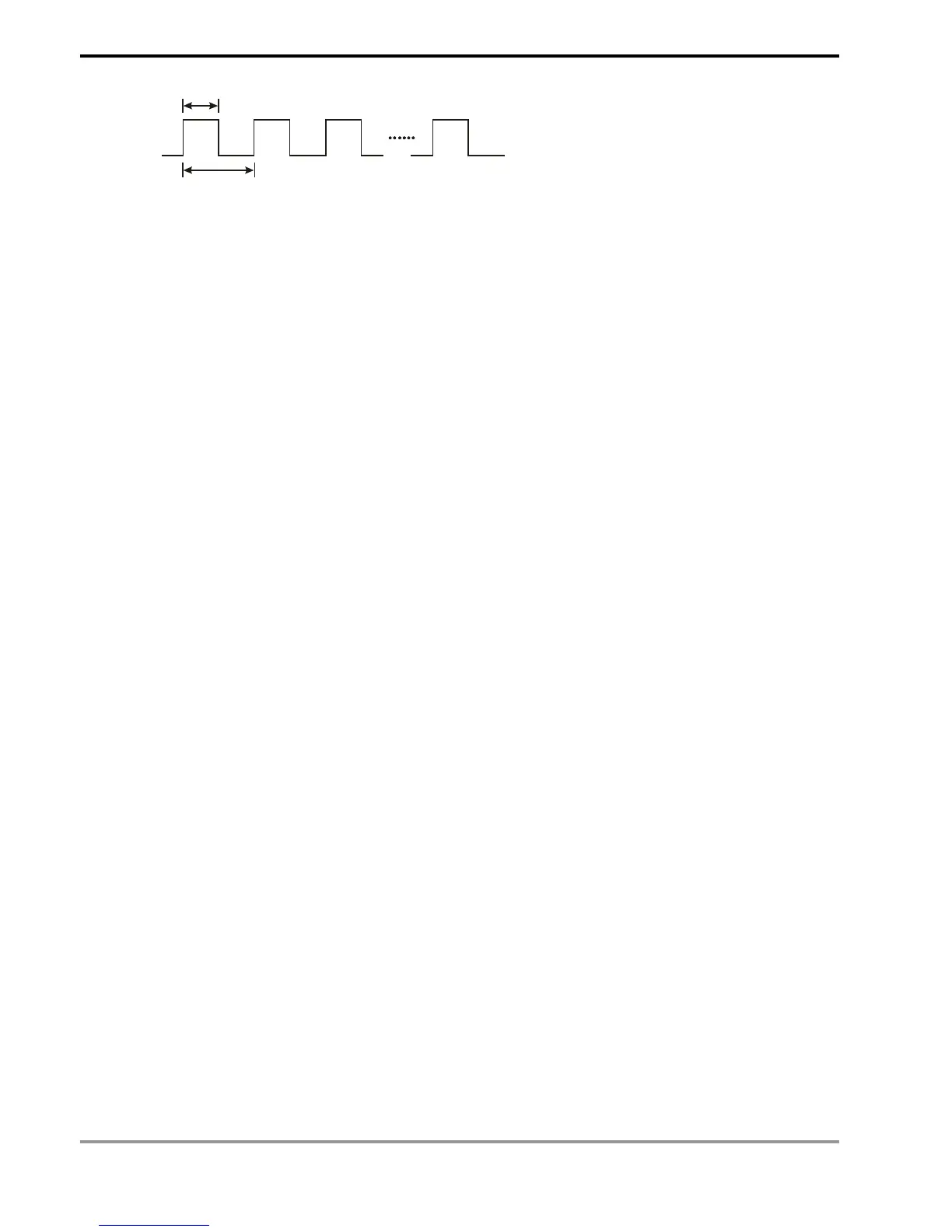

Y0 output
Remarks:
1. Flags and special registers for ES/EX/SS series MPU:
M1010: When On, Y0 output will be continuous with no limitation on the number of pulses. When Off, the
number of output pulses from Y0 will be decided by S
2
.
M1023: When On, Y1 output will be continuous with no limitation on the number of pulses. When Off, the
number of output pulses from Y1 will be decided by S
2
.
M1029: On when Y0 pulse output is completed.
M1030: On when Y1 pulse output is completed.
M1078: Y0 output pauses.
M1079: Y1 output pauses.
D1030: Low word of the current number of output pulses from Y0
D1031: High word of the current number of output pulses from Y0
D1032: Low word of the current number of output pulses from Y1
D1033: High word of the current number of output pulses from Y1
2. Flags and special registers for SA/SX/SC series MPU:
M1010: (SA/SX/SC) When On, Y0 output will be continuous with no limitation on the number of pulses.
When Off, the number of output pulses from Y0 will be decided by S
2
.
M1023: (SA/SX/SC) When On, Y1 output will be continuous with no limitation on the number of pulses.
When Off, the number of output pulses from Y1 will be decided by S
2
.
M1029: (SA/SX/SC) On when Y0 pulse output is completed.
M1030: (SA/SX/SC) On when Y1 pulse output is completed.
M1078: (SA/SX/SC) Y0 output pauses.
M1079: (SA/SX/SC) Y1 output pauses.
M1102: (SC) On when Y10 pulse output is completed.
M1103: (SC) On when Y11 pulse output is completed.
D1030: (SA/SX/SC) Low word of the current number of output pulses from Y0
D1031: (SA/SX/SC) High word of the current number of output pulses from Y0
D1032: (SA/SX/SC) Low word of the current number of output pulses from Y1
D1033: (SA/SX/SC) High word of the current number of output pulses from Y1
D1348: (SC) Low word of the current number of output pulses from Y10
D1349: (SC) High word of the current number of output pulses from Y10
D1350: (SC) Low word of the current number of output pulses from Y11
D1351: (SC) High word of the current number of output pulses from Y11

Delta DVP-PLC Specifications

General

Manufacturer	Delta Electronics
Model	DVP-PLC
Category	Controller
Humidity	5% to 95% RH, non-condensing
Programming Language	Ladder Diagram (LD), Instruction List (IL), Sequential Function Chart (SFC)
CPU Type	Various, depending on the specific model within the DVP series (e.g., ES2, EX2, SX2, SA2, EH3, etc.)
Operating Temperature	Typically 0°C to 55°C (32°F to 131°F)
Storage Temperature	Typically -25°C to 70°C (-13°F to 158°F)
