9 Electrical CAM
DVP-PM Application Manual
9-30
2: SingleHypot
3: Cycloid

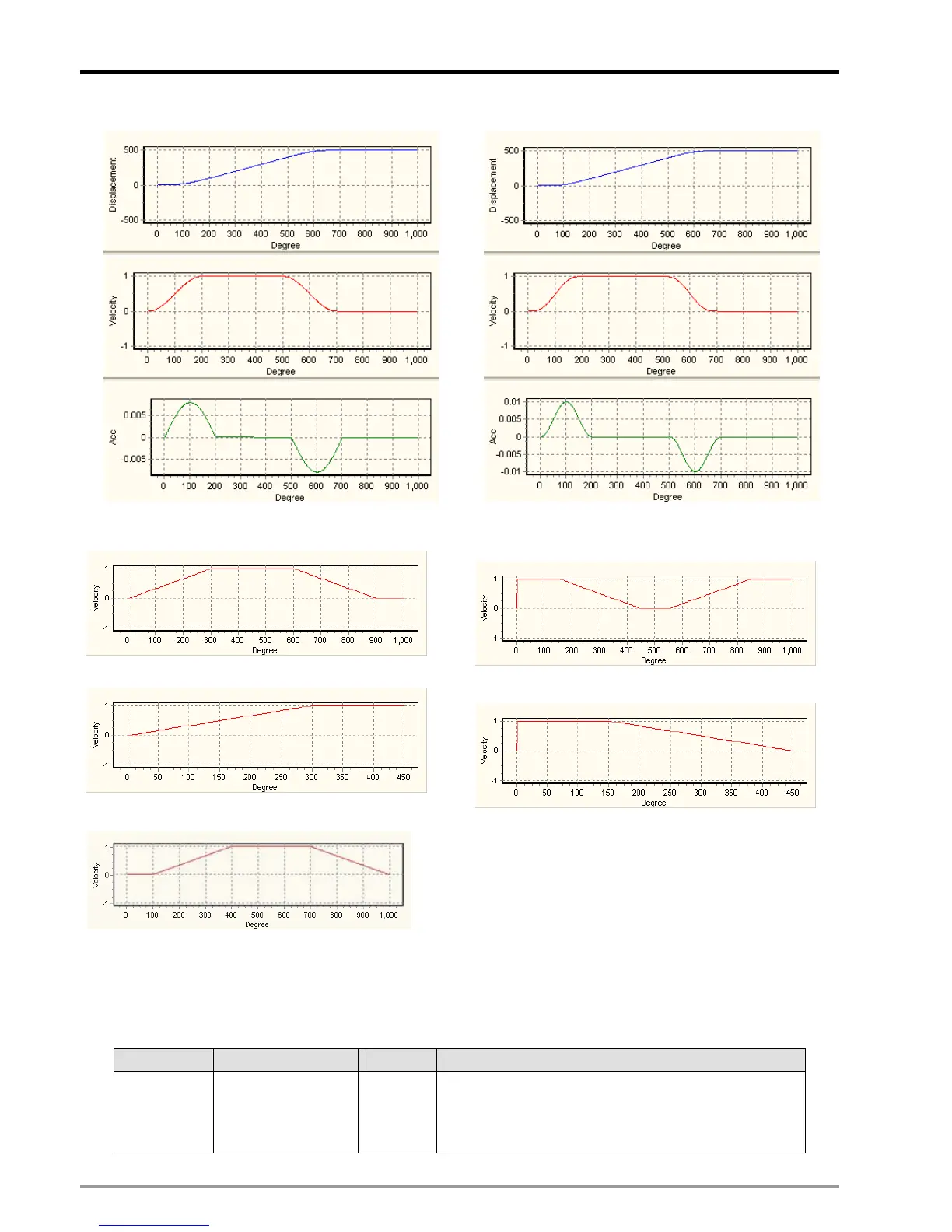

CAM curves
0: leftCAM
1: midCAMall
2: midCAMbegin
3: midCAMend
5: right CAM
For detailed explanation of creating rotary cut E-CAM curves, please refer to 9.4.2.3.
The rotary cut E-CAM data can be used for general rotary cut applications. However, for think material cutting
application, the cutting angle and the cutter speed should be additionally considered on setting E-CAM.
DVP-20PM provides parameters for thick material cutting application as below:
Parameteres Data Format Explanations
P1
Thick-material
cutting format
Integer
Thick-material cutting format setting:
0:
divide non-sync area (when pulses can be equally
divided by the drop times of cutter)
1: specify non-sync area (when pulses can NOT be
