9 Electrical CAM
DVP-PM Application Manual
9-44
CAM curve 0 0 0
CAM curve setting
Only single data
real-time modification
is applicable
Borrow the previous
E-CAM data setting
Borrow the previous
E-CAM data setting

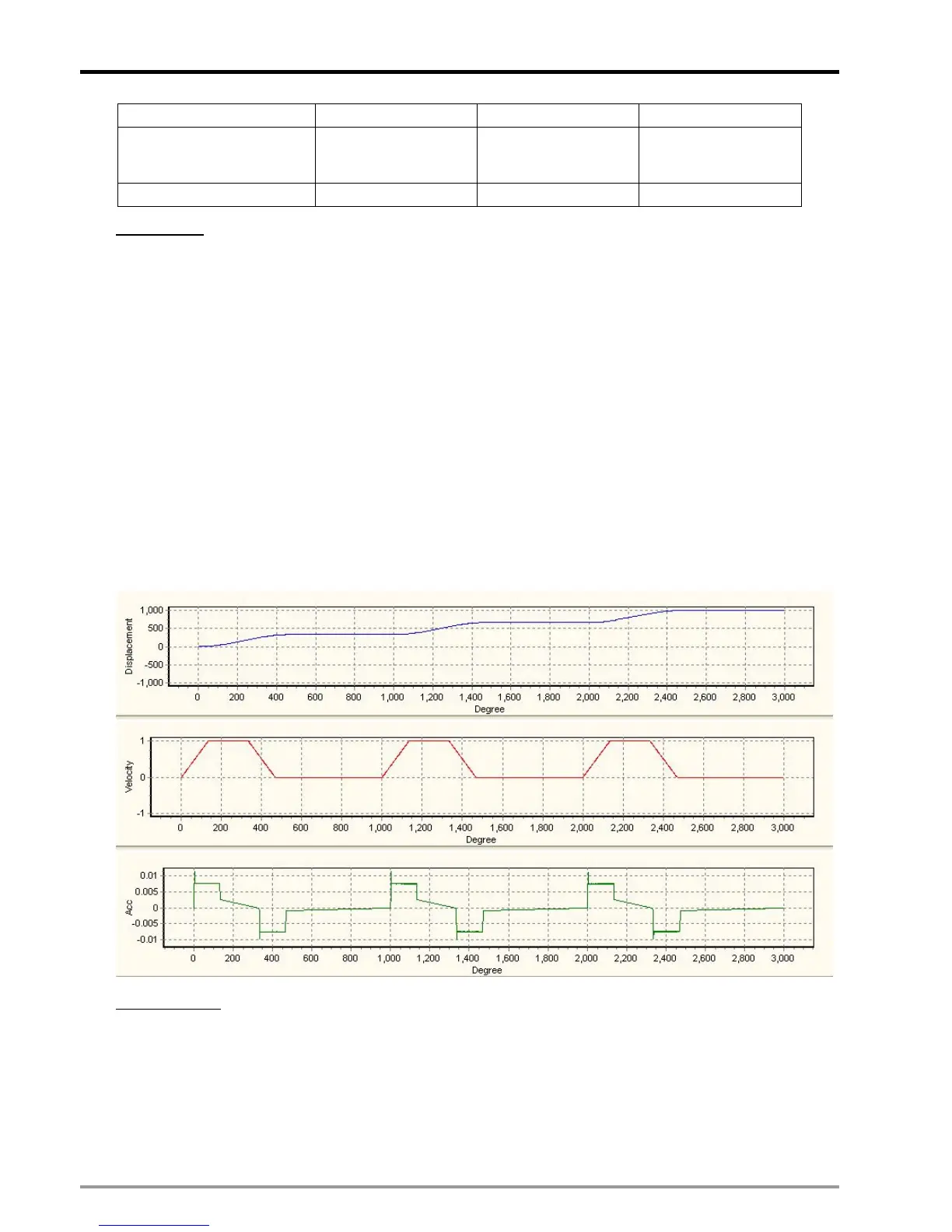

Results 0 0 0
Control Steps:
Step 1: Add 2 sets of E-CAM charts and set the resolution as 900.
Step 2: Download the below program in DVP-20PM and execute.
Step 3: Set M100 to write the parameters for rotary cut E-CAM into D100~D112 and CR#10000 into D0. In
addition, write the data in D100~D112 into special register CR#10000 to generate the 1
st
rotary cut E-CAM
curve
Step 4: Set M101 to change the data in D111. Write the modified data into special register CR#10000 to
generate the 2
nd
rotary cut E-CAM curve.
Step 5: Set M102 to change the data in D102 and D111. Write the modified data into special register
CR#10000 to generate the 3
rd
rotary cut E-CAM curve.
Step 6: Stop the DVP-PM and upload the program.
Step 7: Monitor the uploaded E-CAM Chart-0, which is the generated multi-cutter E-CAM curves.
Ladder Diagram
:
To Next Page
