9 Electrical CAM
DVP-PM Application Manual
9-49
Step 3: Set M0 to write the parameters for think-material cutting E-CAM into D100~D116 and CR#10000 into
D0. In addition, write the data in D100~D116 into special register CR#10000 to generate the thick-material
cutting E-CAM curve
Step 4: Stop the DVP-PM and upload the program.

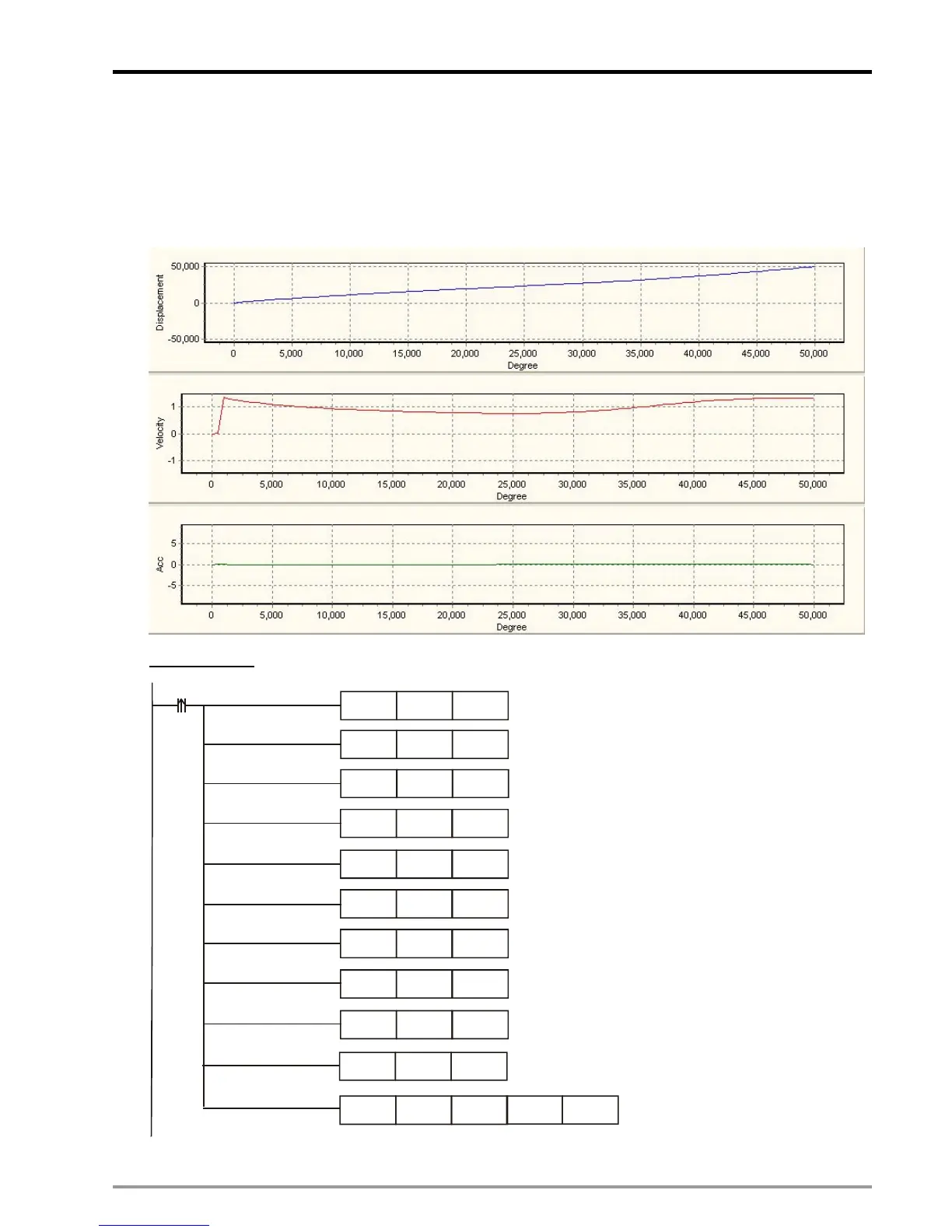

Step 5: Monitor the uploaded E-CAM Chart-0, which is the generated thick-material cutting E-CAM curves.
Ladder Diagram
:
DMOV
K200000
M0
DMOV
K1
D100
DMOV
K75360
D108
DMOV K10000 D0
DMOV K200000 D102
DMOV K53380 D104
Generate the thick-material
cutting E-CAM
DMOV
K210
D110
DMOV
K250 D112
DTO K100 D0 D100 K8
D106
E-CAM format of thick-material cutting
Pulses per round of Master
Length per round of Master
Pulses per round of Slave
Length per round of Slave
Sync start angle of Slave
Sync end angle of Slave
DMOV
K13345
D114
Length of cutting process on Master
DMOV
K4
D116
Number of cutters on Slave
To Next Page
