9 Electrical CAM
DVP-PM Application Manual
9-70
Æ Æ

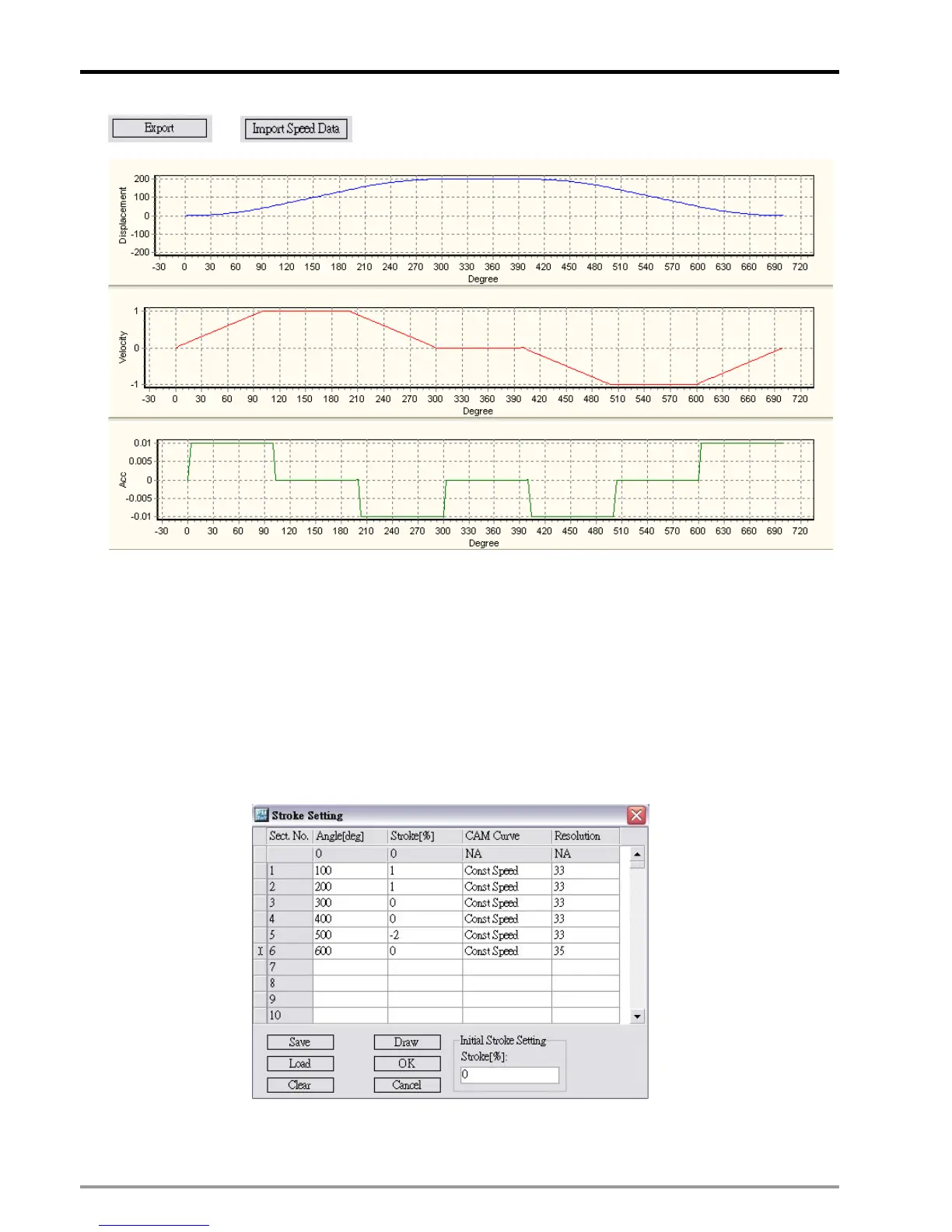

According to the above E-CAM Chart, we can calculate the pulses per round of Slave (Slavemax=400) by the
square measure of velocity data.
[(1*100/2+1*(200-100)+1*(300-200)/2)] * 2 = 400
In addition, for pulses per round of Master you can apply input /output magnification setting at 9.3.1.7 in this
chapter to obtain the proper set value. Different from the setting of rotary cut, lower/higher bound of E-CAM
synchronized output section should be specified. Please refer to point 4 of 9.3.1.3 in this chapter. Also, to
save the time of operation cycle you can set a higher speed for the process when cutter returns to position 4.
See below example.
In this example, modify the angle of position 4 from 700 to 600 degrees and set the stroke at section 5 as -2,
To Next Page
