Delta ME300 Series User Manual

Chapter 7 Optional AccessoriesME300
7-56

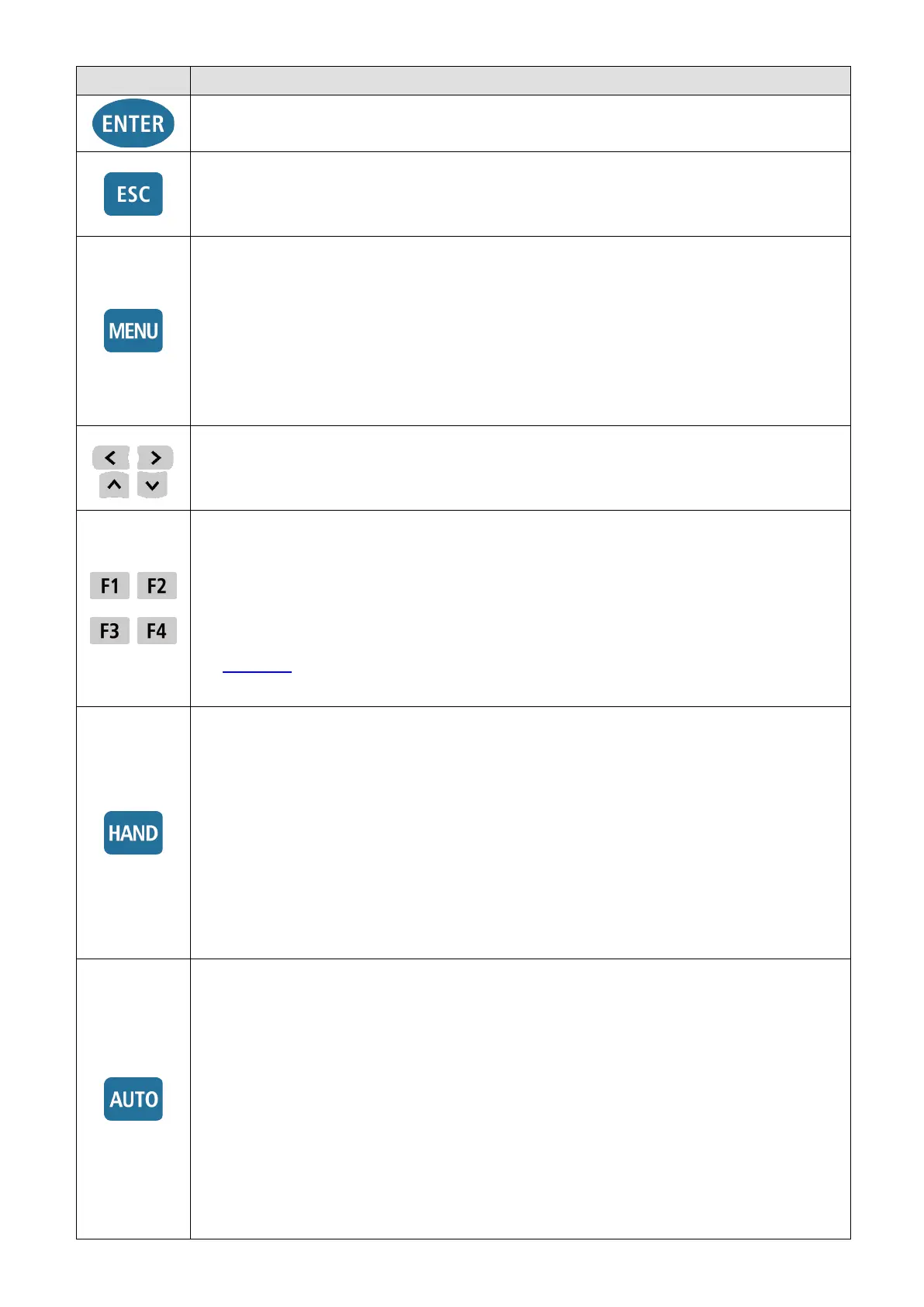

Key
Descriptions
ENTER Key
Goes to the next menu level. If at the last level, press ENTER to execute the command.
ESC Key
Leaves the current menu and returns to the previous menu; also functions as a return key or
cancel key in a sub-menu.
Returns to the main menu.
Menu commands:
1. Parameter Setup
2. Quick Start
3. Application Selection List
4. Changed List
5. Copy Parameter
6. Fault Record
7. Language Setup
8. Time Setup
9. Keypad Locked
10. PLC Function
11. Copy PLC
12. Display Setup
13. Start-up Menu
14. Main Page
15. PC Link
16. Start Wizard
 KPC-CE01 only supports function 1, 5, 9 and 10.

ME300 models do not support function 2, 8, 10, 11 and 16.
Direction: Left / Right / Up / Down
1. In the numeric value setting mode, moves the cursor and changes the numeric value.
2. In the menu / text selection mode, selects an item.
Function Key
1. The functions keys have defaults and can also be user-defined. The defaults for F1 and F4
work with the function list below.
For example, F1 is the JOG function, F4 is a speed setting
key for adding / deleting user-defined parameters.
2. Other functions must be defined using TPEditor.
Download
TPEditor software at Delta website. Select TPEditor version 1.60 or above.
Refer to the installation instruction for TPEditor in Section 7-13-3.
HAND Key
1. Use this key to select HAND mode. In this mode, the drive’
s parameter settings for frequency
command source is Pr.00-30, and that for operation command source is Pr.00-31.
2. Press the HAND key at STOP, then the setting switches to the HAND frequency source
and HAND operation source.
3. Press HAND key at RUN, and it stops the AC motor drive first (displays AHSP warning),
and switches to HAND frequency source and HAND operation source.
4. Successful mode switching for KPC-CE01, “HAND” LED will be on; for KPC-CC01, it
displays HAND mode on the screen.
AUTO Key
1. The default of the drive is AUTO mode.
2. Use this key to select AUTO mode. In this mode, the drive’s parameter settings for
frequency command source is Pr.00-20, and that for operation command is Pr.00-21.
3.
Press the AUTO key at STOP, then the setting switches to the AUTO frequency source and
AUTO operation source.
4. Press AUTO key at RUN, and it stops the AC motor drive first (displays AHSP warning),
and switches to AUTO frequency source and AUTO operation source.
5. Successful mode switching for KPC-CE01, “AUTO” LED will be on; for KPC-CC01, it
displays AUTO mode on the screen.

Delta ME300 Series Specifications

General

Power Rating	0.4 kW ~ 110 kW
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
Communication	RS-485
Storage Temperature	-20-60°C
Dimensions	Varies by model
Weight	Varies by model
Input Voltage	3-phase 220VAC
Humidity	90% RH, non-condensing
