Chapter 7 Optional AccessoriesME300
7-57
NOTE: The defaults for the frequency command and operation command source of HAND / AUTO mode are
both from the keypad.

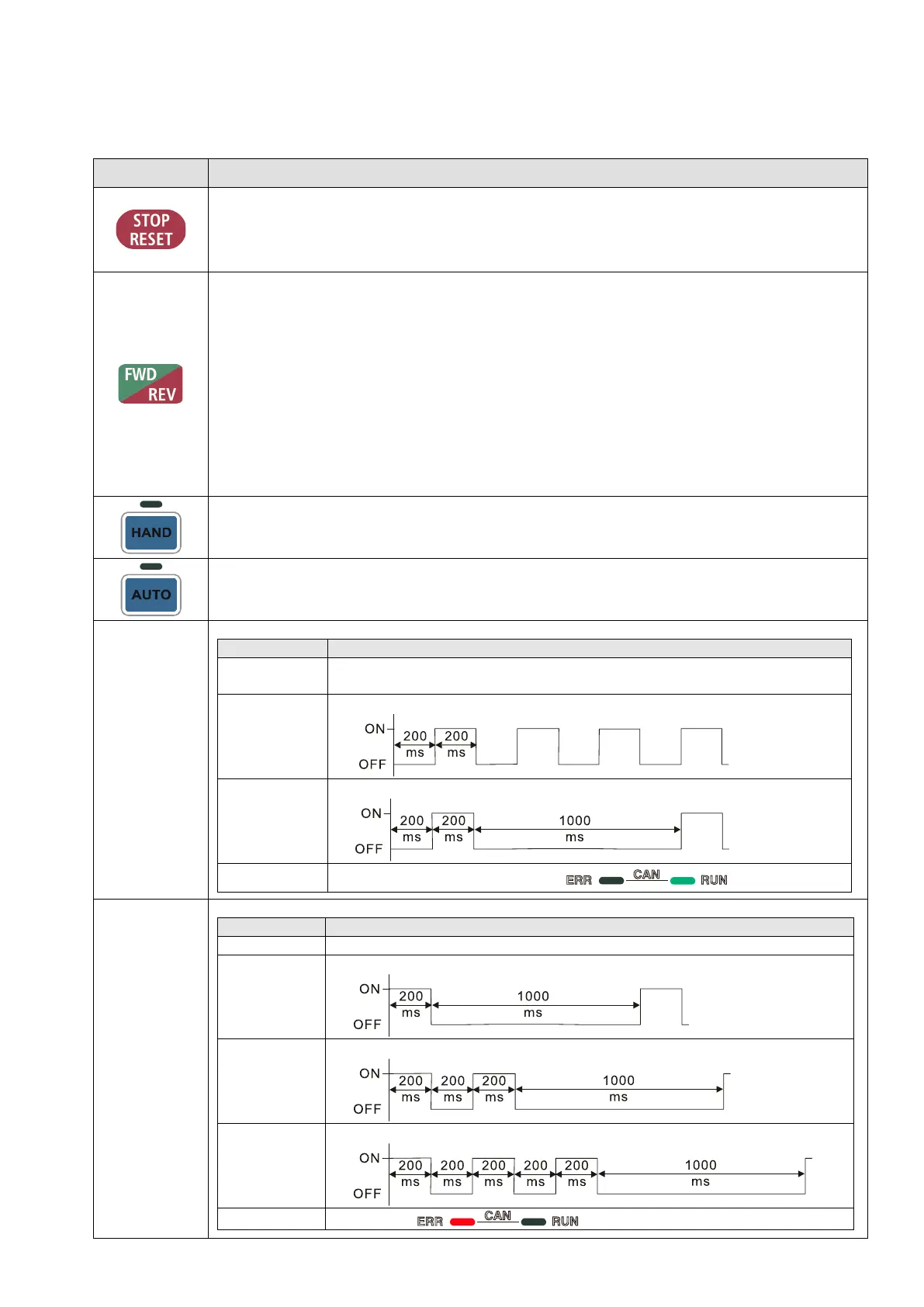

LED Functions Descriptions
LED Descriptions
Steady ON: STOP indicator for the AC motor drive.
Blinking: the drive is in standby.
Steady OFF: the drive does not execute the STOPcommand.
Operation Direction LED
1. Green light: the drive is running forward.
2. Red light: the drive is running backward.
3. Flashing: the drive is changing direction.
Operation Direction LED under Torque Mode
1. Green light: when the torque command ≥ 0, and the motor is running forward.
2. Red light: when the torque command < 0, and the motor is running backward.
3. Flashing: when the torque command < 0, and the motor is running forward.
(Only KPC-CE01 supports this function)
Steady ON: In HAND/ LOC mode; Steady OFF: In AUTO/ REM mode
(Only KPC-CE01 supports this function )
Steady ON: In AUTO/ REM mode; Steady OFF: In HAND/ LOC mode
CANopen
RUN
RUN LED:
LED status
Condition/ State
OFF
CANopen at initial
No LED
Blinking
CANopen at pre-operation
Single flash
CANopen at stop
ON CANopen at operation status
CANopen
ERR
ERR LED:
LED status
Condition/ State
OFF
No Error
Single flash
One message fail
Double flash
Node guarding failure or heartbeat message failure
Triple flash
Synchronization failure
ON
Bus off
