Chapter 7 Optional AccessoriesME300
Button Type: specifies the buttons’ functions.
Page Jump and Constant Setting are the only functions currently supported.

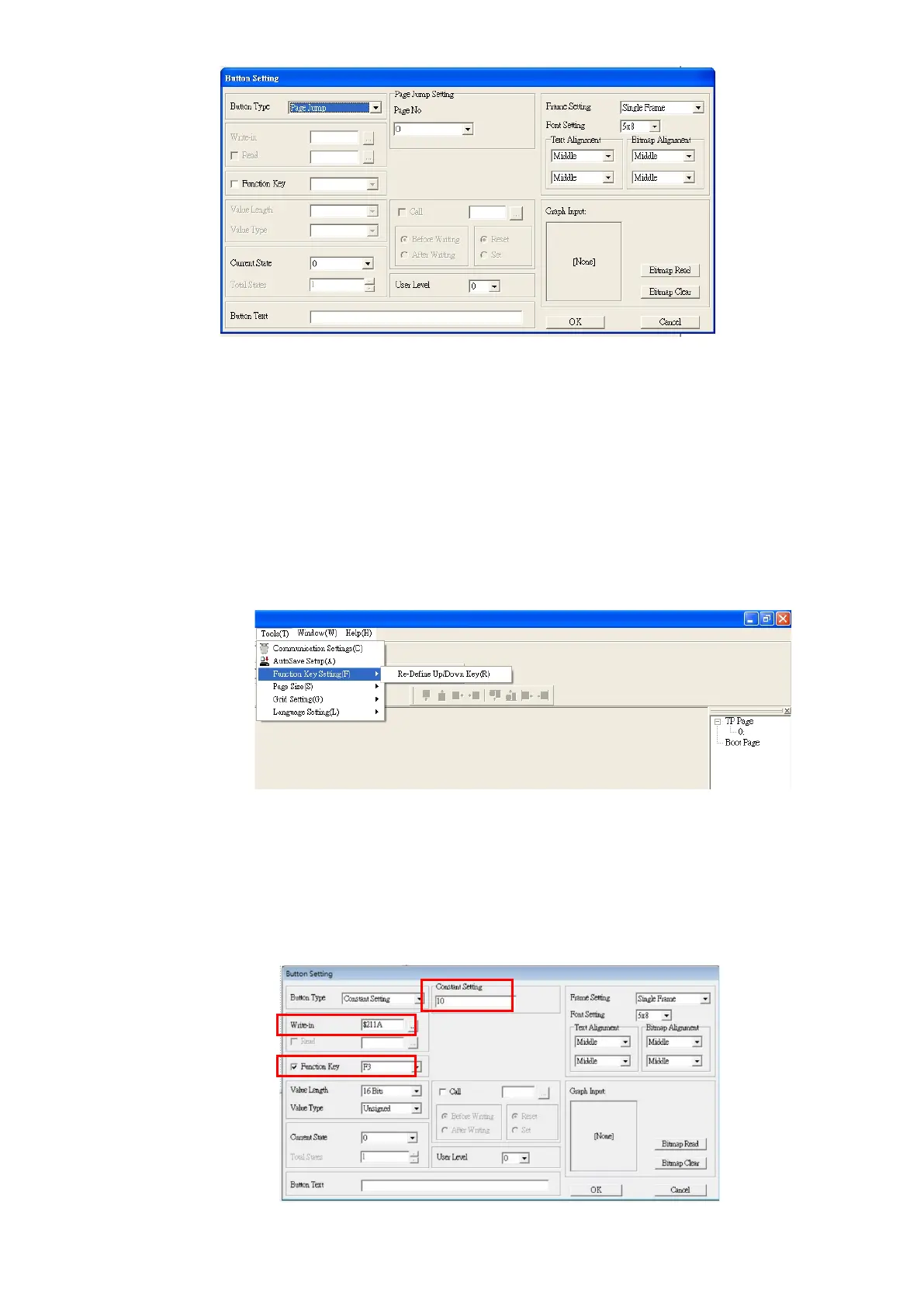

A. Page Jump Setting
Page Jump Setting: in the Button Type list, choose Page Jump to show the Page Jump
Setting.
Function Key: specifies the functions for the following keys on the KPC-CC02 keypad: F1,
F2, F3, F4, Up, Down, Left and Right. Note that the Up and Down keys are locked by TPEditor.
You cannot program these two keys. If you want to program Up and Down keys, on the Tool
menu, click Function Key Setting, and then click Re-Define Up/Down Key.
Button Text: specifies the text that appears on a button. For example, when you enter Next
Page for the button text, that text appears on the button.
B. Constant Setting
This function specifies the memory address’ values for the VFD or PLC. When you press the
Function Key, it writes a value to the memory address specified by the value for Constant Setting.
You can use this function to initialize a variable.
