Delta ME300 Series User Manual

Chapter 12 Description of Parameter Settings
ME300
12.1-02-2

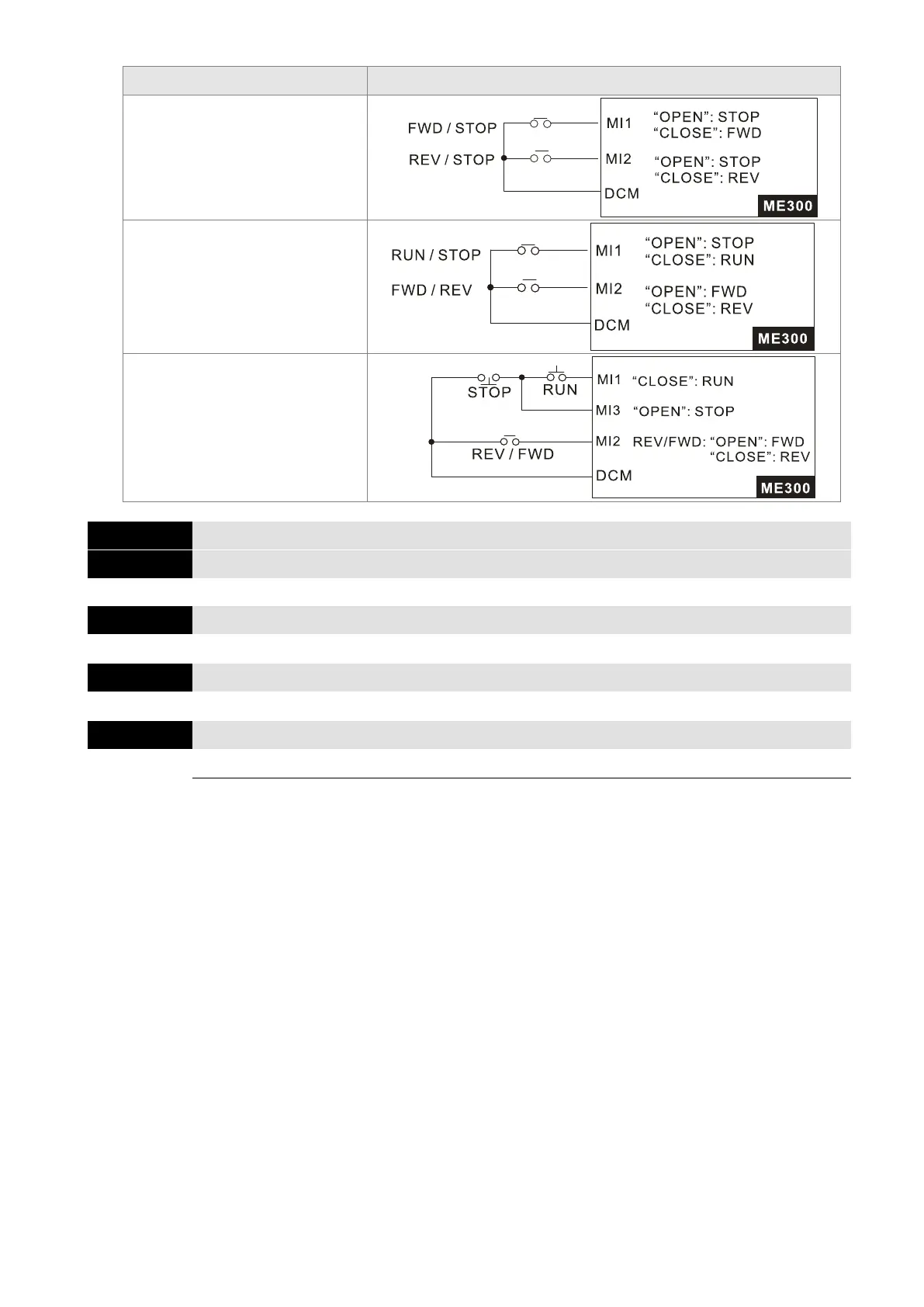

Pr.02-00 External Terminal Control Circuits
Setting value: 4
Two-wire
Quick Start
Setting value: 5
Two-wire
Quick Start
Setting value: 6
Three-wire
Quick Start
02-01
Multi-function Input Command 1 (MI1)
02-02
Multi-function Input Command 2 (MI2)
Default: 0
02-03
Multi-function Input Command 3 (MI3)
Default: 1
02-04
Multi-function Input Command 4 (MI4)
Default: 2
02-05
Multi-function Input Command 5 (MI5)
Default: 3
Settings 0: No function
1: Multi-step speed command 1
2: Multi-step speed command 2
3: Multi-step speed command 3
4: Multi-step speed command 4
5: Reset
6: JOG operation (by KPC-CC01 or external control)
7: Acceleration / deceleration speed inhibit
8: The first and second acceleration / deceleration time selection
9: The third and fourth acceleration / deceleration time selection
10: External Fault (EF) input (Pr.07-20)
11: B.B. input from external (Base Block)
12: Output stop
13: Cancel the setting for auto-acceleration / auto-deceleration time
15: Rotating speed command from AVI
18: Forced to stop (Pr.07-20)

Delta ME300 Series Specifications

General

Power Rating	0.4 kW ~ 110 kW
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
Communication	RS-485
Storage Temperature	-20-60°C
Dimensions	Varies by model
Weight	Varies by model
Input Voltage	3-phase 220VAC
Humidity	90% RH, non-condensing
