Chapter 12 Description of Parameter Settings
ME300
12.1-02-5

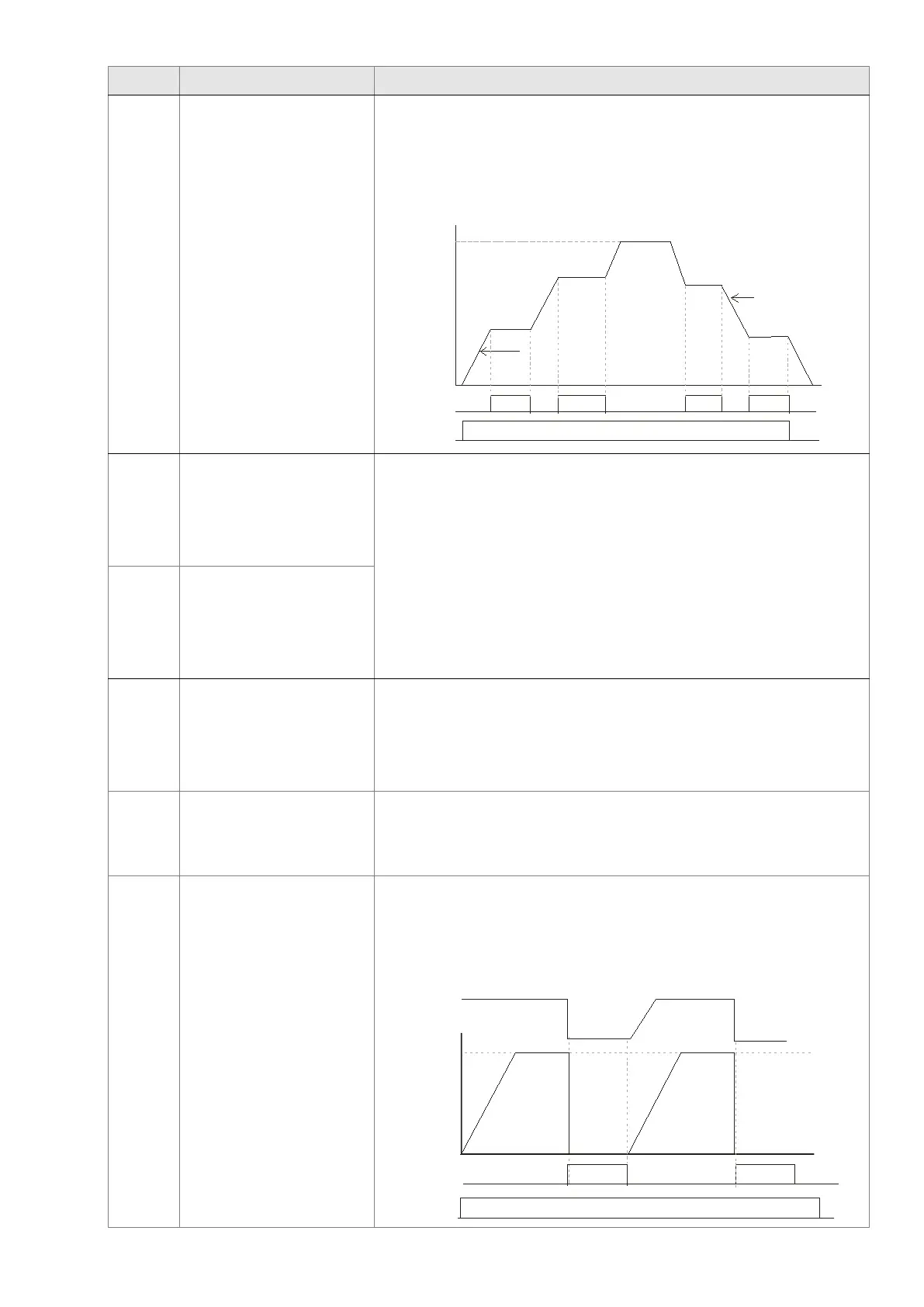

Settings Functions Descriptions
7
Acceleration /
deceleration speed
inhibit
When you enable this function, the drive stops acceleration
or
deceleration immediately. After you disable
this function, the AC
motor drive starts to accelerate or decelerate
from the inhibit
point.
ON
ON
ON
ON
ON
OFF
MIx
-GND
Fr eque ncy
Operation
command
Time
Setti ng
fr eque ncy
Actual operation frequency
Actual operation
fr eque ncy
Accel. inhibit
area
Accel. inhibit
area
Decel. inhibit
area
Decel. inhibit
area
8
The first, second
acceleration /
deceleration time
selection
You can select the acceleration and deceleration time of the
drive with this function, or from the digital status of the
terminals; there are four acceleration and deceleration
selections.
9
The third, fourth
acceleration /
deceleration time
selection
10
EF input
(EF: External Fault)
For external fault input. The drive decelerates
according to the
Pr.07-20 setting, and the keypad shows “EF” (it shows the
fault
record when an external fault occurs). The drive keeps
running
until the fault is cleared (terminal status restored) after RESET.
11
B.B. input from external
(B.B.: Base Block)
ON: the output of the drive stops immediately. The motor is
in
free run and the keypad displays the B.B. signal. Refer to Pr.07-
08 for details.
12
Output stop
(output pause)
When the switch is ON, output of the drive stops immediately and
the motor is in free run status. The drive is in output waiting status
until
the switch is turned to OFF, and then the drive restarts
and
runs to the current setting frequency.
ON
MI -GNDx
ON
OFF
ON
Voltage
Fr eque ncy
Time
Operation
command
Setting
fr eque ncy
